3.3 Device view
59.1
(2.33)
45.8
(1.8)
min. 8 (0.31)–
max. 50 (1.97)
91.8
(3.61)
5.9
(0.23)
6.5 (0.26)
50
(1.97)
23.9
(0.94)
0.5
(0.02)
74.1
(2.92)
63.1
(2.48)
76.6
(3.02)
108 (4.25)
10.8
(0.43)
1 2
3
4
5
6
7
8
9
ä
å
æ
ç
ã
ß
à
á
â
96.4
(3.8)

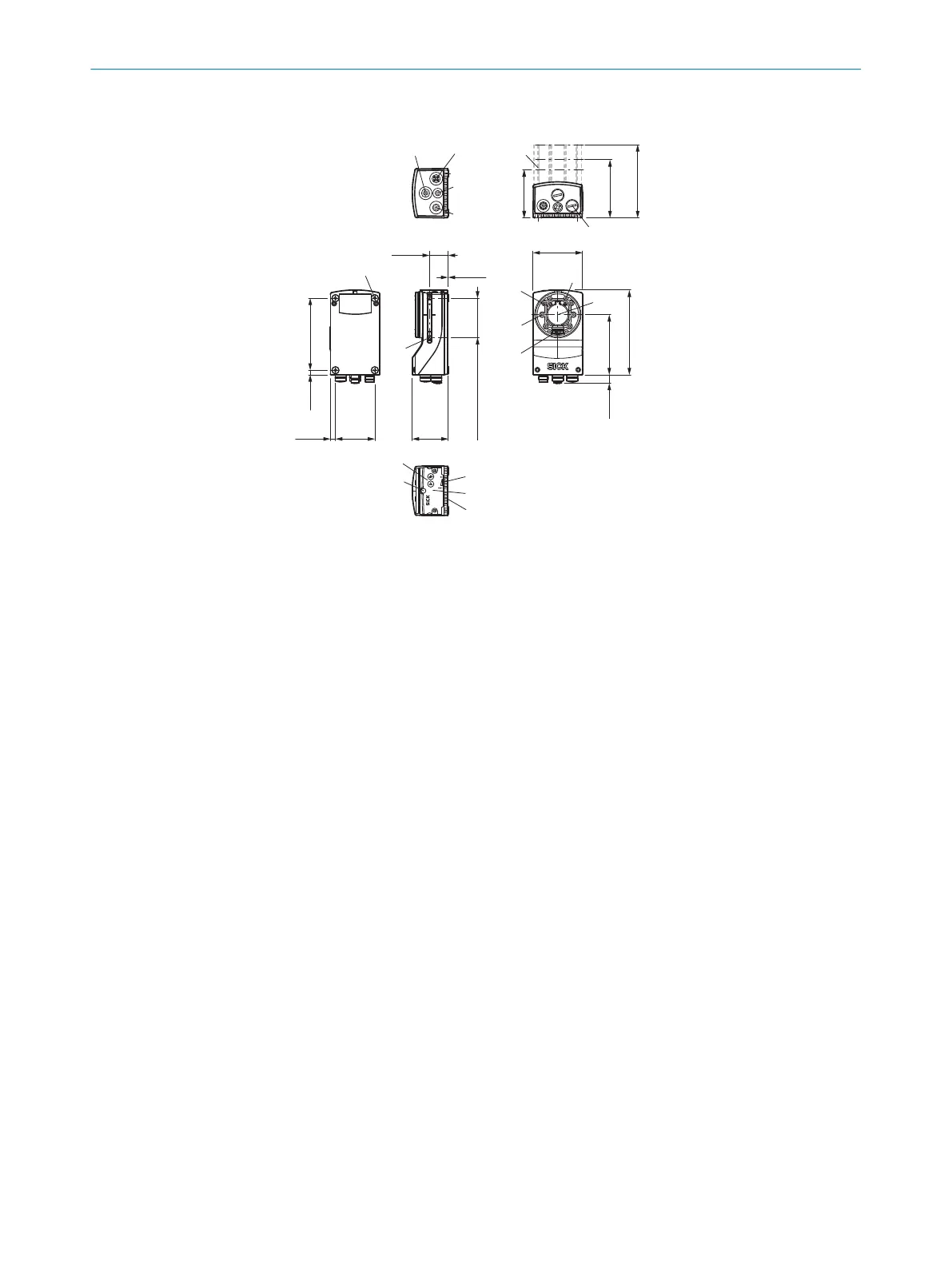

Figure 2: structure and device dimensions, unit: mm (inch), decimal separator: period
1
“External light” connection (external illumination unit, female connector, M12, 4-pin, A-
coded)
2
“Ethernet” connection (Gigabit Ethernet, female connector, M12, 8-pin, X-coded)
3
“USB” connection (female connector, type M8, 4-pin), for temporary use as a service
interface only
4
“Power/Serial Data/CAN/I/O” connection (male connector, M12, 17-pin, A-coded)
5
Optics protective hood (length: 22.7 mm, 37.7 mm or 60 mm)
6
4 protective caps for sealing off the electrical connections as required for enclosure rating
IP67 (delivery condition)
7
4 tapped blind holes, M5, 5.5 mm deep for mounting the device
8
2 sliding nuts, M5, 5.5 mm deep, as an alternative method of mounting the device
9
Connection for an integrable illumination unit (VI55I ring illumination unit)
ß
2 laser alignment aids
à
S-mount or C-mount optics module
á
4 blind tapped holes, 2.5 mm for mounting the spacers for the integrable illumination
(VI55I ring illumination unit)
â
Optical axis and center of the image sensor
ã
Basic device: manual focus screw for an S-mount lens, accessible via the round opening
in the housing cover. To secure the focus setting, cover the round opening with a self-
adhesive label.
Complete device: The opening is already covered by a label.
ä
2 function keys
å
5 bar graph LEDs
æ
Hinged cover on the top side of the device, access to the microSD memory card and the
manual focus screw (S-mount)
ç
5 status LEDs (2 levels)
3 PRODUCT DESCRIPTION
