SICK LMS100 User Manual

Operating Instructions
LMS1xx Laser Measurement Sensors
Product description
8012471/ZN27/2017-06-09 © SICK AG · Germany · All rights reserved · Subject to change without notice 29
Chapter 3
All LMS1xx variants:

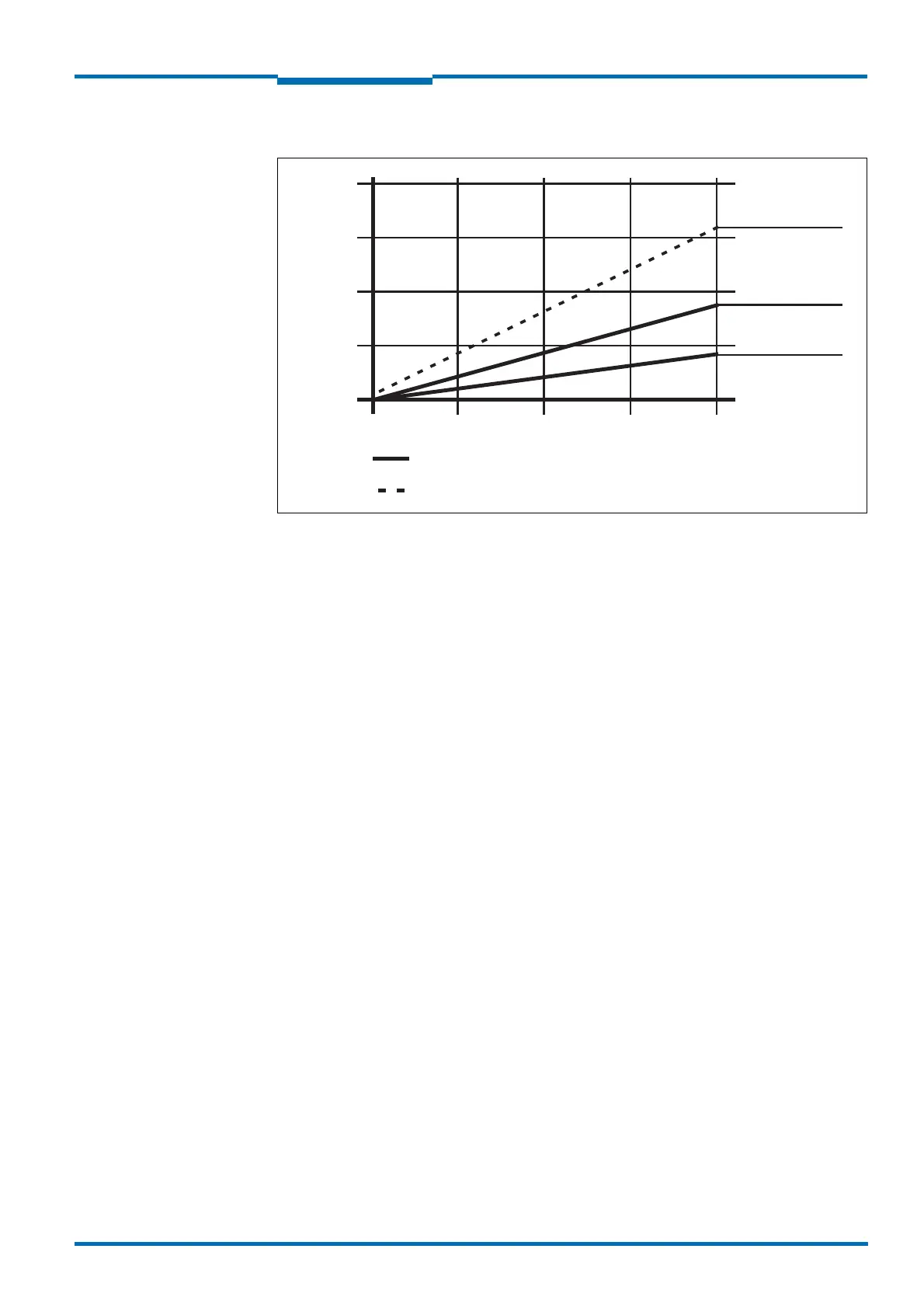

Fig. 16: All LMS1xx variants: Beam diameter and distance between measured points at 0 to 20 m
Example for angular resolution 0.25° in Fig. 16
Distance 10 m
Distance intersection point 10 m gives a distance between the measured points of approx.
40 mm.
Distance intersection point 10 m with the characteristic curve for the beam diameter gives
a beam size of approx. 170 mm.
Example for angular resolution 0.50° in Fig. 16
Distance 20 m
Distance intersection point 20 m gives a distance between the measured points of approx.
180 mm.
Distance intersection point 20 m with the characteristic curve for beam diameter gives a
beam size of approx. 310 mm.
Beam diameter
0
Distance [m]
Size [mm]
15 20
0
100
400
200
0.5° Angle
resolution
0.25° Angle
resolution
Beam diameter
Distance between measured points
10
300
5
