Mounting
58 © SICK AG · Germany · All rights reserved · Subject to change without notice 8012471/ZN27/2017-06-09
Operating Instructions
LMS1xx Laser Measurement Sensors
Chapter 5
5.3.2 Mounting with mounting kit 1a or 1b
Using mounting kit 1 you can mount the LMS1xx on a mounting surface (wall, machine). The
mounting kit is available as mounting kit 1a without protection device for the optics cover
and as mounting kit 1b with protection device for the optics cover.

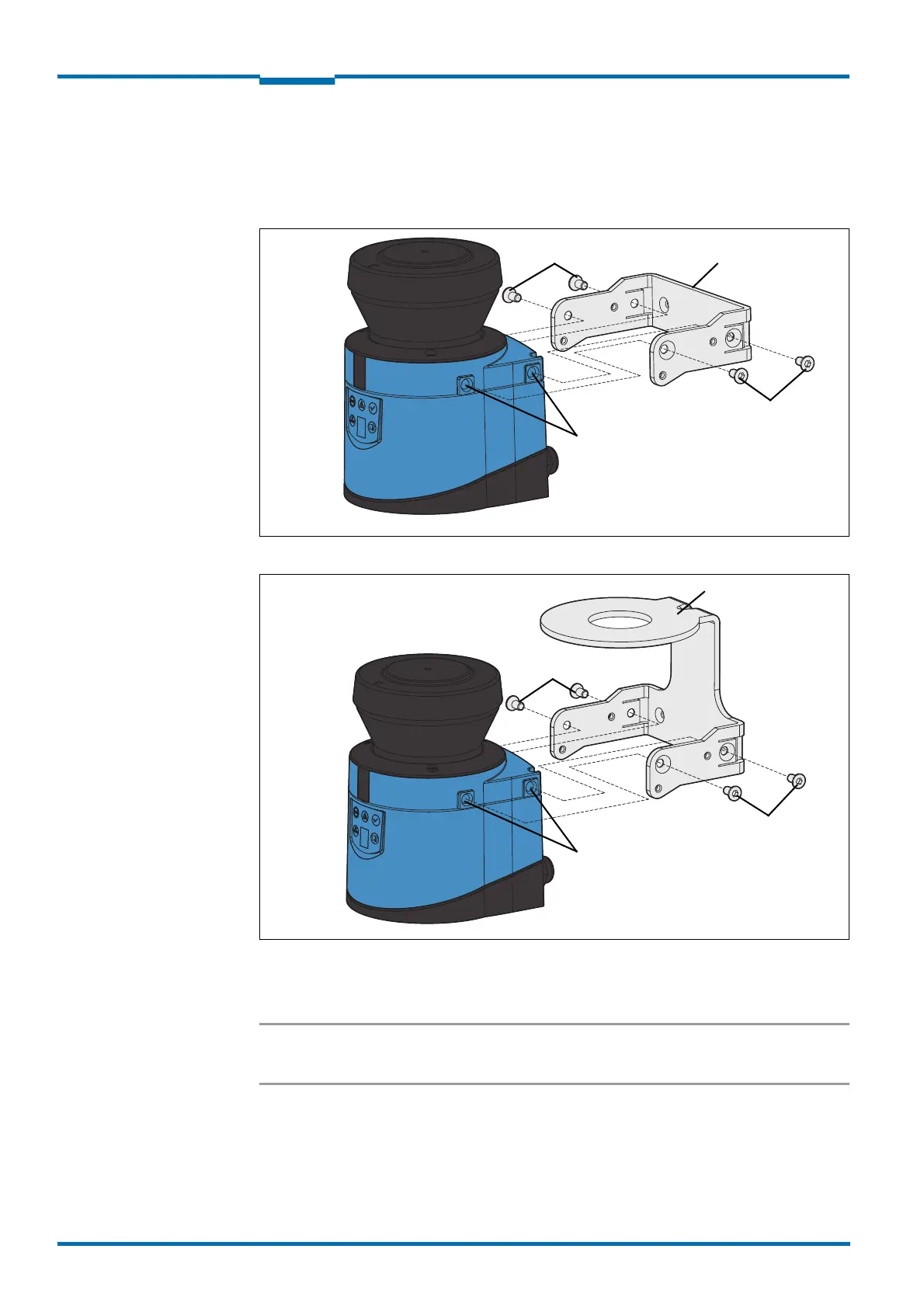

Fig. 31: Mounting with mounting kit 1a (part no. 2034324)
Fig. 32: Mounting with mounting kit 1b (part no. 2034325)
1. Mount mounting kit 1a or 1b on the mounting surface.
2. Then mount the LMS1xx on the mounting kit 1a or 1b.
Important During mounting, please observe the dimensional drawings (see section 10.3.3
“Dimensional drawings mounting kits” on page 101).
Threaded holes M5 × 8
Fixing screws
Fixing screws
Mounting kit 1a
Threaded holes M5 × 8
Fixing screws
Fixing screws
Mounting kit 1b
