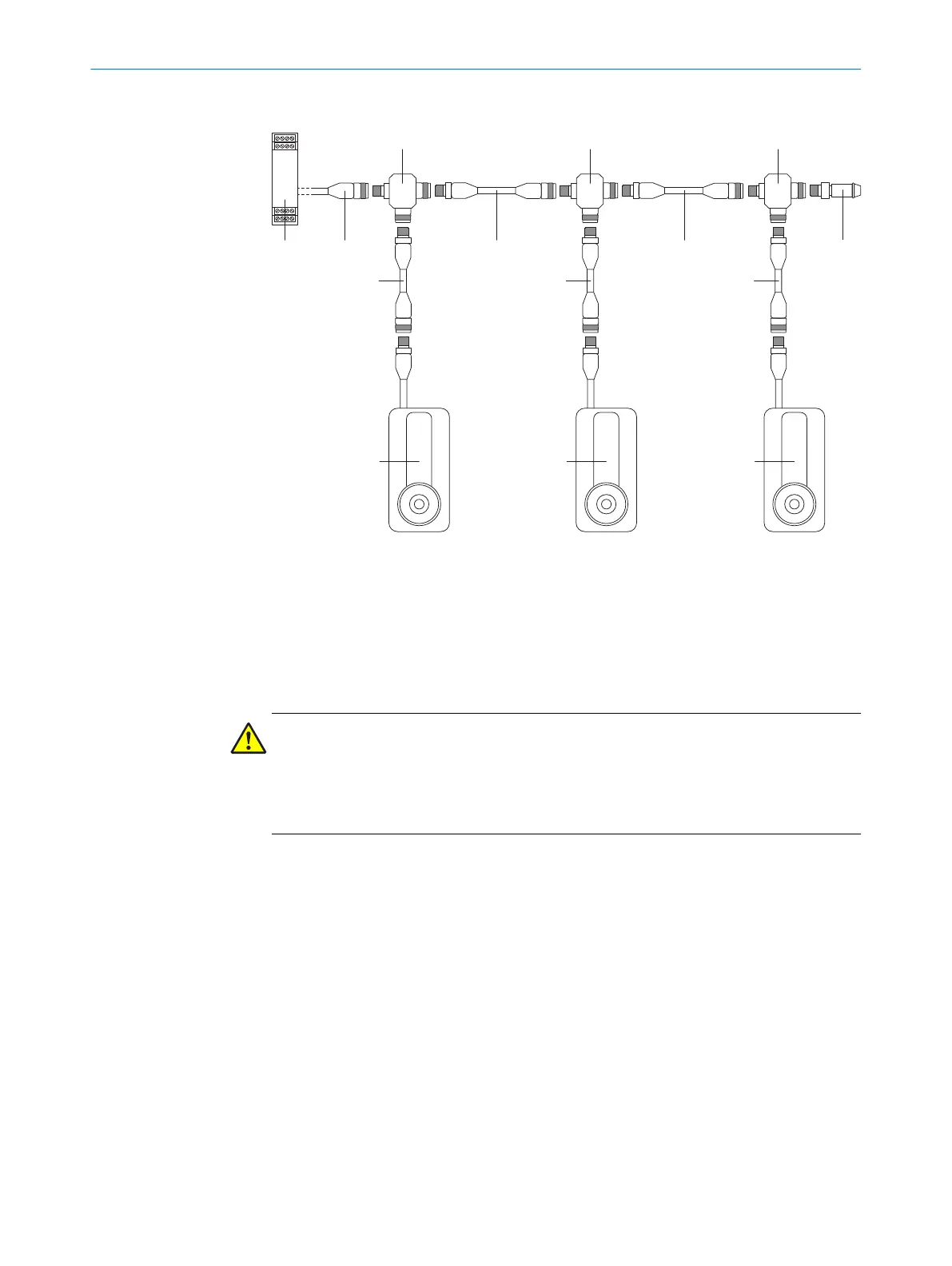

Connecting safety switches connected with T-connectors
33
7 7 7
4
2
6 6 6
1
5 5 5
1
Safe evaluation unit
2
Connecting cable, M12, 5-pin
3
Connection cable, M12, 5-pin
4
End connector
5
MLP1 safety switch (M12, 8-pin)
6
T-connector
7
Connection cable, M12, 8-pin
DANGER
B
ypassing the protective device
The dangerous state may not be stopped in the event of non-compliance.
If the cascade is created using T-pieces, install the connecting cables in a way that pre‐
vents a single T-piece (and therefore a safety switch) from simply being jumpered.
6 ELECTRICAL INSTALLATION
