Connecting an additional voltage supply
21 3 33 6
4
555
2
1
Safe evaluation unit
2
Connecting cable, M12, 5-pin
3
Connection cable, M12, 5-pin
4
End connector
5
MLP1 safety switch (2 × M12, 5-pin)
6
Nodes for voltage supply
Connecting other safety switches
8
33
7 7 7
4
2
6 6 6
1
5 5

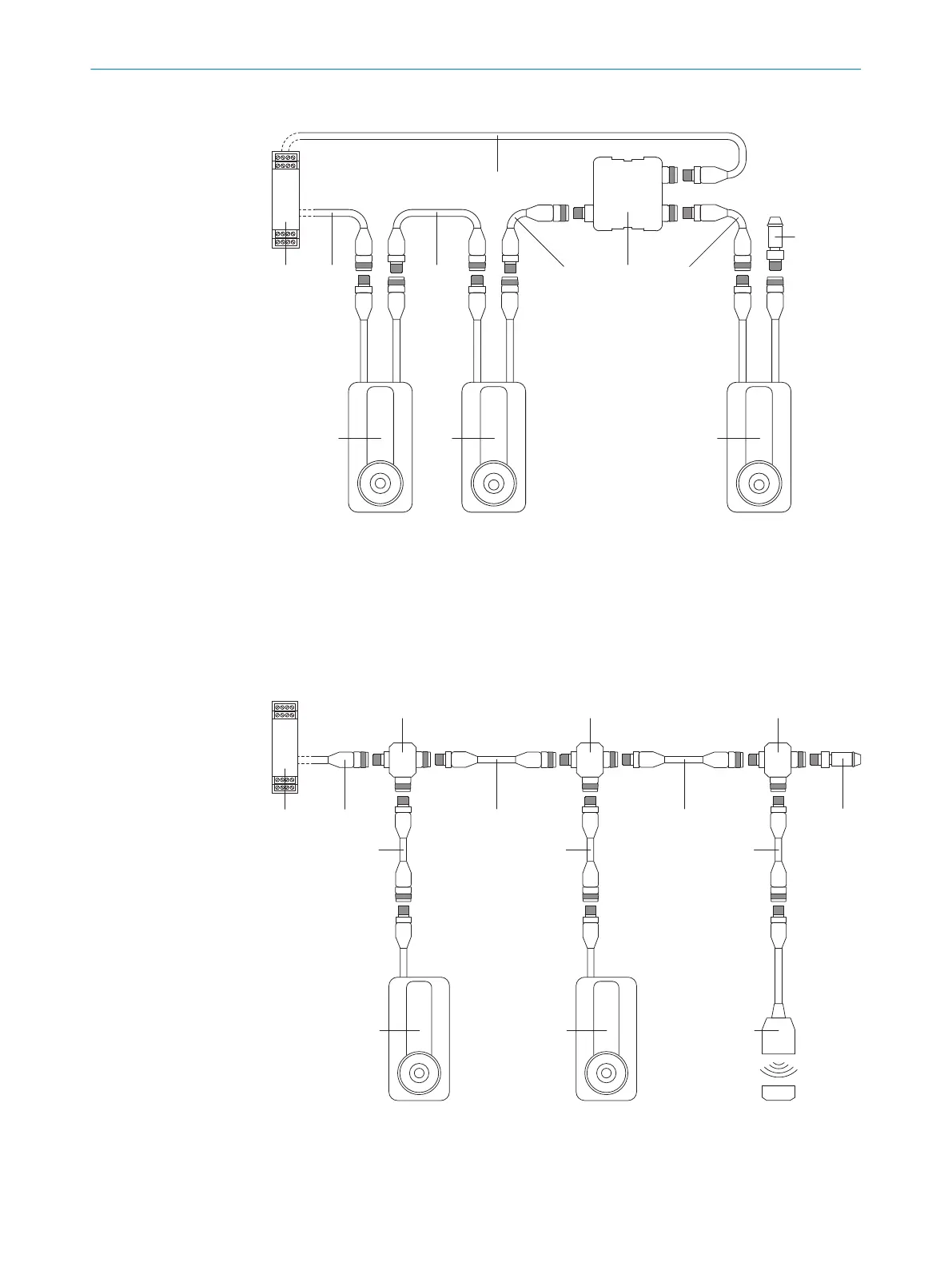

Figure 12: Cascading several safety switches
1
Safe evaluation unit
2
Connecting cable, M12, 5-pin
