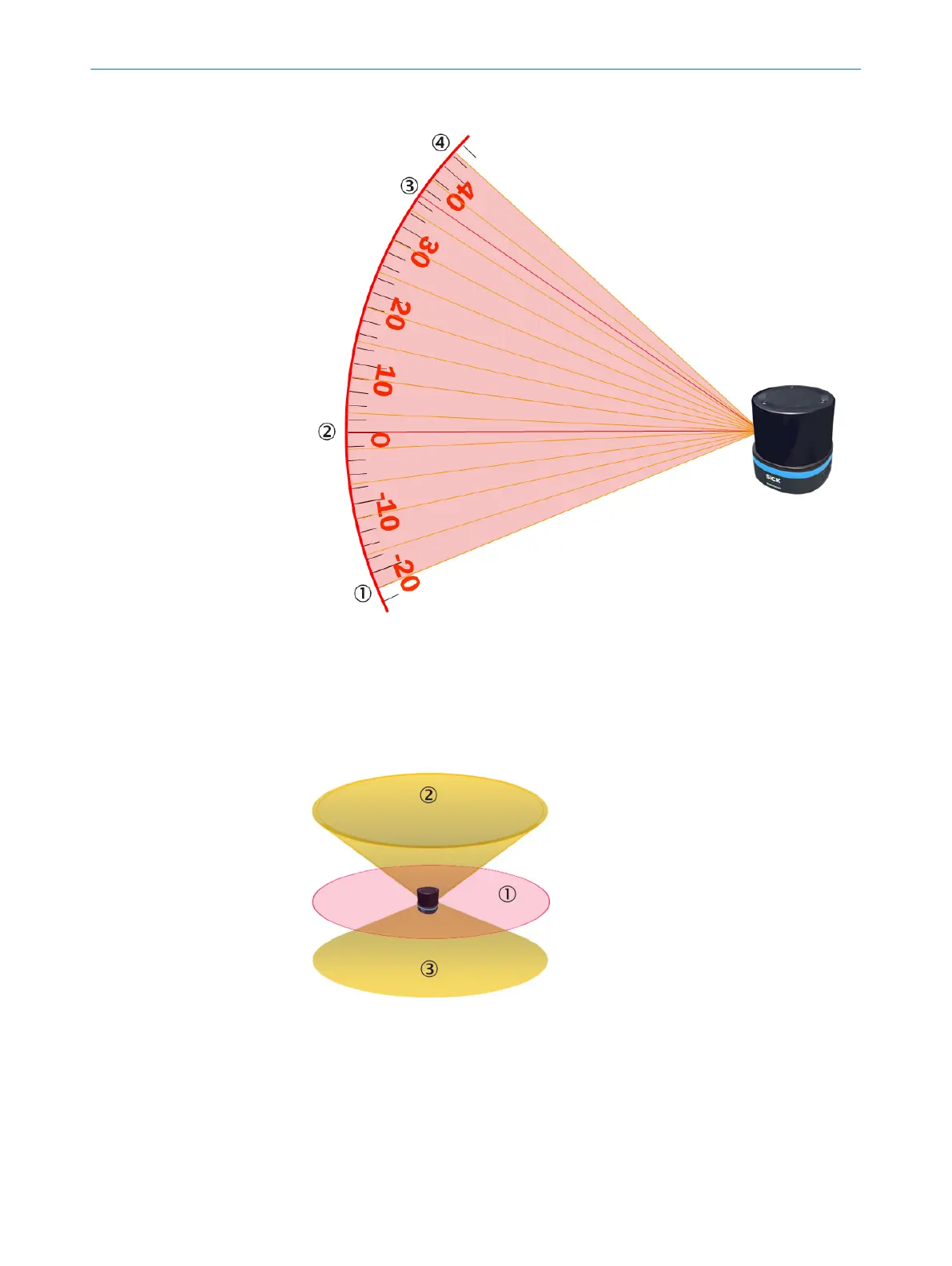

Figure 5: Positions of the 16 scan layers, side view
1
Scan layer 1
2
Scan layer 6 (high resolution)
3
Scan layer 14 (high resolution)
4
Scan layer 16
Figure 6: Possible shapes of a scan layer, 3D view
1
Navigation scan layer with increased azimuth resolution and elevation angle 0°
2
Scan layers with an elevation angle < 0°
3
Scan layers with an elevation angle > 0°
