Table 68: Dynamic Teach-in
1
A
|
1000
100
TEACH
1 sec.
Run mode
1
A
|
6000
Stop
TEACH
1 sec.
1
A
|
Update
3500
1
A
|
To run mode
1
A
|
1000
3500
Run mode

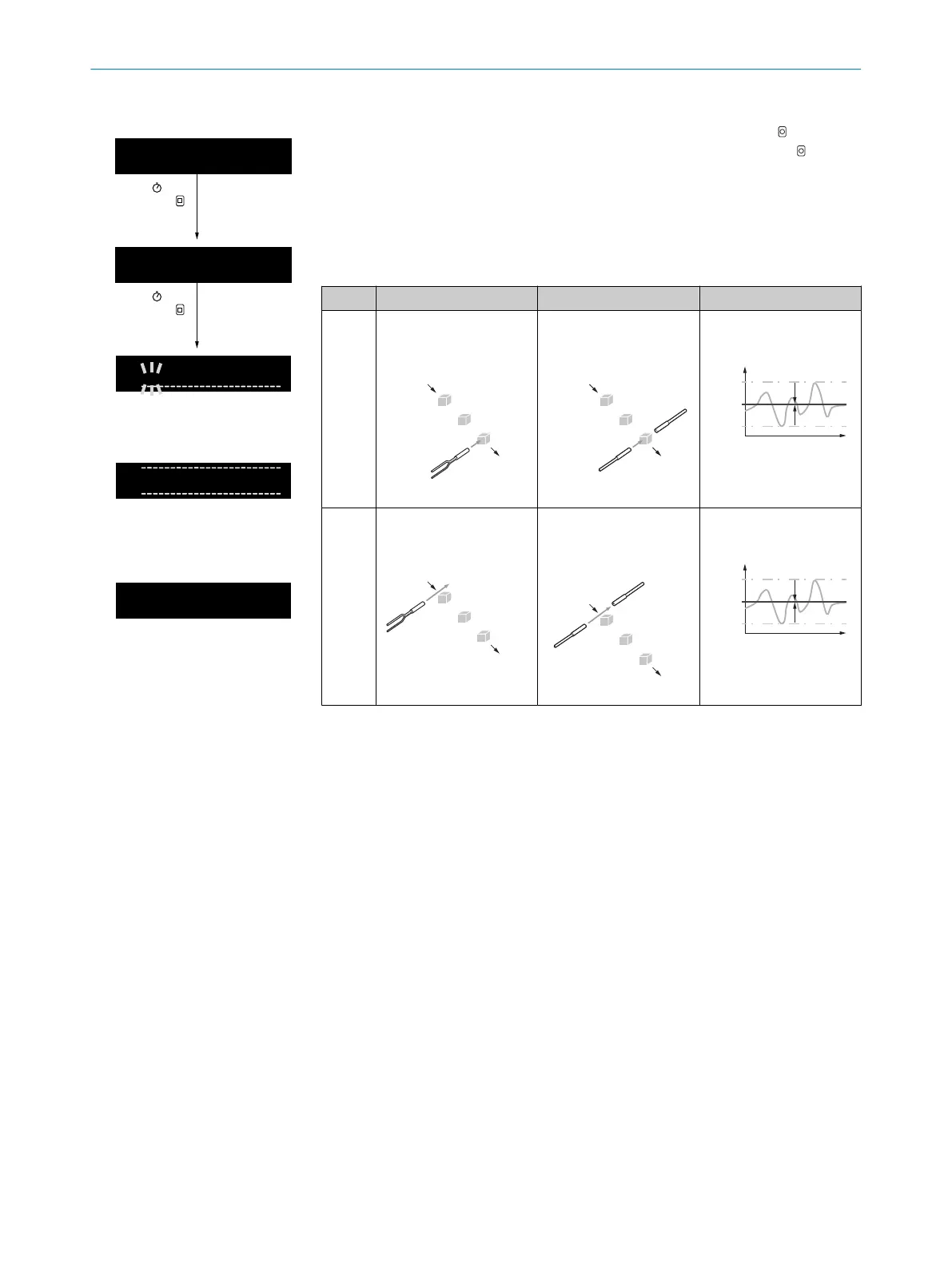

Perform a fast dynamic teach-in by pressing and holding (1second) TEACH
(confirmation teach-in start) and then pressing and holding (1second) TEACH
(confirmation teach-in stop).
The switching point (SP) is determined while the process is running. Between
starting and stopping teach-in, the maximum and minimum received light values
are determined as teach-in points (TPmax, TPmin). The switching point (SP) is
updated according to the determined teach-in points (TPmin, TPmax) and the
display returns to run mode.
Pushbuttons Through-beam Energy consideration
Step 1 Teach-in start Teach-in start
TPmax
SP
Energy
Time
50%
SP = (TPmax + TPmin) x 50%
TPmin
50%
Step 2 Teach-in stop Teach-in stop
TPmax
SP
Energy
Time
50%
SP = (TPmax + TPmin) x 50%
TPmin
50%
8.12.1.4 Zone teach-in
The zone teach-in sets the switching points SP1 and SP2 to a value above or below (specified by the Teach-in
offset parameter as a percentage) the received light value that is present at the moment the teach-in is performed
(teach-in point TP).
OPERATION 8
