SE80 & SE100 & SE120 & SE130 & SE150
Propeller Installation
EN
MC_0018
! Please refer to the graphic for special considerations relating to your model !
1. Centre the drive pin and Insert the propeller onto the shaft spine. Rotate the propeller until the drive pin aligns with the internal slot in the propeller.
2. Insert the washer to the end of the shaft spline. Tighten with the propeller lock-nut.
3. Insert the anode to the end of the propeller and tighten the anode holding screw. Apply a thread glue (Loctite 243 or similar) to ensure that the
anode holding screw does not un-screw itself from during the rotation of the propeller.
4. Apply antifouling to the gear leg and propeller. Do not apply antifouling to any rubber elements of the gear leg or anodes.

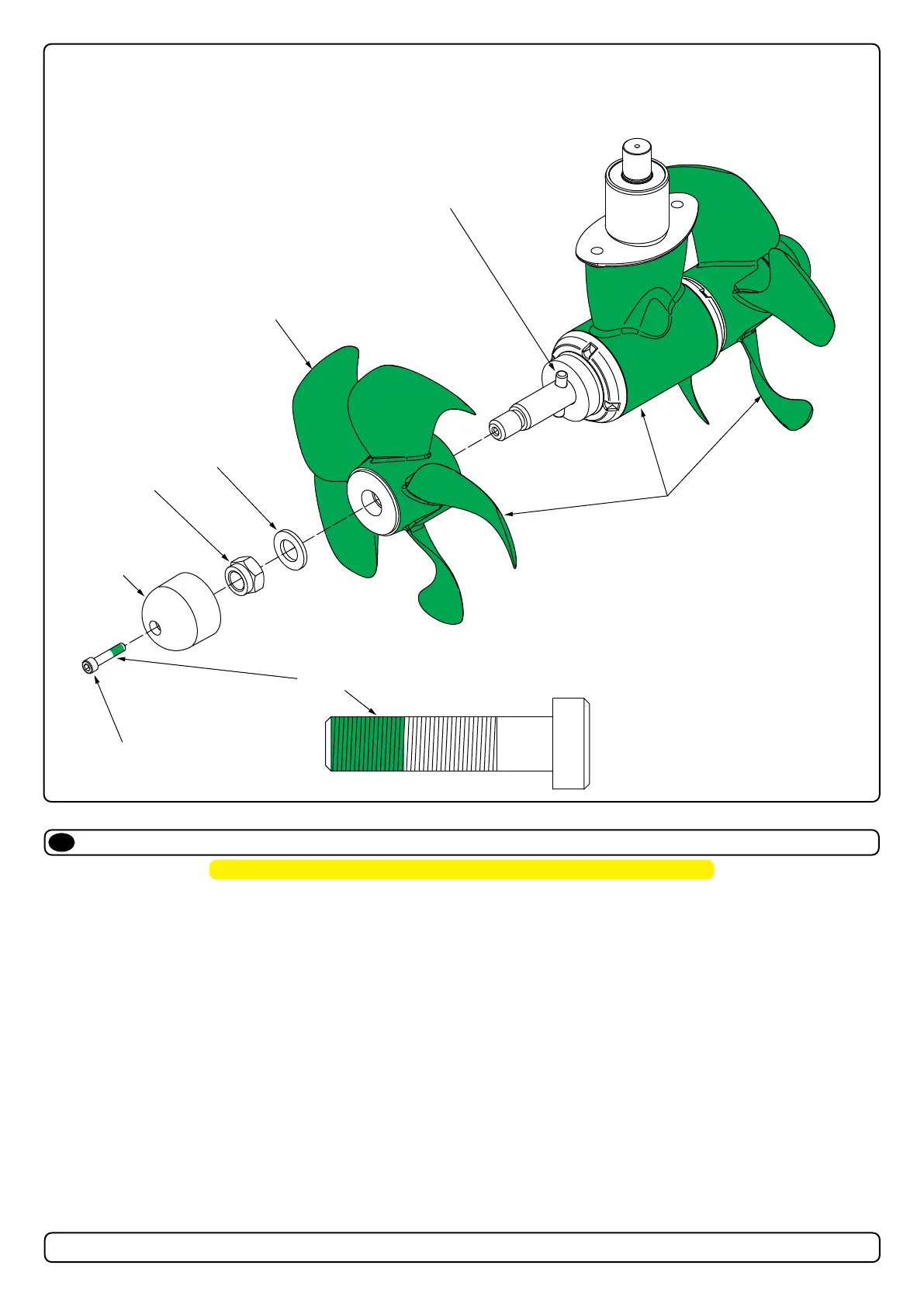

MG_0033
DRIVE PIN
PROPELLER
WASHER
LOCK NUT
ANODE
ANODE HOLDING
SCREW
Apply Loctite 243 or similar
Anitfouling
