BAL S102 PFN RT 1.00 13/24
Pos: 26 /Siebert/B edienungsanlei tungen/Seri e S102/SX102/Quic k-Start für alphanumerische B etriebsart (ASC II-Format)/Ü BS Quick-Start für alphanumerisch e Betriebs art (ASCII-For mat) @ 4\mod_1 48517228841 3_48.docx @ 2 6882 @ 1 @ 1
6 Quick start for alphanumeric operation mode (ASCII format)
Pos: 27 /Siebert/B edienungsanlei tungen/Seri e S102/SX102/Quic k-Start für alphanumerische B etriebsart (ASC II-Format)/S1 02 Quick-St art für alphanu merische Betriebs art (ASCII-For mat) PFN RT @ 4\mod_1485 172411216_4 8.docx @ 26889 @ @ 1
If the display receives data in ASCII format it can display also characters and special characters which
can be displayed by seven segments besides the digits.
Received characters which can not be displayed with seven segments are displayed as .
Pos: 28 /Siebert/B edienungsanlei tungen/Seri e S102/SX102/Quic k-Start für alphanumerische B etriebsart (ASC II-Format)/S1 02 Schritte 1 bis 4: siehe Quic k-Start für nu merische Betrie bsart (INT32-F ormat) PFN RT @ 4\mod_14 85173309645_4 8.docx @ 26895 @ 2 @ 1
Step 1 to 4: See quick start for numeric operation mode (INT32 format)
Step 1: Open project
Step 2: Switch to project view
Step 3: Install the GSDML file of the ad and add the display
Step 4: Establish a connection to the display
Pos: 29 /Siebert/B edienungsanlei tungen/Seri e S102/SX102/Quic k-Start für alphanumerische B etriebsart (ASC II-Format)/S1 02 Schritt 5: Su b-Modul der Anzeige hinzufüg en und Adressb ereich defi nieren PFN RT @ 4\mod_1485 173566639_4 8.docx @ 26902 @ 2 @ 1

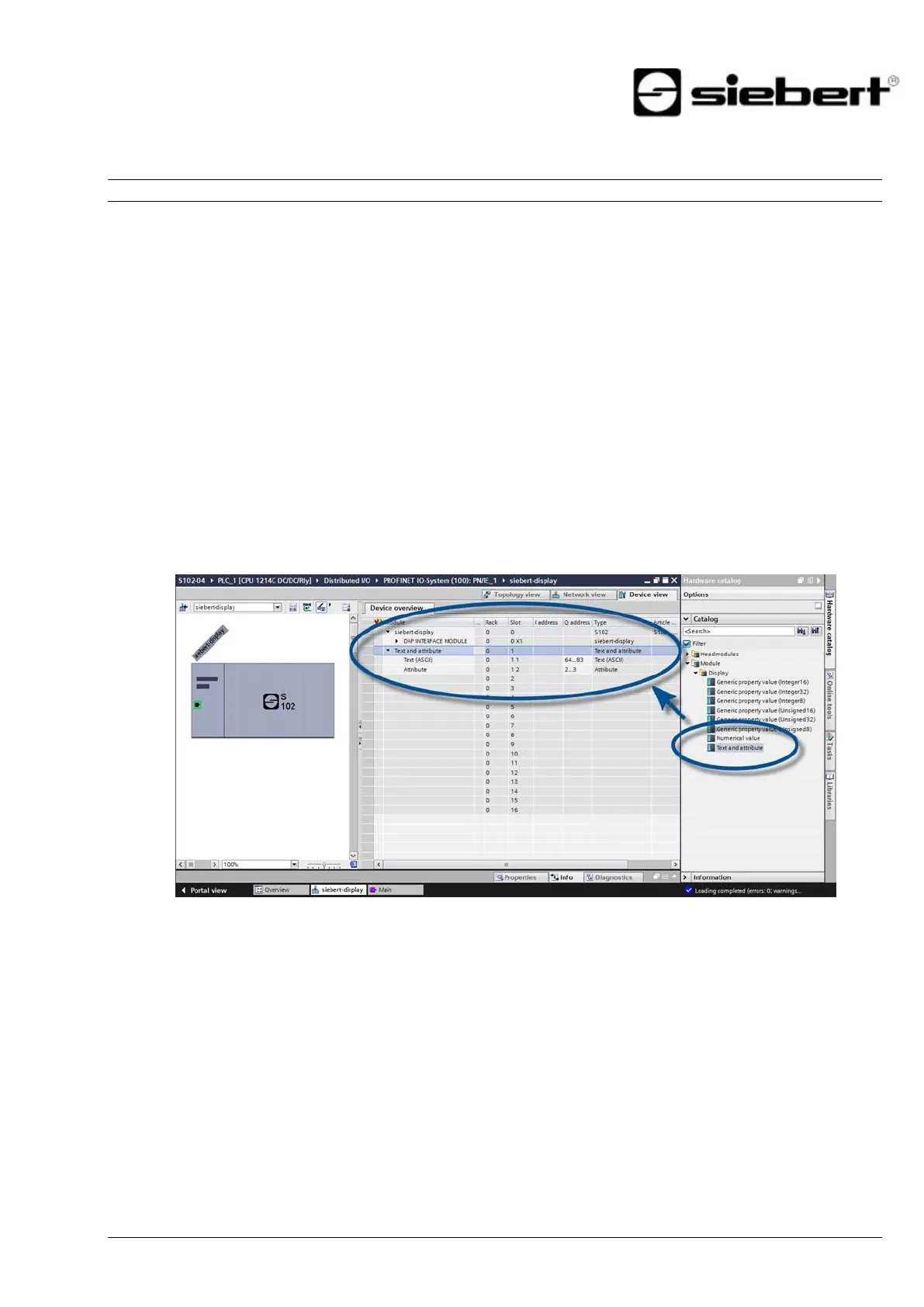

Step5: Add sub-modul to the display and define address range
Add the module 'Text and attribute' from the hardware catalog to the device overwiew. The two sub-
modules 'Text (ASCII)' and 'Attribute' are added automatically.
This specifies that the display occupies two blocks in the output data area: 20 bytes for the text and 2
bytes for the attributes.
Pos: 30 /Siebert/B edienungsanlei tungen/Seri e S102/SX102/Quic k-Start für alphanumerische B etriebsart ( ASCII-Format)/S1 02 Schritte 6 u nd 7: siehe Quic k-Start für n umerische Betrie bsart (INT32-For mat) PFN RT @ 4\mod_14 85173933179_48. docx @ 269 09 @ 2 @ 1
Step 6 and 7: See quick start for numeric operation mode (INT32-Format)
Step 6: Assign a PROFINET device name to the display
Step 7: Download the configuration to the controller
Pos: 31 /Siebert/B edienungsanlei tungen/Seri e S102/SX102/Quic k-Start für alphanumerische B etriebsart (ASC II-Format)/S1 02 Schritt 8: W erte oder Text e zur Anzeige se nden PFN RT @ 4\mod_14 85174751075_4 8.docx @ 269 29 @ 2 @ 1
Schritt 8:
