Siegenia KFV GENIUS 2.2 PANIC - Page 17

17/4517/4501.2020H39.ELEKS014EN-00


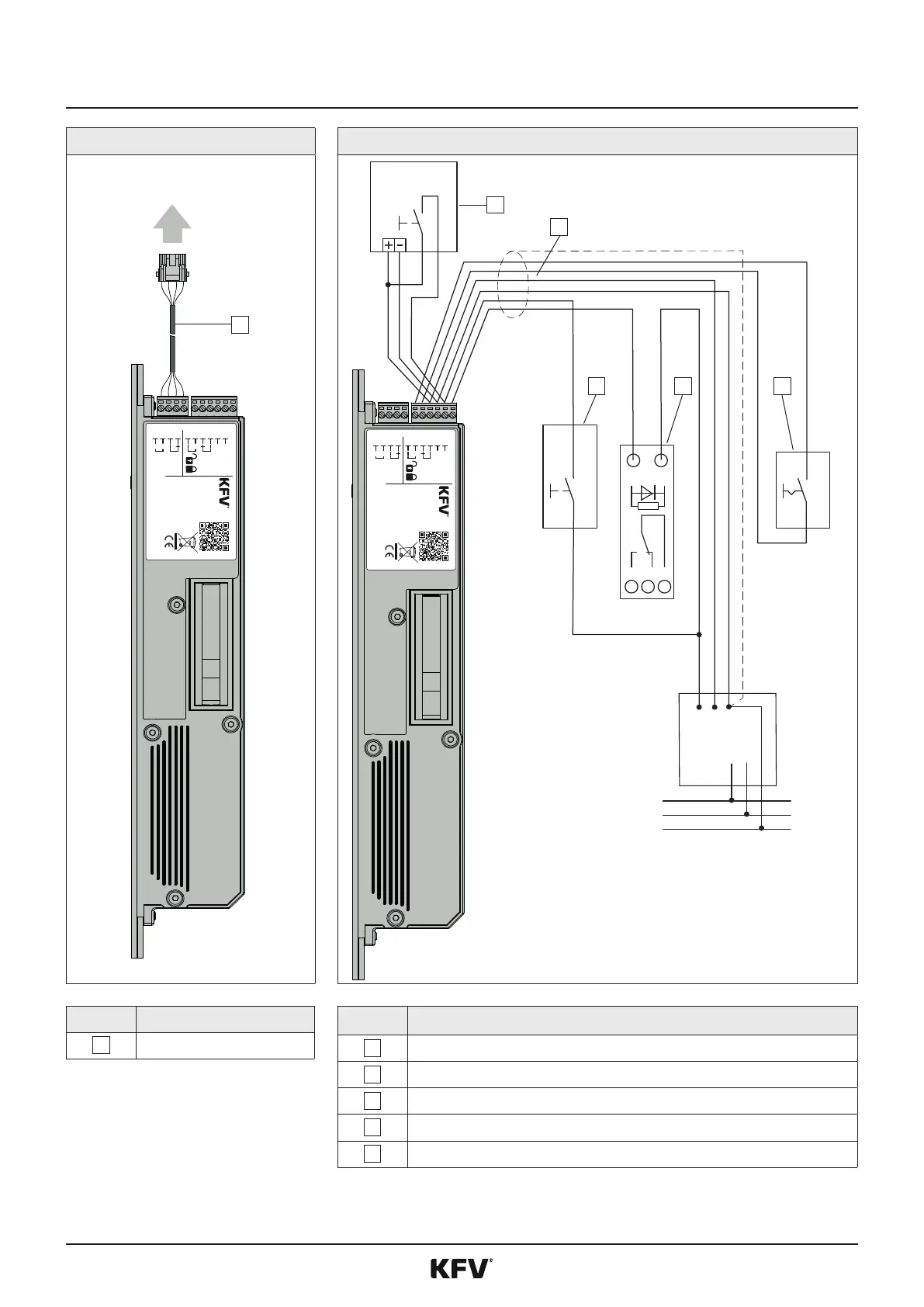

GENIUS 2.2 PANIC, Electromechanical mul-point lock
 
A
SI-Bus
Siemensstr. 10 D-42551 Velbert
GEN GEP 2.2
SN: R1: R2: R3:
24V DC
24V DC
Input Output
B C D 0 1 2 3 4 7
SI-BUS system
1
> = 1s
> = 1s
+V+V
L
N
PE
-V
14
A2 A1
12 11
A
SI-Bus
Siemensstr. 10 D-42551 Velbert
GEN GEP 2.2
SN: R1: R2: R3:
24V DC
24V DC
Input Output
B C D 0 1 2 3 4 7
Power
supply
1
2
3 4 5
Item Name
1
SI-BUS adapter cable
Item Name
1
Unlocking via analogue access control system (oponal)
2
Feed (shielded)
3
Oponal external unlocking (e.g. buon or intercom system etc.)
4
Coupling relay 24 V DC (oponal) for feedback contact
5
External switch or clock mer (oponal) for automac switchover day / night operaon
