Siegenia KFV GENIUS 2.2 PANIC - Assembly of sash side

19/4519/4501.2020H39.ELEKS014EN-00

GENIUS 2.2 PANIC, Electromechanical mul-point lock
6 
 
PZ 2
f

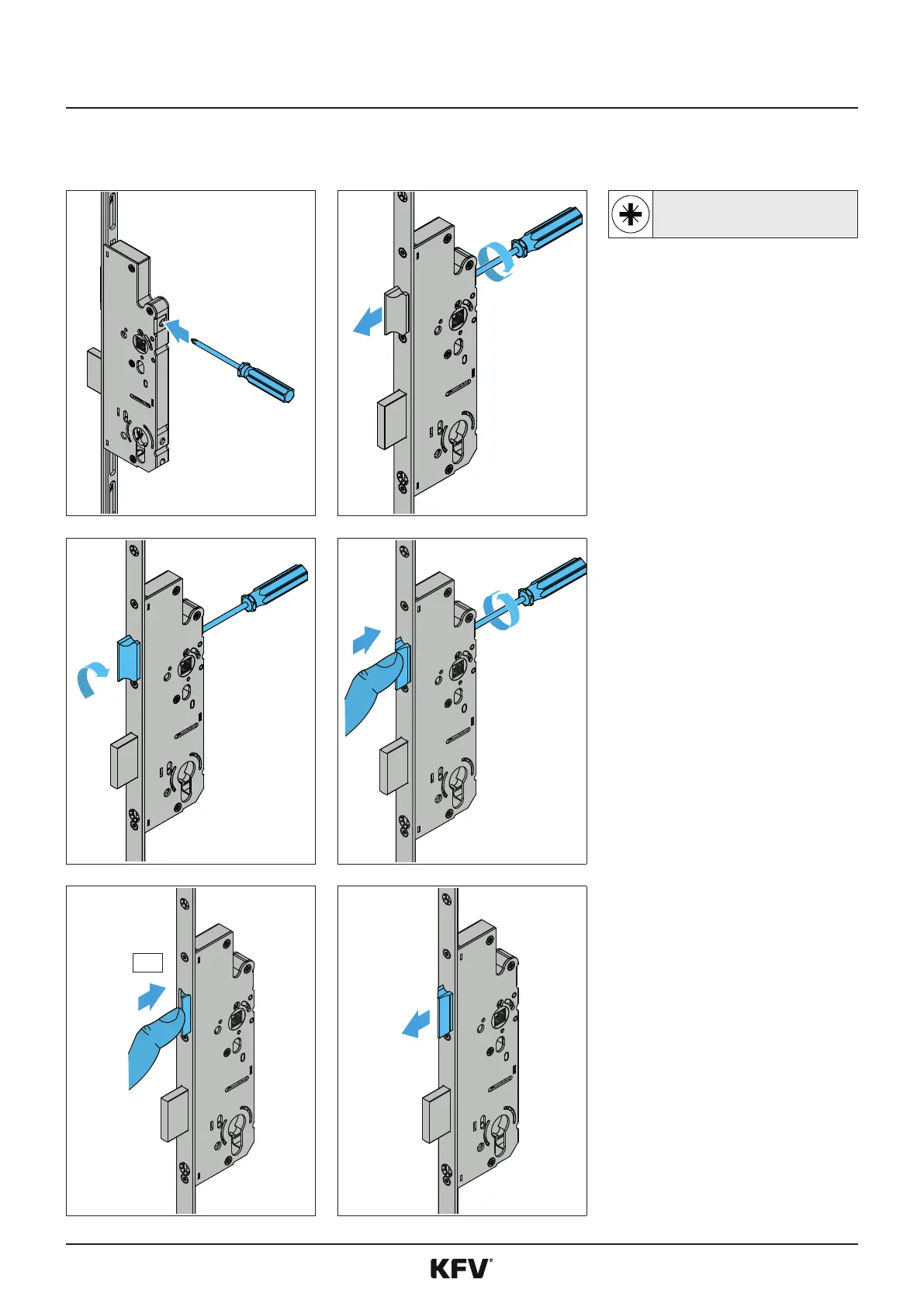

Insert a PZ2 screwdriver through
the hole at the rear of the gear
box.
f
Loosen the locking screws of
the latch sha with the PZ2
screwdriver unl the latch can
be pulled forwards and rotated
by 180°.
f
Rotate the latch by 180°.
f
Press in the latch sha and turn
the locking screw of the latch
sha, ghtening manually, using
the PZ2 screwdriver.
5x
f
Press the latch approx. 5 mes
into the gear box for the func-
onal test.
f
The latch must be able to extend
again with ease.
