Siemens 1FK7 Series User Manual

Connecting
6.1 Electrical connection
Synchronous Motors 1FK7
36 Operating Instructions, 03/2011, 610.40700.40c
6.1.7 Motors without DRIVE-CLiQ interface
If a motor is not equipped with a DRIVE-CLiQ interface, the speed encoder and temperature
sensor are connected via a signal connector.
Motors without DRIVE-CLiQ require a Sensor Module Cabinet (SMC) for operation with a
SINAMICS S120 drive system. The motor is connected to the SMC via a signal line. The
SMC is connected to the motor via a DRIVE-CLiQ cable (MOTION-CONNECT).
3RZHUFDEOH
6LJQDOFDEOH
0RWRU
&RQWUROFDELQHW
(
0
a
6,1$0,&66
'5,9(&/L4
˽
0RWRU
0RGXOH
6HQVRU0RGXOH&DELQHW60&

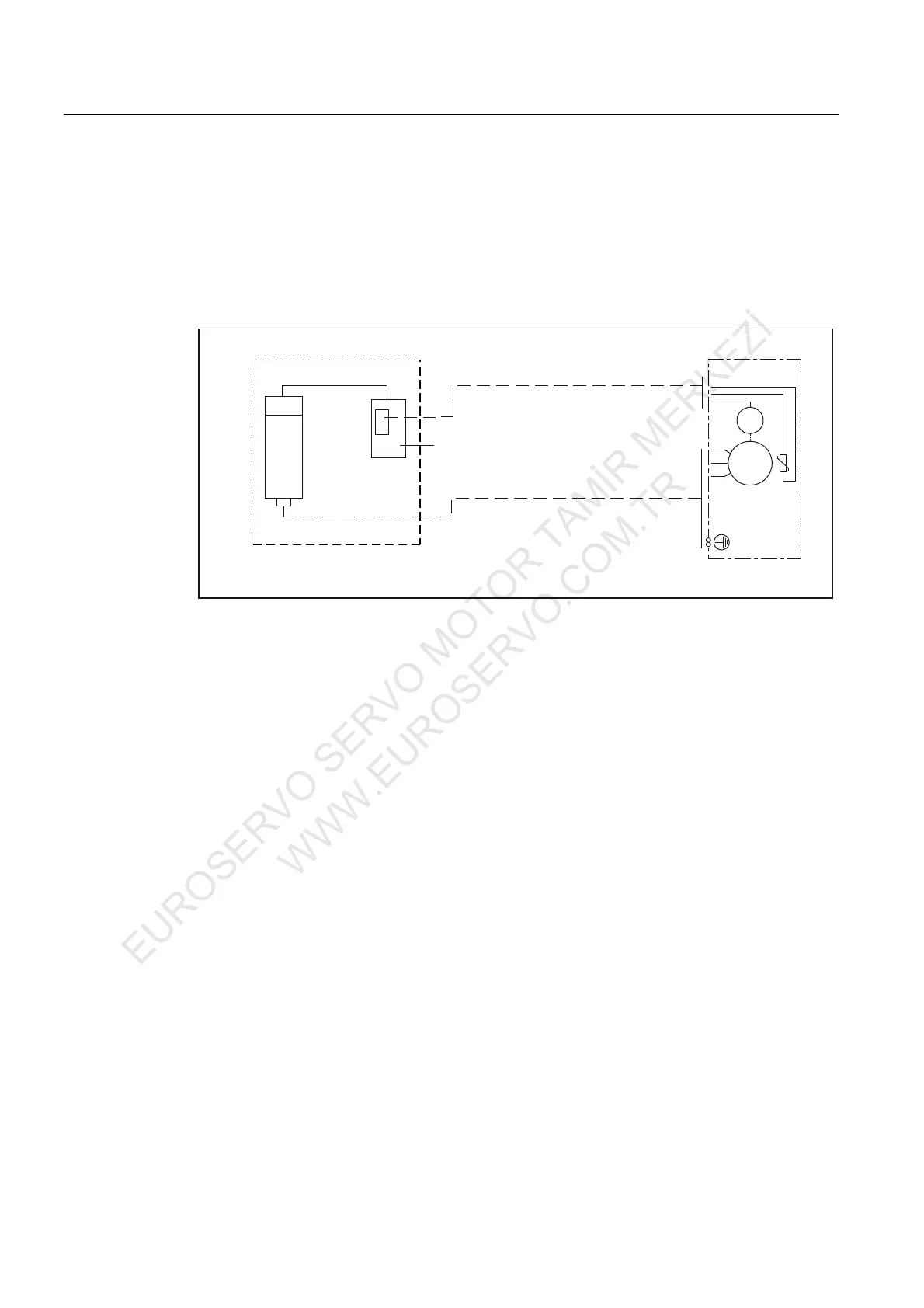

Figure 6-6 Encoder connection without DRIVE-CLiQ
6.1.8 Connecting to a converter
Selecting and connecting the cable
To connect the motor to a converter, use MOTION-CONNECT cables or shielded connecting
cables. The protective braided shield of the cable must made up of as many strands as
possible and have good electrical conductivity. Braided shields made of copper or aluminum
are very suitable.
The shield must be connected at both ends to the motor and the converter; unshielded cable
ends must be kept as short as possible.
In order to ensure good discharge of high-frequency currents, provide a 360° contact through
a large surface area at the converter.
EUROSERVO SERVO MOTOR TAMİR MERKEZİ
WWW.EUROSERVO.COM.TR

Siemens 1FK7 Series Specifications

General

Product type	Synchronous motor
Encoder	Incremental encoder, absolute encoder
Cooling method	Natural cooling, forced-air cooling
Degree of protection	IP64, IP65
Speed range	Up to 9000 rpm
Feedback system	Encoder or resolver
