Description
3.3 Rating plate (type plate)
Synchronous Motors 1FK7
14 Operating Instructions, 03/2011, 610.40700.40c
3.3 Rating plate (type plate)
The rating plate (type plate) contains the technical data relevant for the motor.
%UDNH(%'%.9:
PNJ
a0RW
).$)&%
1R<)31
0
(QFRGHU$0'4,
7K&O))
51
,
,
8
Q
Q
,3
(1
0DGHLQ*HUPDQ\
&
1P
0
1
,1
PD[
1
1
1P
$
$
9
PLQ
PLQ
86
6LHPHQV$*,QGXVWULHVWU'%DG1HXVWDGW

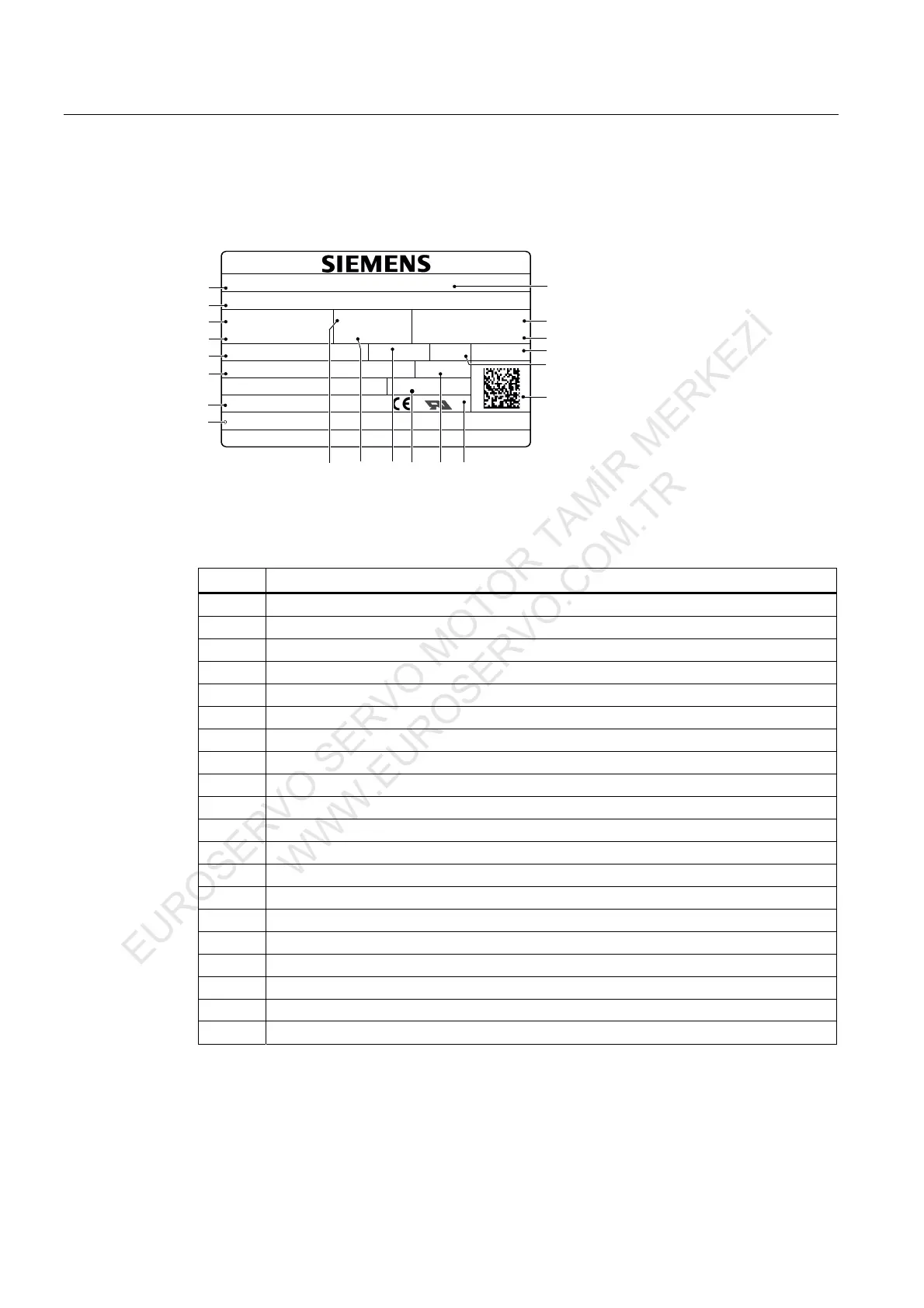

Figure 3-1 Schematic layout of rating plate
Table 3- 2 Description of the rating plate data
Position Description / technical data
1 Motor type: Synchronous motors
2 ID no., serial number
3 Static torque M
0
[Nm]
4 Rated torque M
N
[Nm]
5 Designation of the encoder type
6 Holding brake data: Typical, voltage, power consumption
7 Standard for all rotating electrical machines
8 Production address
9 Stall current I
0
[A]
10 Rated current I
N
[A]
11 Induced voltage at rated speed U
IN
[V]
12 Temperature class
13 Motor version
14 Standards and specifications
15 2D code
16 Degree of protection
17 Motor weight m [kg]
18 Rated speed n
N
[rpm]
19 Maximum speed n
max
[rpm]
20 SIEMENS motor type/order number
