Siemens 1FK7 Series User Manual

Connecting
6.1 Electrical connection
Synchronous Motors 1FK7
Operating Instructions, 03/2011, 610.40700.40c
35
6.1.6 Motors with DRIVE-CLiQ interface
Motors designed for SINAMICS drive systems have an integrated encoder and temperature
evaluation system as well as an electronic rating plate. The connection to the converter
system uses a 10-pole RJ45plus socket. This is known as a DRIVE-CLiQ interface. The pin
assignment is independent of the motor-internal encoder.
NOTICE
The Sensor Module is in direct contact with electrostatically-sensitive components. It is not
permissible to touch the connections with either hands or tools that could be
electrostatically charged.
The signal connection between the motor and Motor Module is established using a DRIVE-
CLiQ cable (MOTION-CONNECT). The DRIVE-CLiQ cable connector must be inserted far
enough so that the catch springs engage.
3RZHUFDEOH
0RWRU
6,1$0,&66
&RQWUROFDELQHW
0RWRU
0RGXOH
'5,9(&/L4
˽
(
0
a

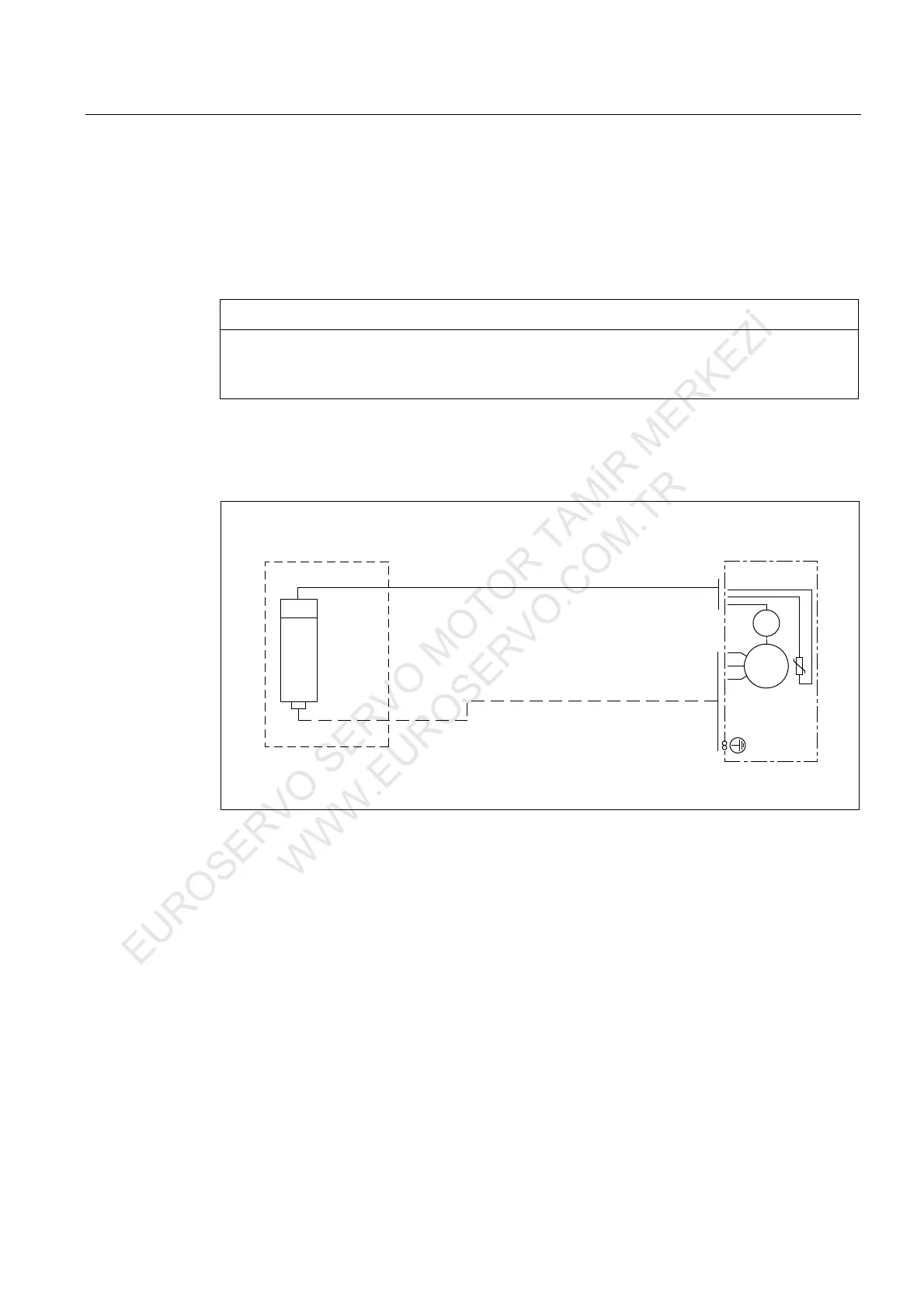

Figure 6-5 Encoder interface with DRIVE-CLiQ
EUROSERVO SERVO MOTOR TAMİR MERKEZİ
WWW.EUROSERVO.COM.TR

Siemens 1FK7 Series Specifications

General

Product type	Synchronous motor
Encoder	Incremental encoder, absolute encoder
Cooling method	Natural cooling, forced-air cooling
Degree of protection	IP64, IP65
Speed range	Up to 9000 rpm
Feedback system	Encoder or resolver
