8-16
TP27, TP37 Equipment Manual
Release 01/00
A Record Set can be created in standard screen Data Record Processing and
Transmission in two different ways, i.e. saved on a data medium:
1. Save a data record for each recipe
Step Action
1 Select RecordSet as the recipe.
2 Define the data record name and the data medium.
3 Save the record set as with a data record.
A data record is created for each recipe.
4 Delete any data records not required.
2. Save a data record individually for selected recipes
Step Action
1 Select the recipe name, e.g. ORANGE.
2 Define the data record name (e.g. Drink) and data medium. Each
data record name must be created with the same name (= Drink).
3 Edit the data record and save it.
4 Repeat steps 1 and 3 for each data record.
During the loading procedure all the data records with the selected name
located on the data medium are loaded on the Touch Panel and transferred on
to the PLC. The sequence of steps corresponds to the procedure described on
Page 8-11 under Loading data records.
Note
S It may take a relatively long time to upload a record set from the data me-
dium to the PLC, depending on the size of the recipes. A record set should,
therefore, only contain essential recipes.
S During the following downloading procedure, all current values of all re-
cipe tags are transferred, and not just the data records with the same name:
– PLC ³ TP
– PLC ³ Data medium
– TP ³ PLC
Save (Create)
Load

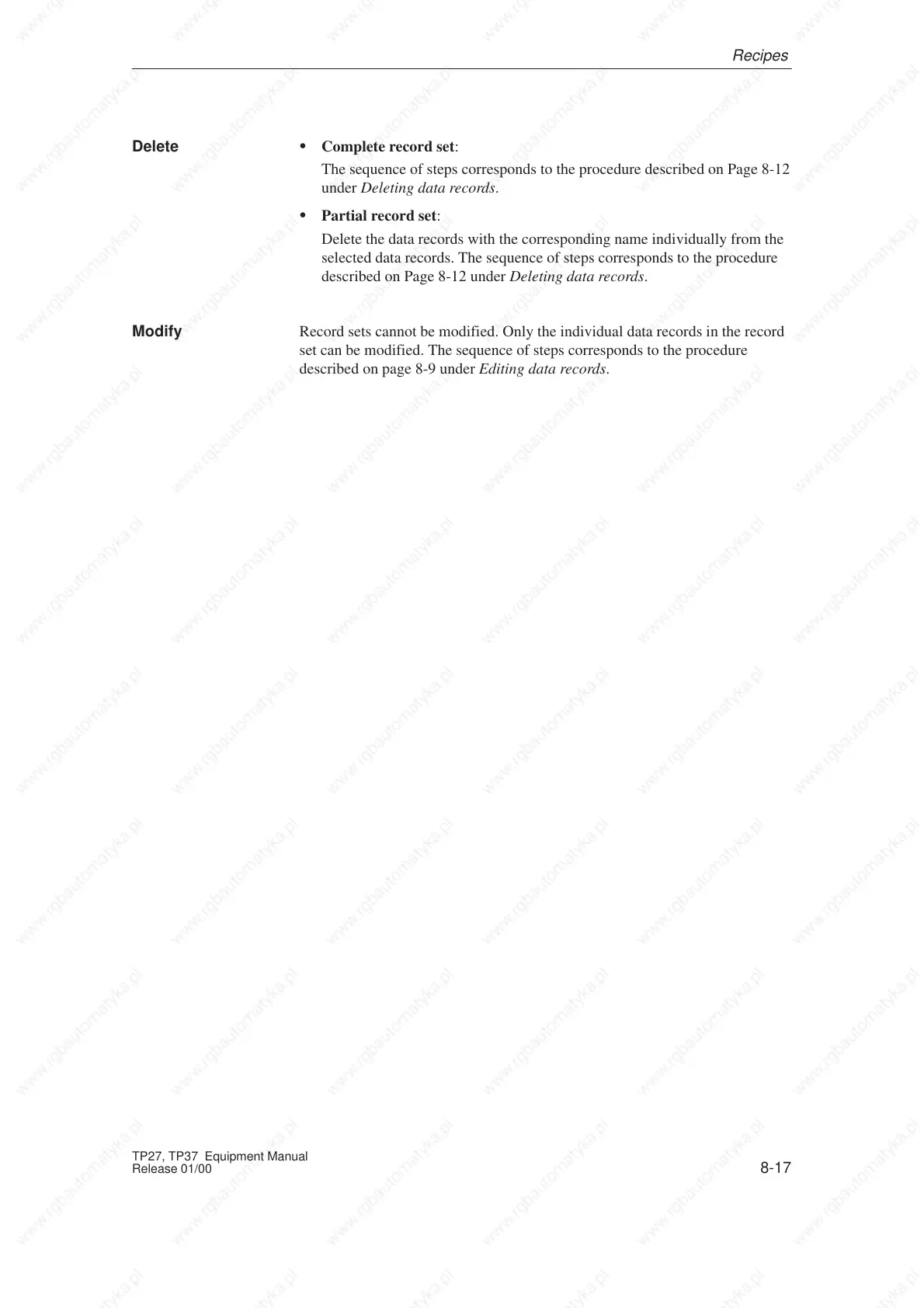

Recipes
