10-2
TP27, TP37 Equipment Manual
Release 01/00
10.1 Status Variable
The standard screen Status Variable is selected from the main
screen using a soft key.
Status Variable
MPI Operand Format Value
12 DB, DBB 100 10 BIN = 0000000000000000
1 ?????? 0 ????????? 0
1 ?????? 0 ????????? 0
1 ?????? 0 ????????? 0
1 ?????? 0 ????????? 0
1 ?????? 0 ????????? 0
1 ?????? 0 ????????? 0
1 ?????? 0 ????????? 0
1 ?????? 0 ????????? 0
1 ?????? 0 ????????? 0
Status:
Running
123
ESCHelp

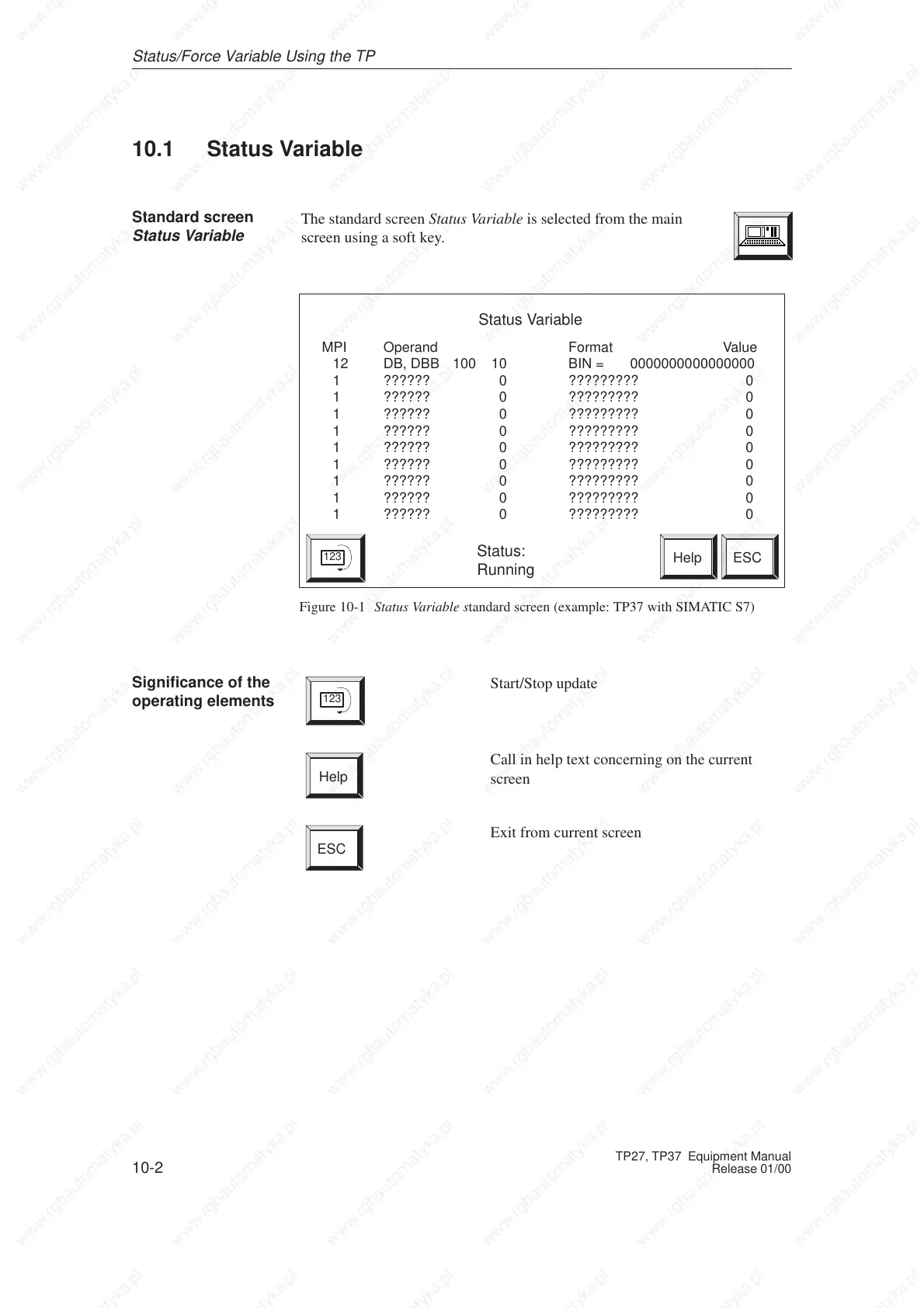

Figure 10-1 Status Variable standard screen (example: TP37 with SIMATIC S7)
123
Start/Stop update
Help
Call in help text concerning on the current
screen
ESC
Exit from current screen
Standard screen
Status Variable
Significance of the
operating elements
Status/Force Variable Using the TP
