12-9
TP27, TP37 Equipment Manual
Release 01/00
12.2.2 Connecting the Configuration Computer
In order to download the configuration, a connection between the configuration
computer (PU or PC) and TP must be established. There are two connection
options available for this:
S the serial connection of a configuration computer to the TP interface IF2
(serial downloading),
S the connection of a configuration computer to the TP interface IF1B (MPI
downloading). In this case, the configuration computer and TP are con-
nected to the MPI network. A condition for this is that a configuration al-
ready exists on the TP.
Both connections serve for downloading the firmware and configuration data
(chapter 13.2). Standard cables are available for the connections shown (refer
to the ST80.1 catalog).
RS232
RS232
RS232
TTY passive
1)
TTY passive
1)
TTY/RS232
converter
COM1/2
(9–pin)
COM1
(25–pin)
COM2
(9–pin)
COM1/2
(25–pin)
PC or PU
with MPI
card
IF2
TP27, TP37
PC
IF1B
PG 7xx
1)
Do not use the Siemens converter cable for connection by TTY/passive, because the Touch
Panel does not supply 5 V.

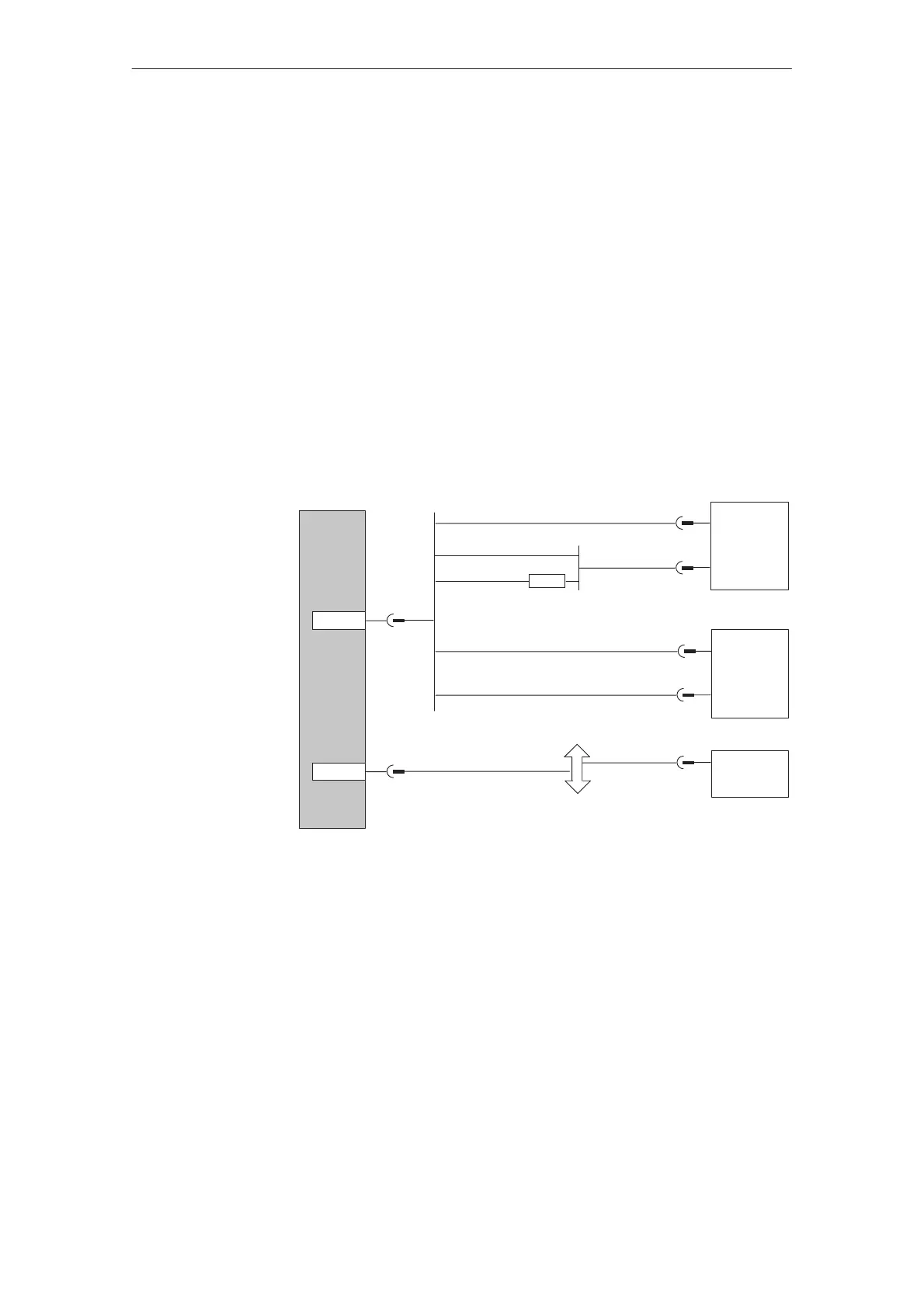

Figure 12-2 Connection configuration diagram for configuration computer
Connection
configuration

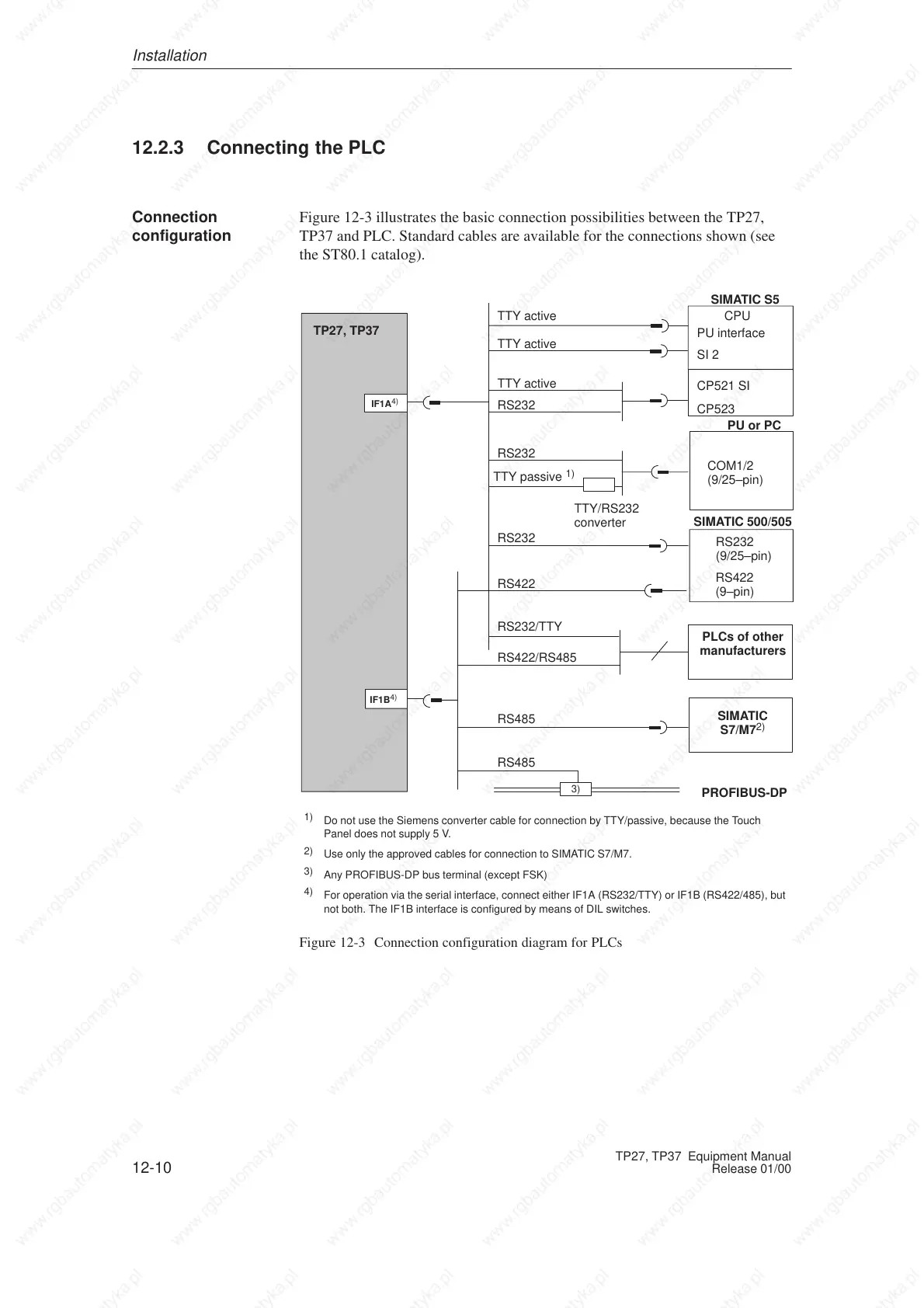

Installation
