12-7
TP27, TP37 Equipment Manual
Release 01/00
Figure 12-1 illustrates a number of configuration options for Touch Panels,
PLCs and periphery equipment.
SIMATIC S5
SIMATIC 500/505
PC
Other PLCs
IF2
PLC PROFIBUS-DP
SIMATIC 500/505
SIMATIC S7
Other PLCs
optionally
E.g.
DR215
DR235
Printer
PC
PG 7xx
Configuration
computer
PLC
Power supply with relay
contact
2)
IF1A IF1B
optionally
Serial Parallel
LPT
E.g.
Epson Stylus
Canon BJC
Printer
Relay contact for tem-
perature monitoring
IF3
TP27, TP37
Currently unassigned
Only valid for TP37
DIL
switches
Valid for TP27 and TP37
1)
with MPI card
2)
Relay contacts only for TP27-6 and TP37
PC
PG 7xx
Configuration
computer
1)

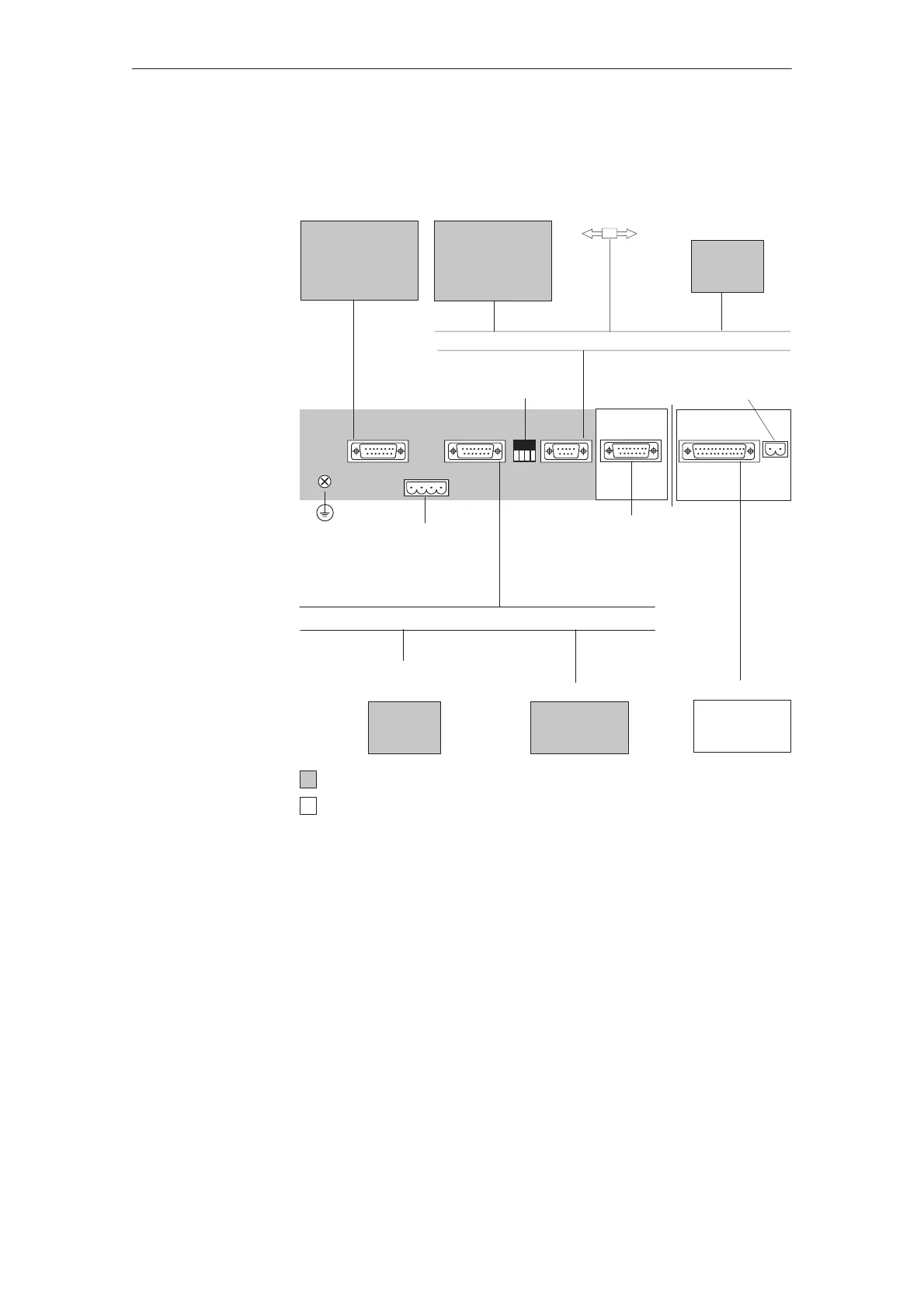

Figure 12-1 Configuration options

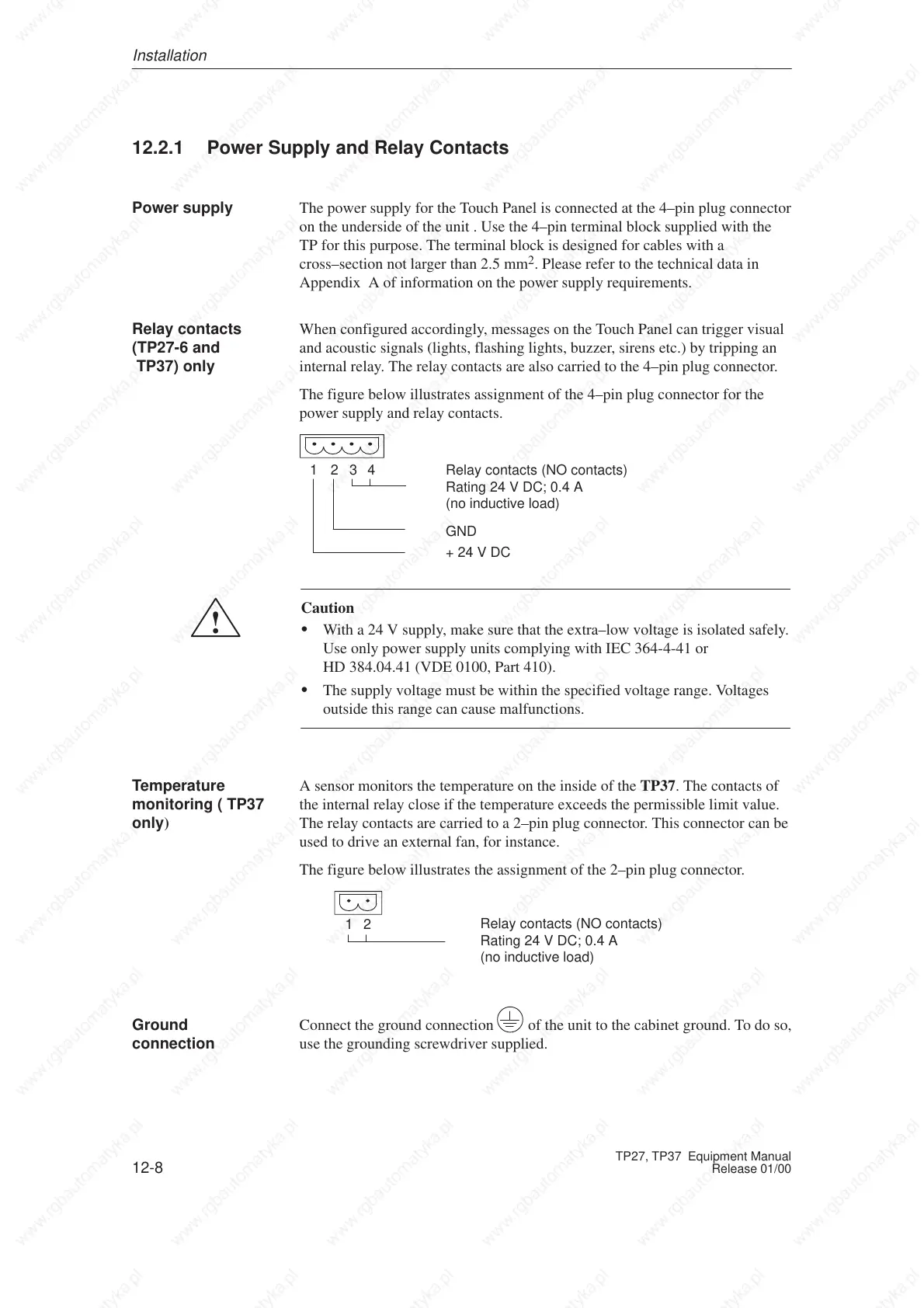

Detailed information on connection options is provided in the sections below.
The connection plug pin assignment for the interfaces are provided in Appen-
dix B of this manual.
Configuration
options
Installation
