10-3
TP27, TP37 Equipment Manual
Release 01/00
Figure 10-2 illustrates the structure of a line for the SIMATIC S5 in the form
of an example:
Operand value
Data format
Operand address
(for data types DB, DW, DB, DD:
Number of DW or DD)
DB number
(applicable only to data types DB,
DW, DB and DD)
Data type
34 KF28 20DB, DW
Figure 10-2 Display of PLC operands for the SIMATIC S5
Figure 10-3 illustrates the structure of a line for the SIMATIC S7 in the form
of an example:
Operand value
Data format
Operand address
(for data types DBB, DBW DB,
DBD and DB: Number of DB, DD)
DB number
(applicable only to data types DBB,
DBW, DBD and DBX)
Data type
MPI address
PLC address input
1438 DEC12
1820
DB, DBD001
Figure 10-3 Display of PLC operands for the SIMATIC S7

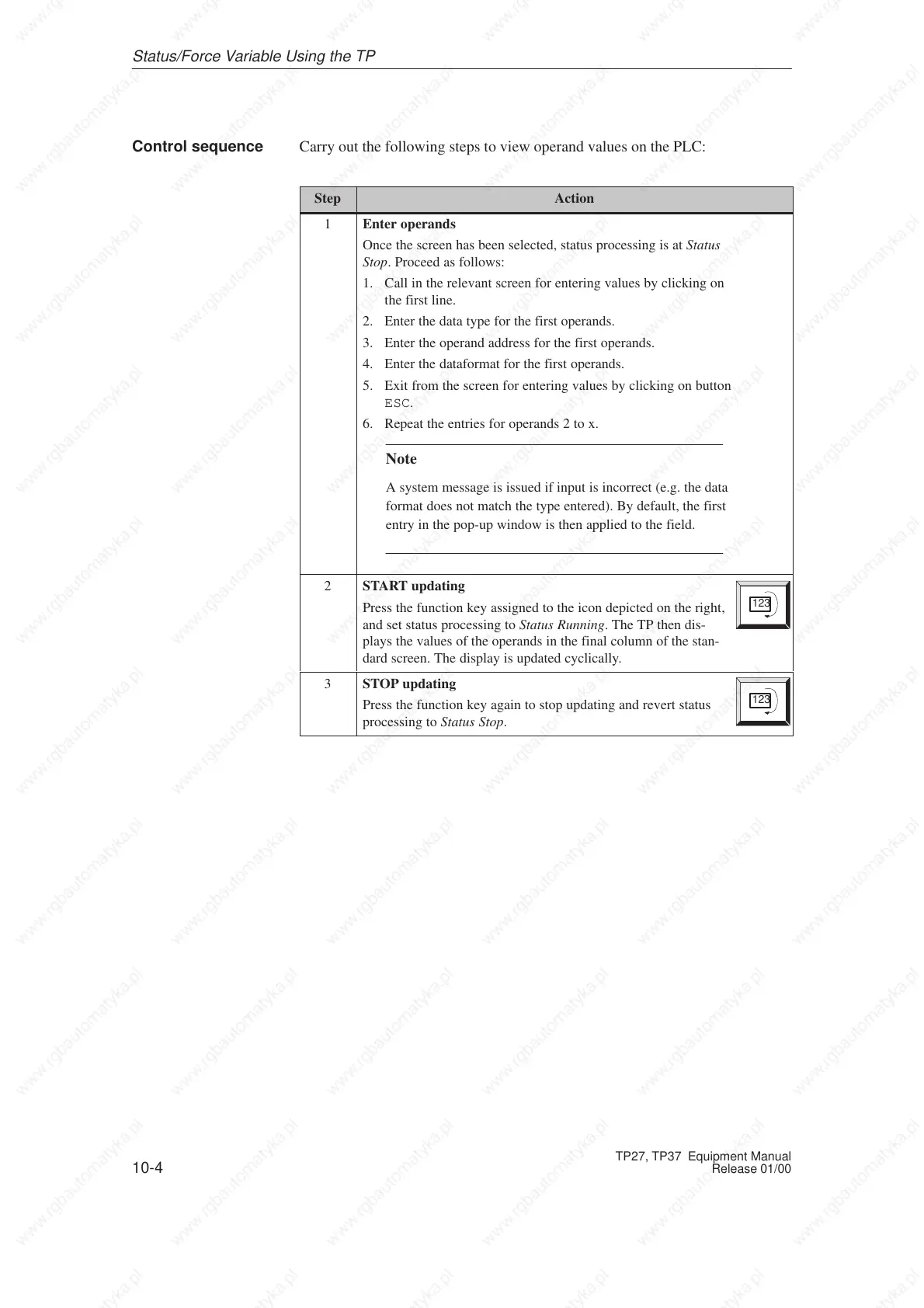

Operands for
SIMATIC S5
Operands for
SIMATIC S7
