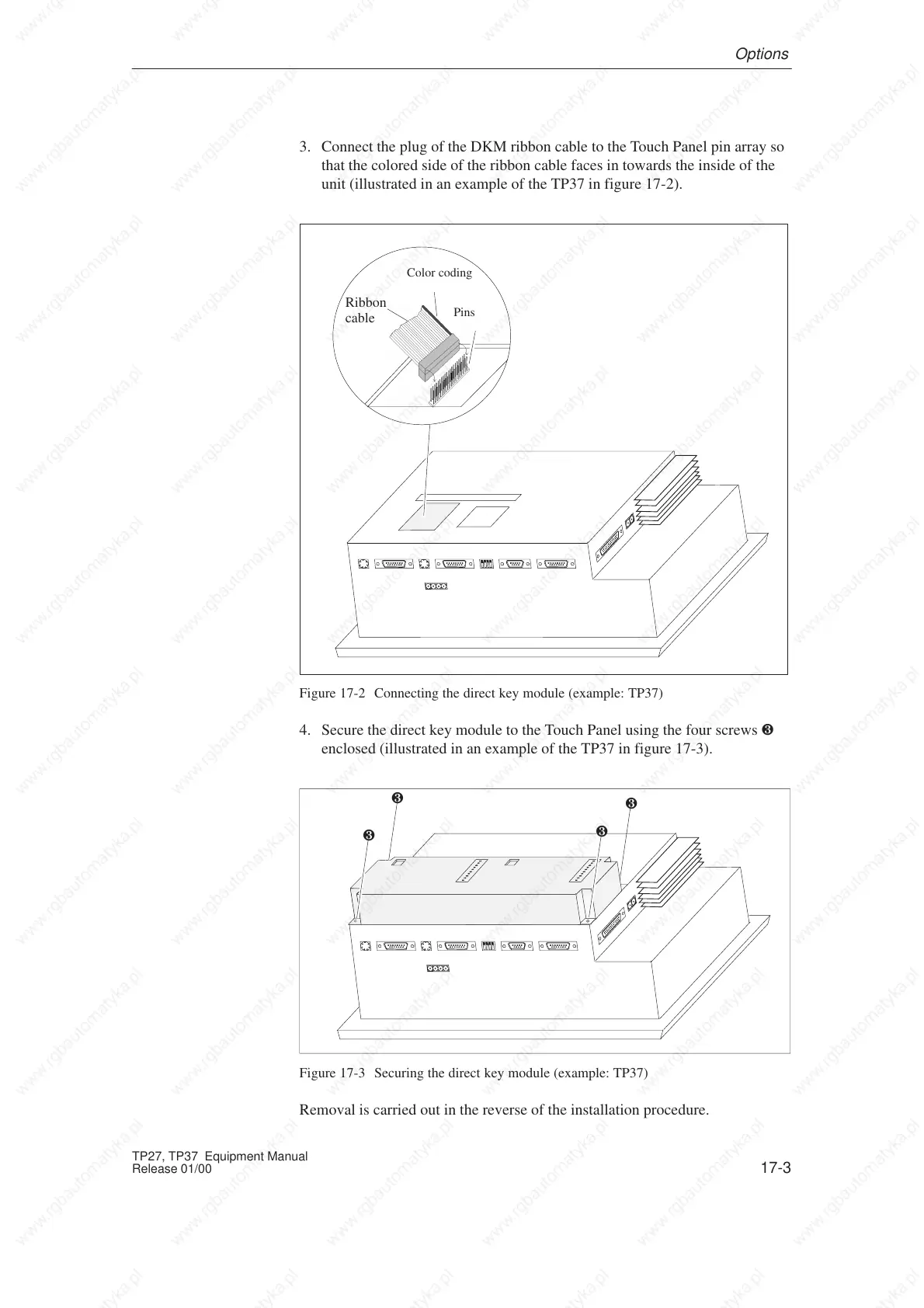

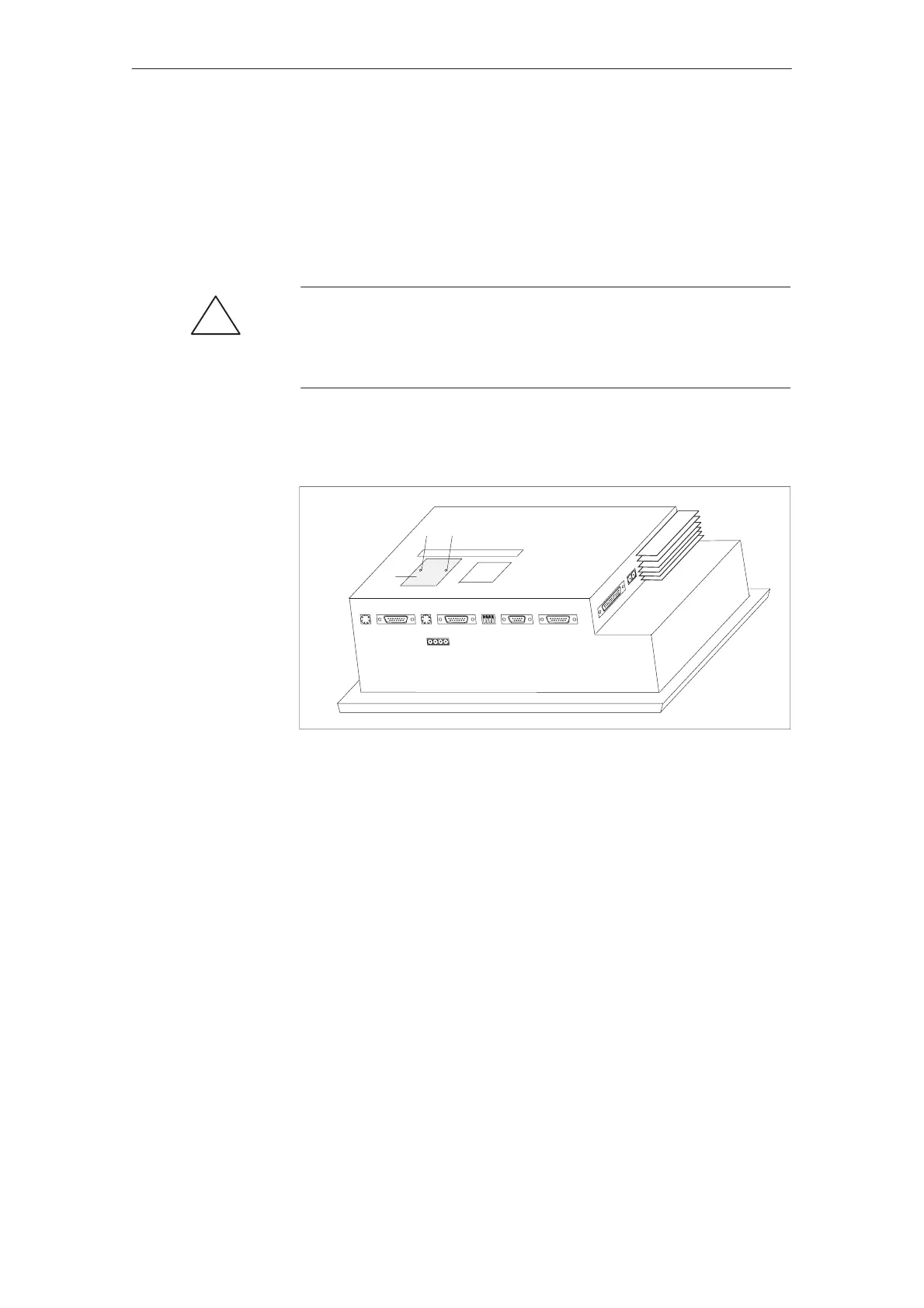

3. Connect the plug of the DKM ribbon cable to the Touch Panel pin array so
that the colored side of the ribbon cable faces in towards the inside of the
unit (illustrated in an example of the TP37 in figure 17-2).
Color coding
Pins
Ribbon
cable
Figure 17-2 Connecting the direct key module (example: TP37)
4. Secure the direct key module to the Touch Panel using the four screws
enclosed (illustrated in an example of the TP37 in figure 17-3).
DKM A
DKM
B
Figure 17-3 Securing the direct key module (example: TP37)
Removal is carried out in the reverse of the installation procedure.
