TP27, TP37 Equipment Manual
Release 01/00
(0) Black:
(1) Blue:
(2) Green:
(3) Cyan:
(6) Yellow:
(4) Red:
(5) Magenta:
(–1) White:
General:
Interface:
Baud rate:
Data bits:
Stop bits:
Timeout (sec):
Parity:
Type:
Printer:
Print Screen:
Printout:
Color:
Bold:
Density:
Needles:
OP Printer OP
<–> Printer<–>
Assign Color
( Value –1 = “No color” )
Printer Settings
ESC
Figure 7-2 Standard screen Printer Settings (example TP37 and TP27-10)
Interface Set printer interface:
IF2 (serial)
LPT (parallel, TP37 only)
Transfer Parameters Standard setting (serial):
BAUD RATE: 9600
DATA BITS: 8
STOP BITS: 1
PARITY: None
TIMEOUT (S): 60
Do not change the parameters unless they do
not match the transfer parameters of your
printer.
Printer Select a printer from the list of configured
printerss.

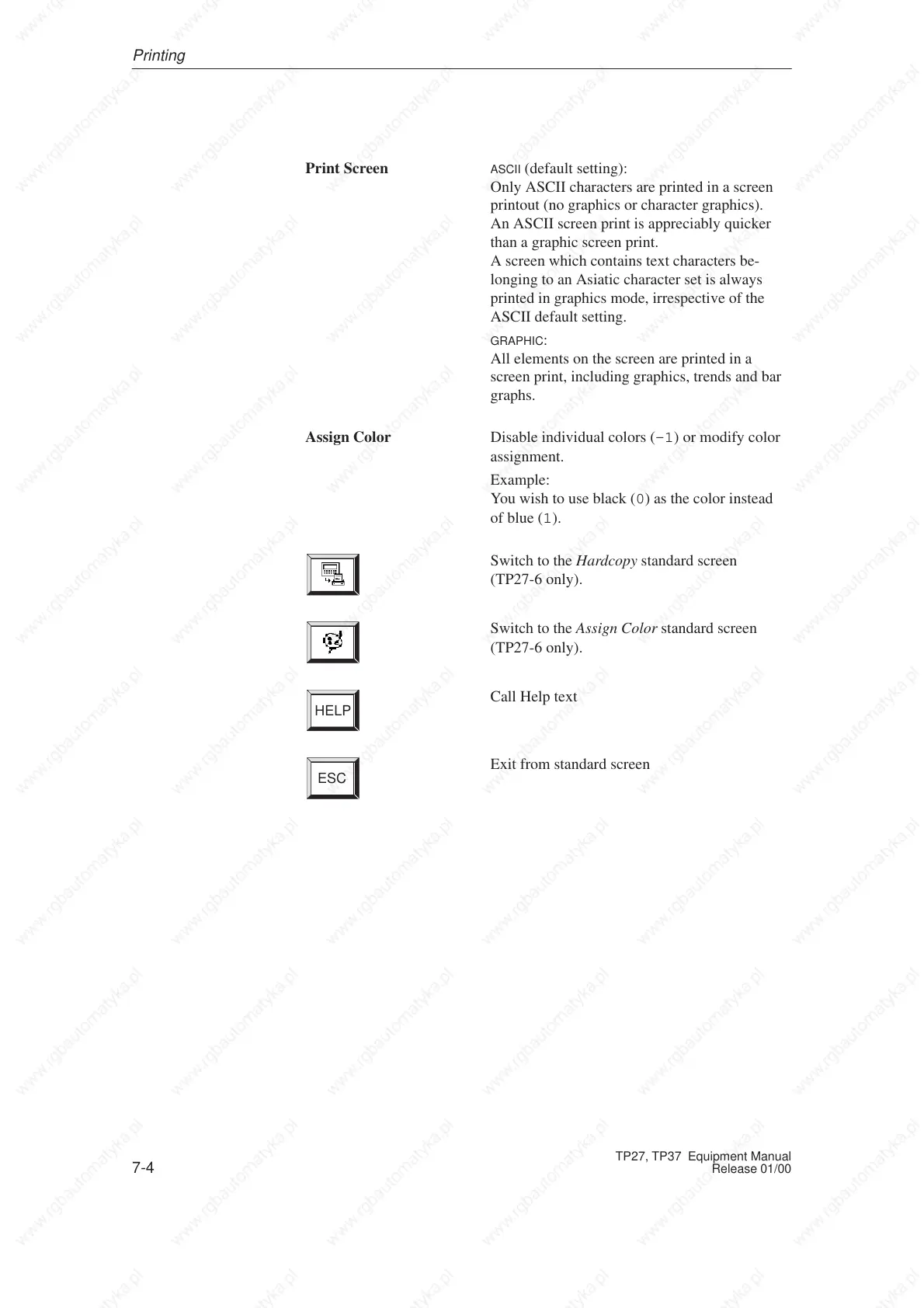

Meaning of
operating elements
Printing
