2.2 Connections and terminal designation
SITOP expansion modules
Equipment Manual, 09.2022, A5E36605235-2-76
25
2.2 Connections and terminal designation
2.2.1 Redundancy modules
2.2.1.1 SITOP RED1200
Note
U
se suitable copper cables that are designed for operating temperatures of at least 90 °C
(UL
508: 60/75 °C).
Connections and terminal designations of redundancy module 6EP4346-7RB00-0AX0
① Input 12 - 48 V supply voltage of power sup-
plies 1 and 2 "DC IN1", "DC IN2"
one spring-loaded terminal each
② Output 12 - 48 V supply voltage to the load /
"DC OUT1"
one spring-loaded terminal each

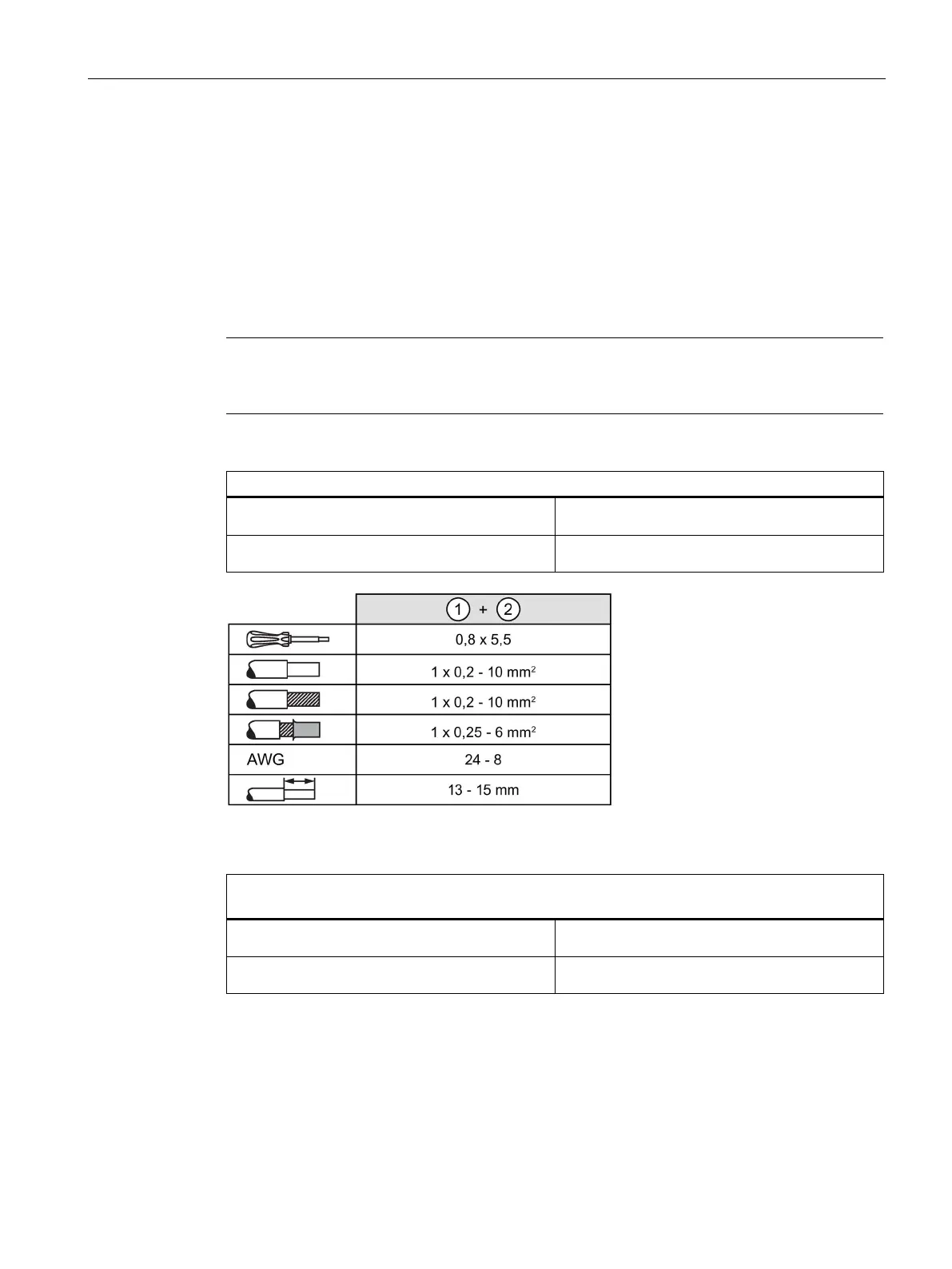

Figure 2-9 Terminal data 6EP4346-7RB00-0AX0
Connections and terminal designations of the redundancy modules 6EP4347-7RB00-0AX0,
6EP4348-7RB00-0AX0 and 6EP4347-7RC00-0AX0
① Input 12 - 48 V supply voltage of power sup-
plies 1 and 2 "DC IN1", "DC IN2"
one spring-loaded terminal each
② Output 12 - 48 V supply voltage to the load /
"DC OUT1"
one spring-loaded terminal each
