Installation
5.2 Output connections
SITOP expansion modules
84 Equipment Manual, 09.2022, A5E36605235-2-76

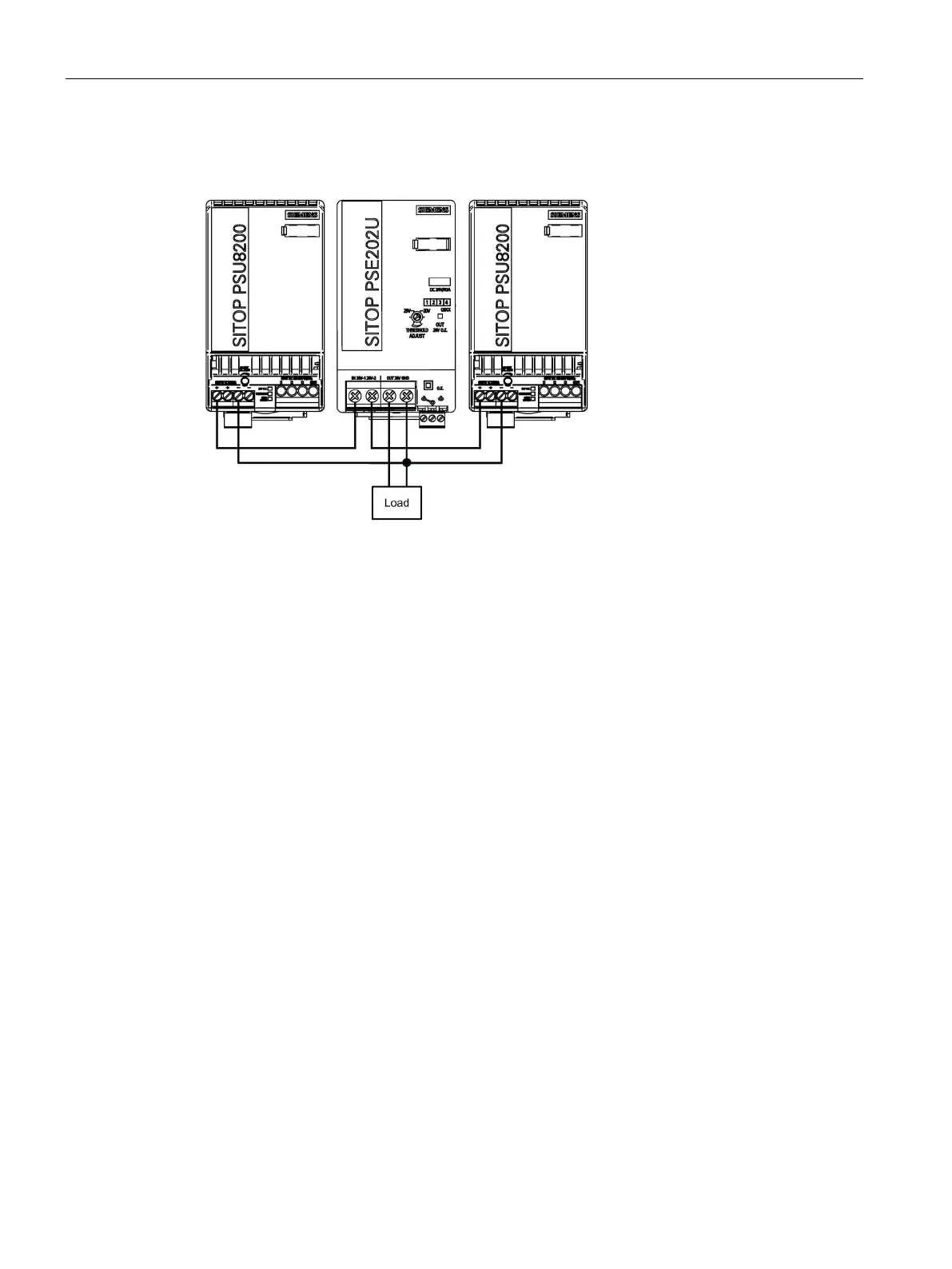

The subsequent wiring is recommended for the 6EP1961-3BA21 to guarantee safe and
reliable operation of the power supplies in all operating states:
Figure 5-16 Wiring note
5.2.2 Buffer modules
5.2.2.1 SITOP BUF1200
See SITOP BUF1200 (Page 76)
5.2.2.2 SITOP PSE201U
See SITOP PSE201U (Page 76)
