5.2 Output connections
5.2.1 Redundancy modules
5.2.1.1 SITOP RED1200
Output "DC OUT1" of the redundancy module must be connected to the load.
See Figure 5-1 Input/output (Page 74).
The subsequent wiring is recommended to guarantee safe and reliable operation of the
power supplies in all operating states:

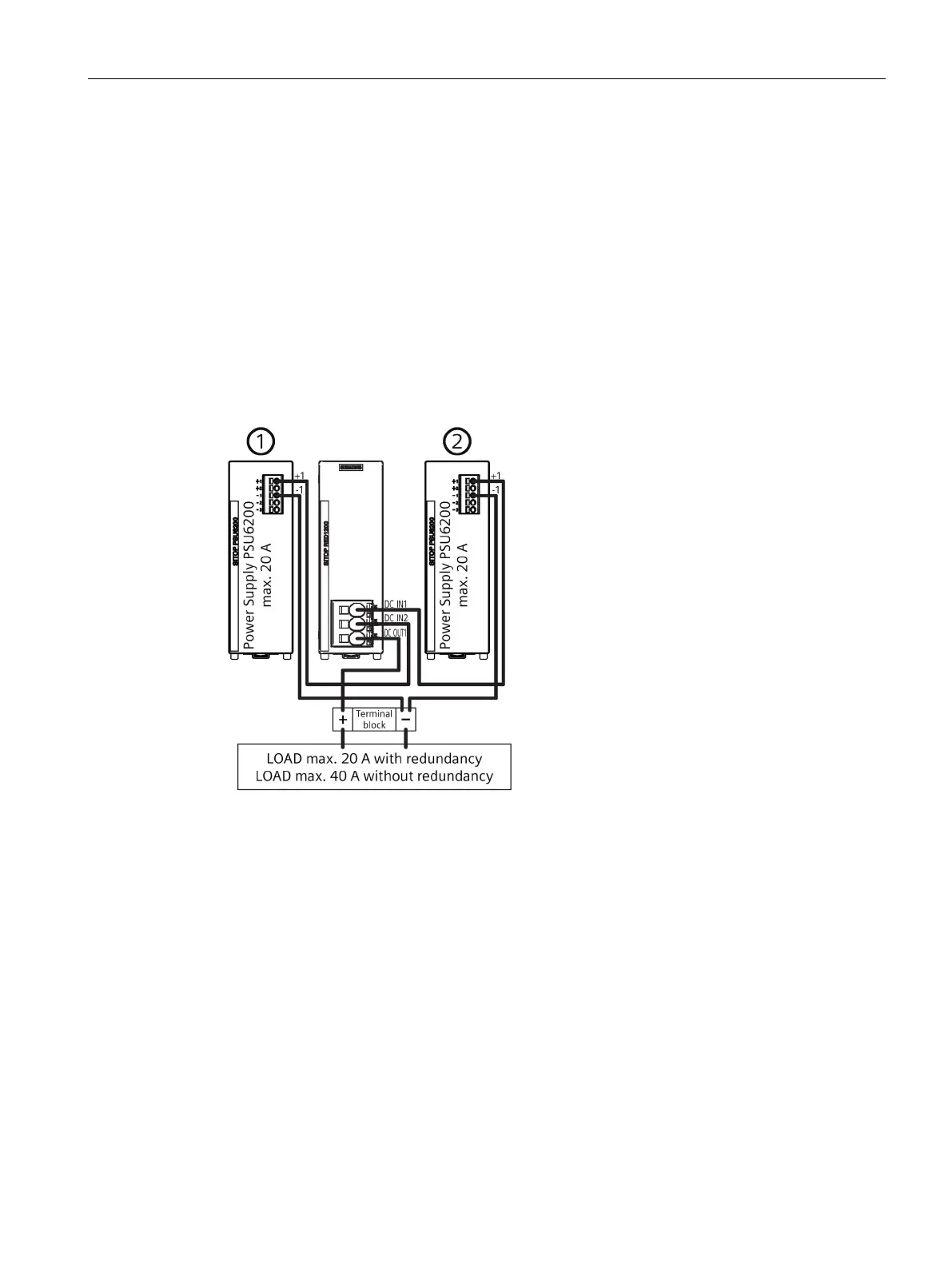

Figure 5-9 Wiring 1 module (2 × 20 A)
