Mounting/removal
3.1 Redundancy modules
SITOP expansion modules
Equipment Manual, 09.2022, A5E36605235-2-76
47
3.1.2 6EP1961-3BA21
The device can be mounted in a control cabinet on standard mounting rails (see Chapter
Mechanical system (Page 93))
Mounting
To mount the device, position it with the mounting rail guide at the upper edge of the
standard mounting rail and press down to lock it into place. If this is too difficult, press slider
⑥ at the same time, as described under "Removal".
Removing
To remove, pull up the slider ⑥ using a screwdriver (see Figure 3-2 Mounting/removal
(Page 47)) and disengage the device at the bottom edge of the standard mounting rail. Then
you can remove the device from the upper edge of the standard mounting rail.

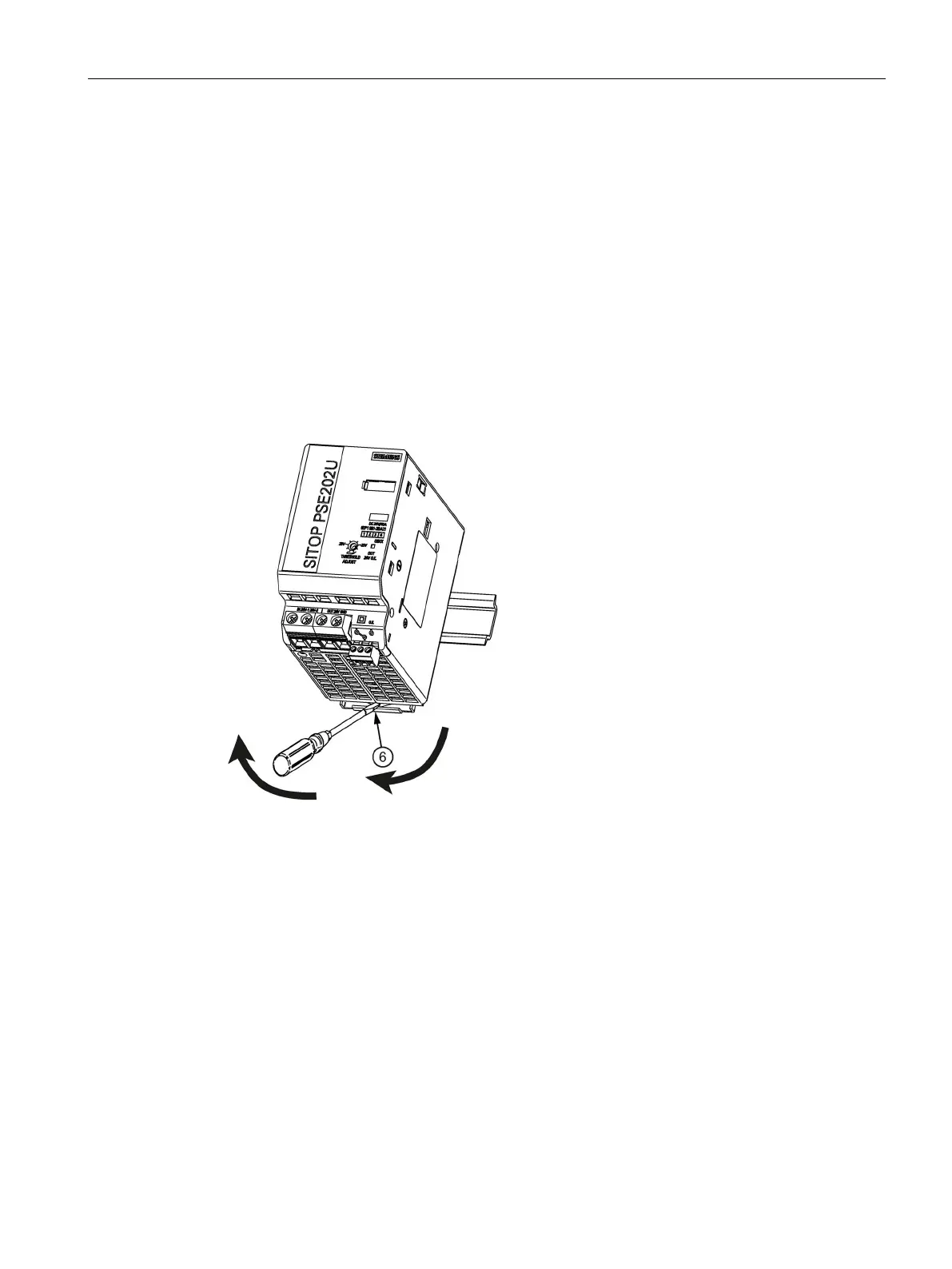

Figure 3-2 Mounting/removal
