Installation
128/214 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • 861-9601.9
Installing the bus
sectionalizer
➭ Fasten the connection flange to the terminal of the pole supporting plate using 4 cheese
head bolts and conical spring washers each. Tightening torque: 20 Nm.
➭ Bolt the bus sectionalizer housing together with the pole supporting plate. Observe that a
sealing ring is inserted between the bus sectionalizer housing and the pole supporting plate.

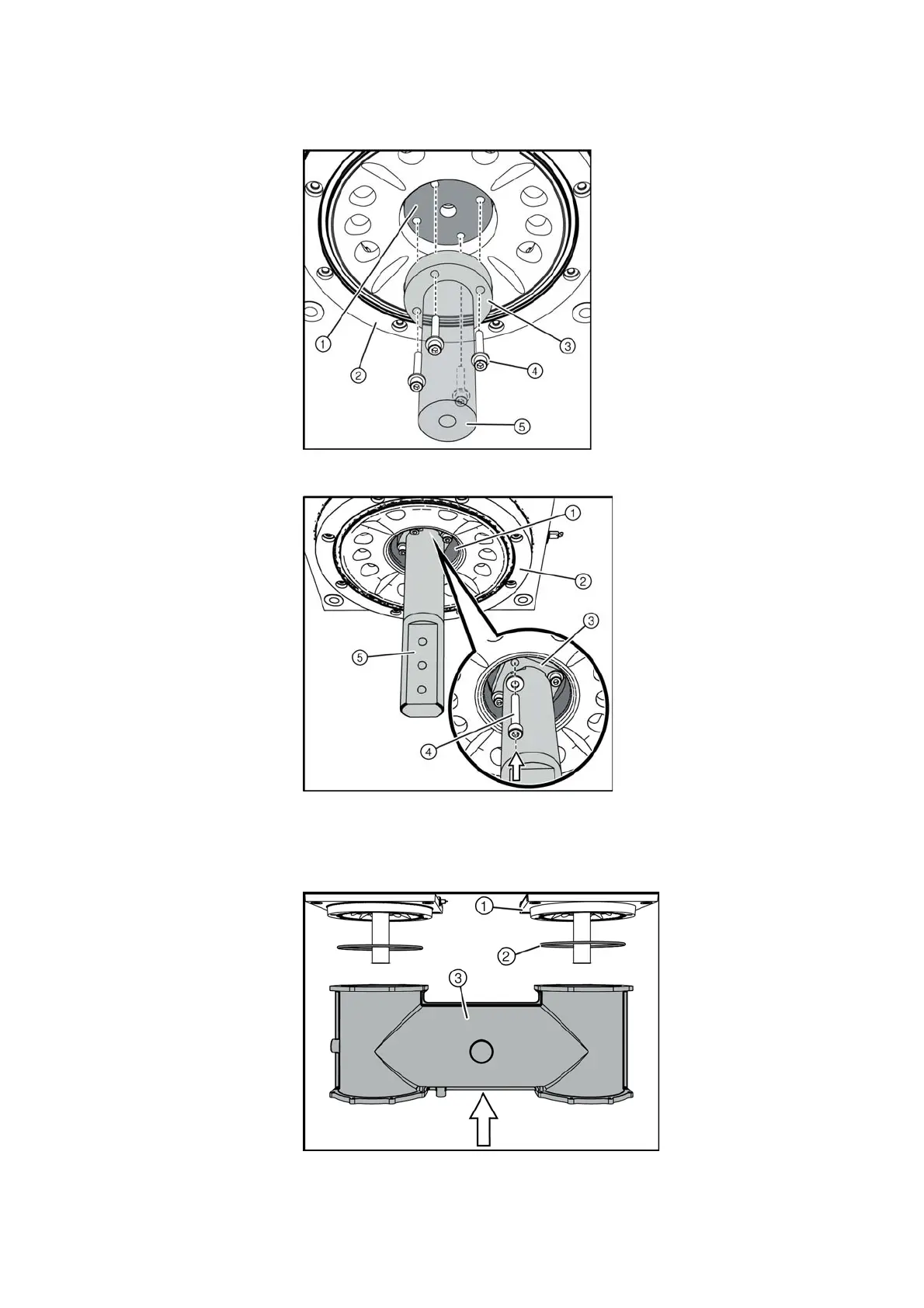

Fig. 151: Connection flange for 1250 A version
①
Terminal
②
Pole supporting plate
③
Connection flange
④
Cheese head bolt with hexagon
socket M8x50 and conical spring washer
⑤
Contact stud of the terminal
Fig. 152: Connection flange for 3150 A version
①
Pole supporting plate
②
Sealing ring (O-ring)
③
Bus sectionalizer housing
