➭ Fasten the retainers for the rear walls to the fixing cross members, cross members and
supports using bolts M6x16. Tightening torque: 12 Nm.
➭ Fasten the retainers on end panels ① , ④ using 5 bolts. Fasten the retainers on
intermediate panels ② , ③ using 10 bolts.

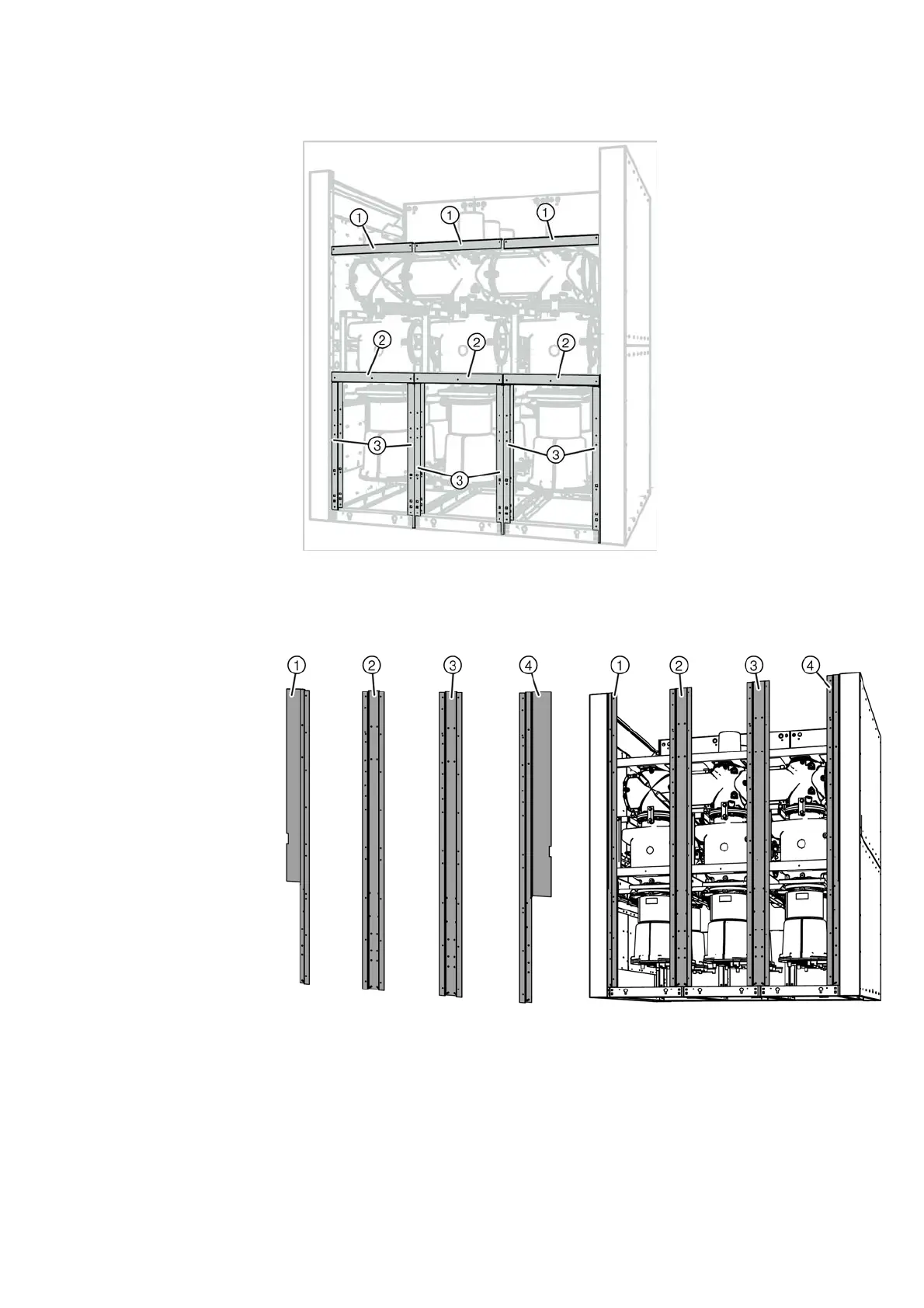

Fig. 165: Number of bolts for retainers
①
Fixing cross member
②
Cross member (rear-top)
③
Support (vertical)
Fig. 166: Retainers for the rear walls
①
Retainer for right end panel
③
Retainer for intermediate panel
②
Retainer for intermediate panel
④
Retainer for left end panel
