Installation

146/214 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • 861-9601.9

➭ Mount lower end wall.

➭ Fasten the upper end wall with 22 self-tapping bolts.

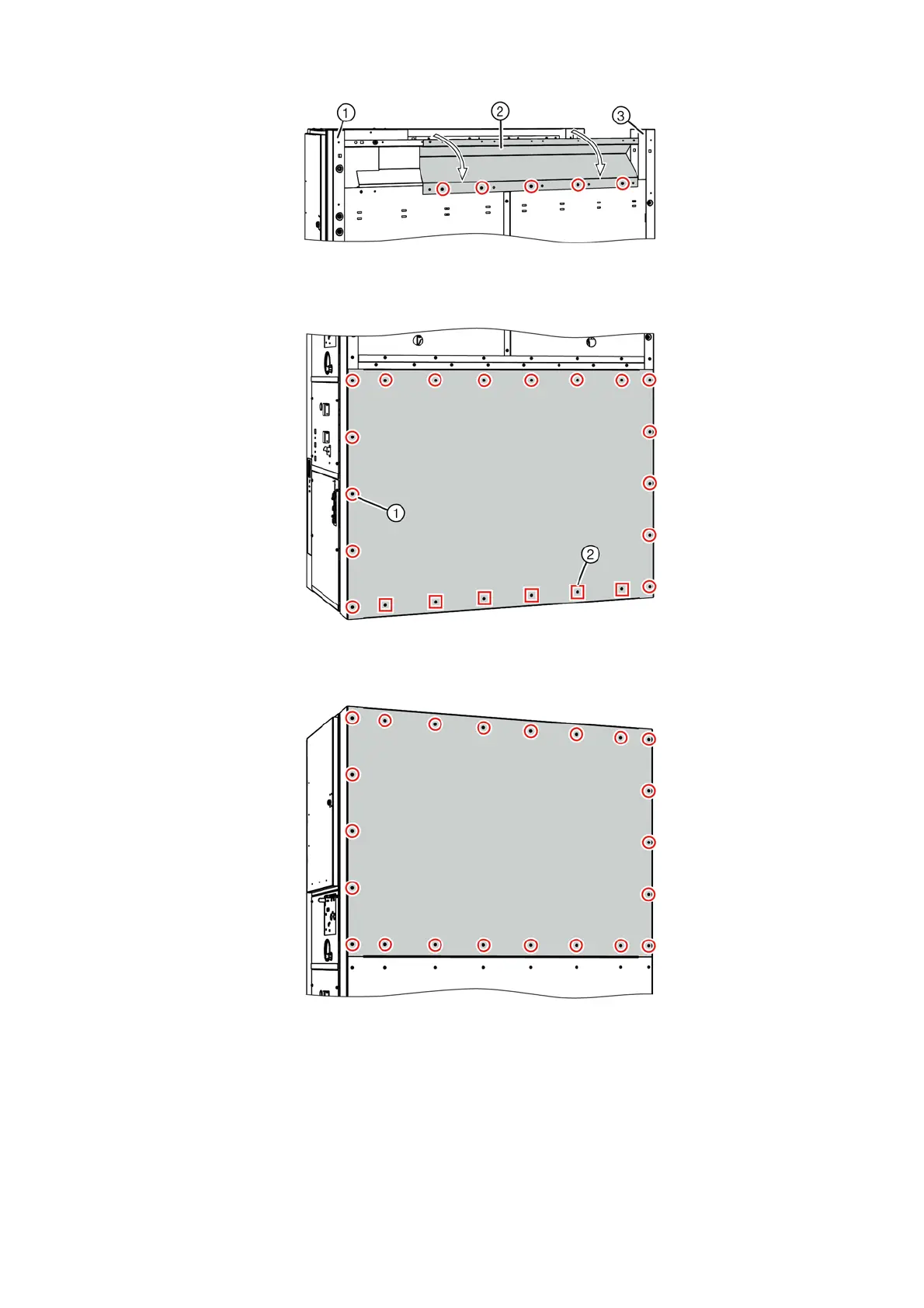

Fig. 179: Fixing points for long air guide

①

Front end cover

②

Long air guide

③

Rear end cover

Fig. 180: Fixing points for lower end wall

①

Self-tapping bolts

M6x16 (16x)

②

Close the holes with

sealing stoppers (6x)

Fig. 181: Fixing points for upper end wall
