861-9601.9 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • Revision 11 145/214
Installation
➭ Fasten 2 arc protection walls at the bottom with self-tapping bolts M6x16.
➭ Slide the cross bracing between the end covers and the arc protection walls, and bolt
together.
➭ Tighten the bolted joints of the upper and lower arc protection walls.
➭ Mount short air guide from inside and long air guide from outside.

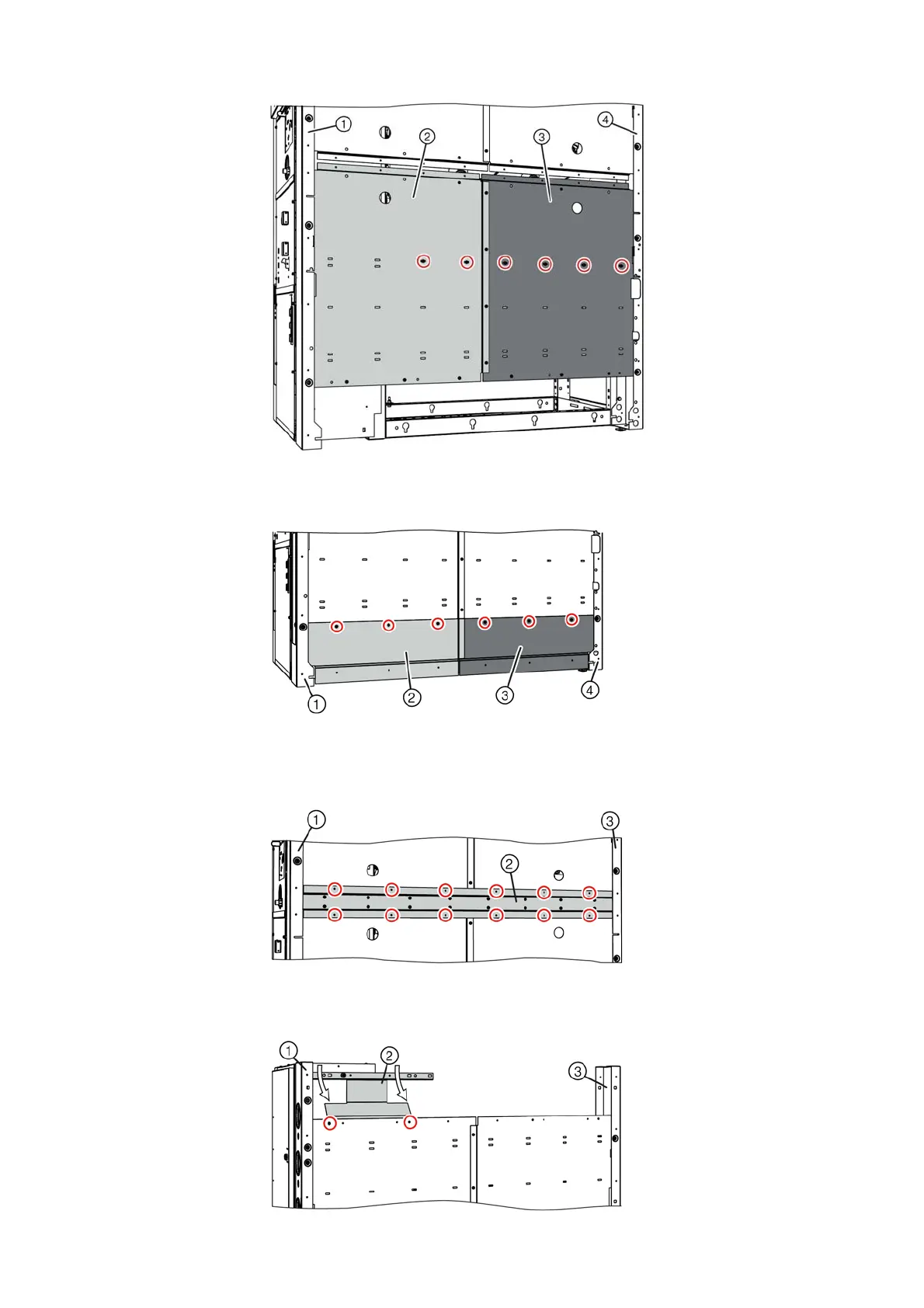

Fig. 176: Fixing points for central arc protection walls
①
Front end cover
②
Middle left
arc protection wall
③
Middle right
arc protection wall
④
Rear end cover
Fig. 177: Fixing points for lower arc protection walls
①
Front end cover
②
Upper left arc protection wall
③
Right-hand arc protection wall
④
Rear end cover
①
Front end cover
②
Cross bracing
③
Rear end cover
Fig. 178: Fixing points for short air guide
①
Front end cover
②
Short air guide
③
Rear end cover
