Installation
144/214 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • 861-9601.9
➭ Tighten all bolts at the termination plate and the front end cover.
➭ Bolt the rear end cover to the frame using 3 bolts M8x20.
➭ Hook in the upper arc protection walls, and fix loosely using bolts.
➭ Hook in the upper arc protection walls, and fix loosely using bolts.

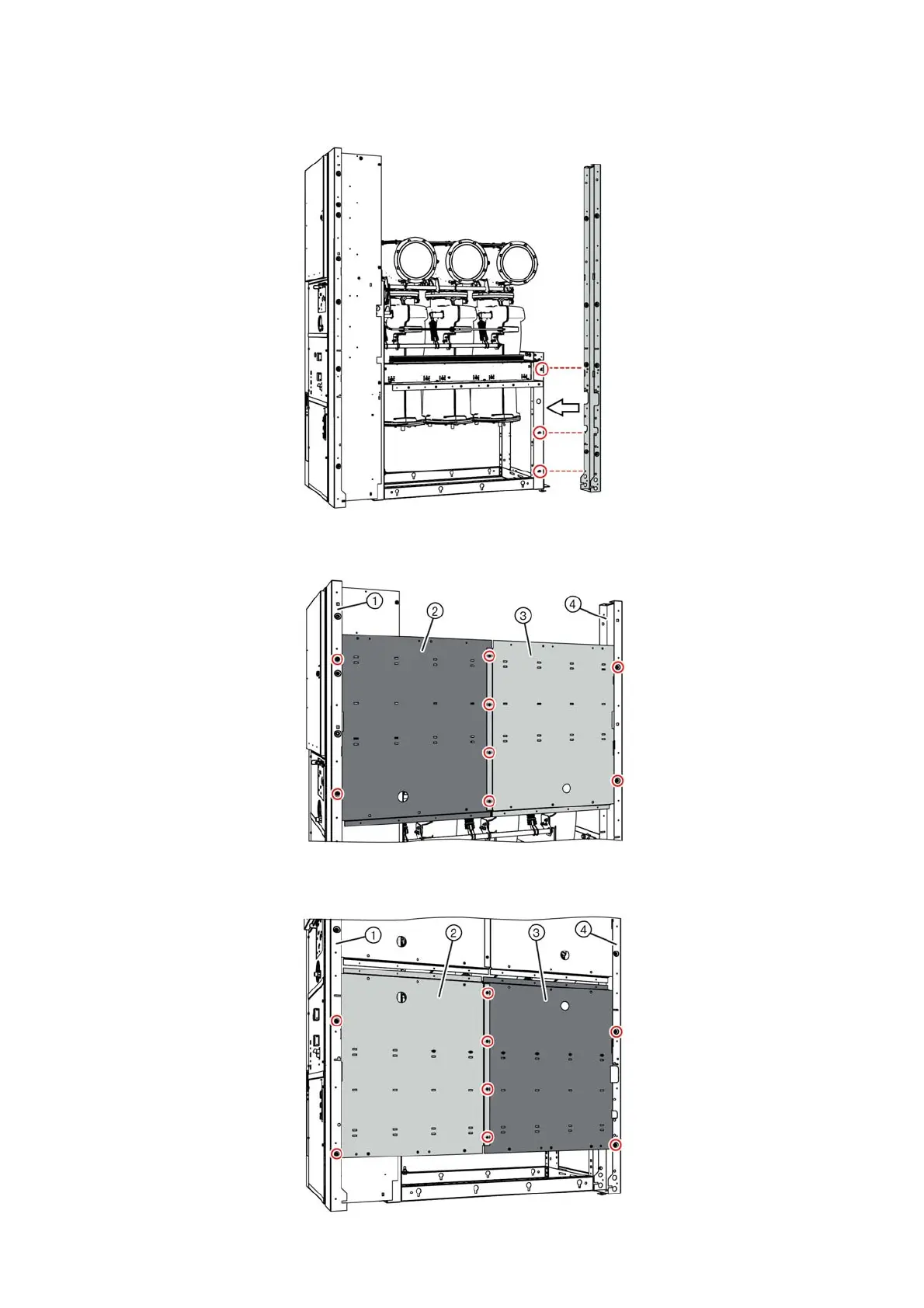

Fig. 173: Fixing points for rear end cover
Fig. 174: Fixing points for upper arc protection walls
①
Front end cover
②
Middle left arc protection wall
③
Middle right arc protection
wall
④
Rear end cover
Fig. 175: Fixing points for central arc protection walls
①
Front end cover
②
Middle left arc protection wall
③
Middle right arc protection wall
④
Rear end cover
