Operation

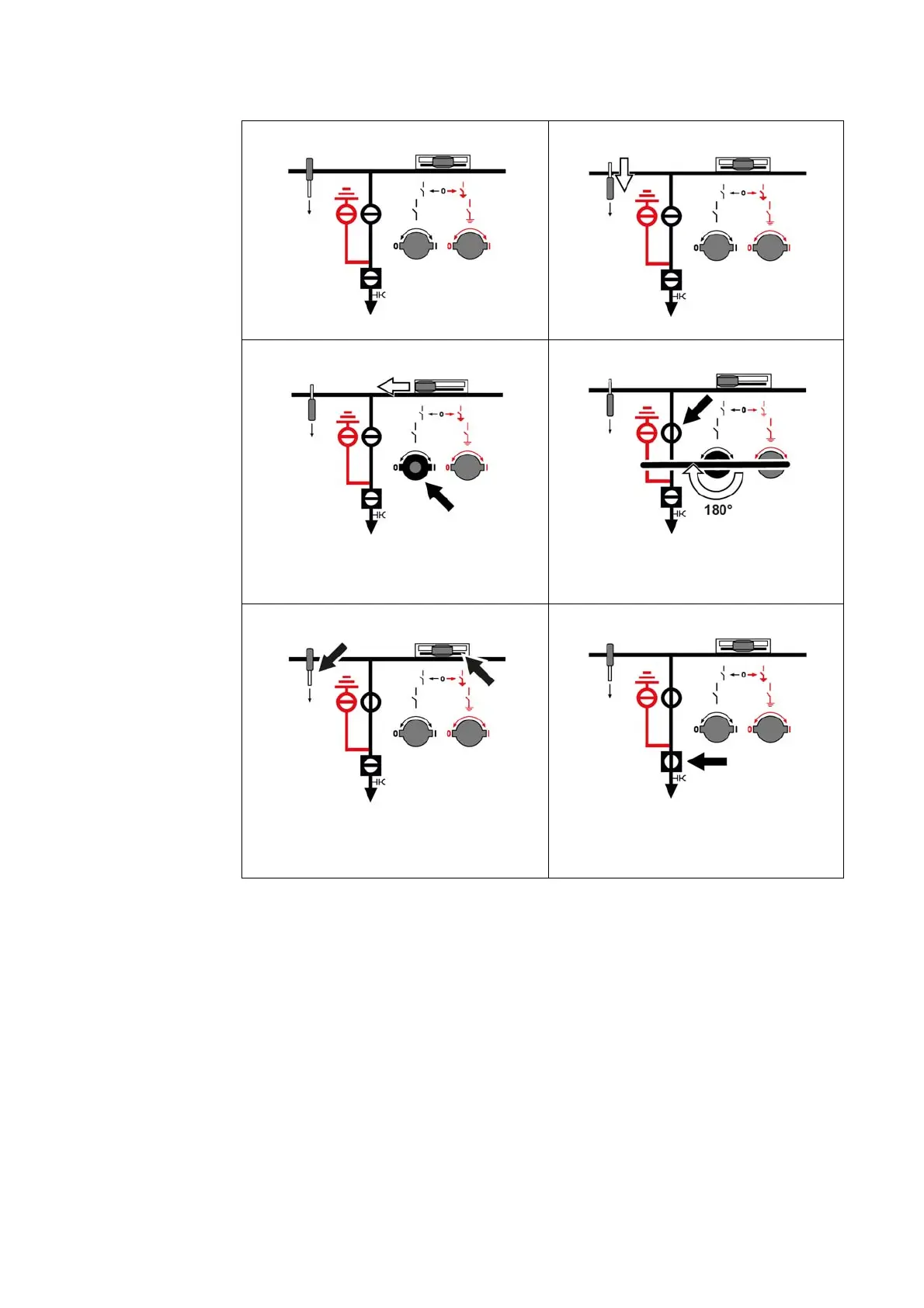

Connecting the feeder to the busbar
1
Initial situation
2
➭ Push the interrogation lever downwards.
3
➭ Push the control gate to the left.
4
➭ Switch the three-position disconnector to
CLOSED position (insert the operating lever for
the DISCONNECTING function and turn 180°
clockwise).
5
➭ Remove the operating lever for the
DISCONNECTING function.
The interrogation lever and the control gate return to
their initial position.
6
➭ Close the circuit-breaker.
