Siemens 8DA10 Series - Disconnecting the Feeder from the Busbar

Operation
160/214 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • 861-9601.9

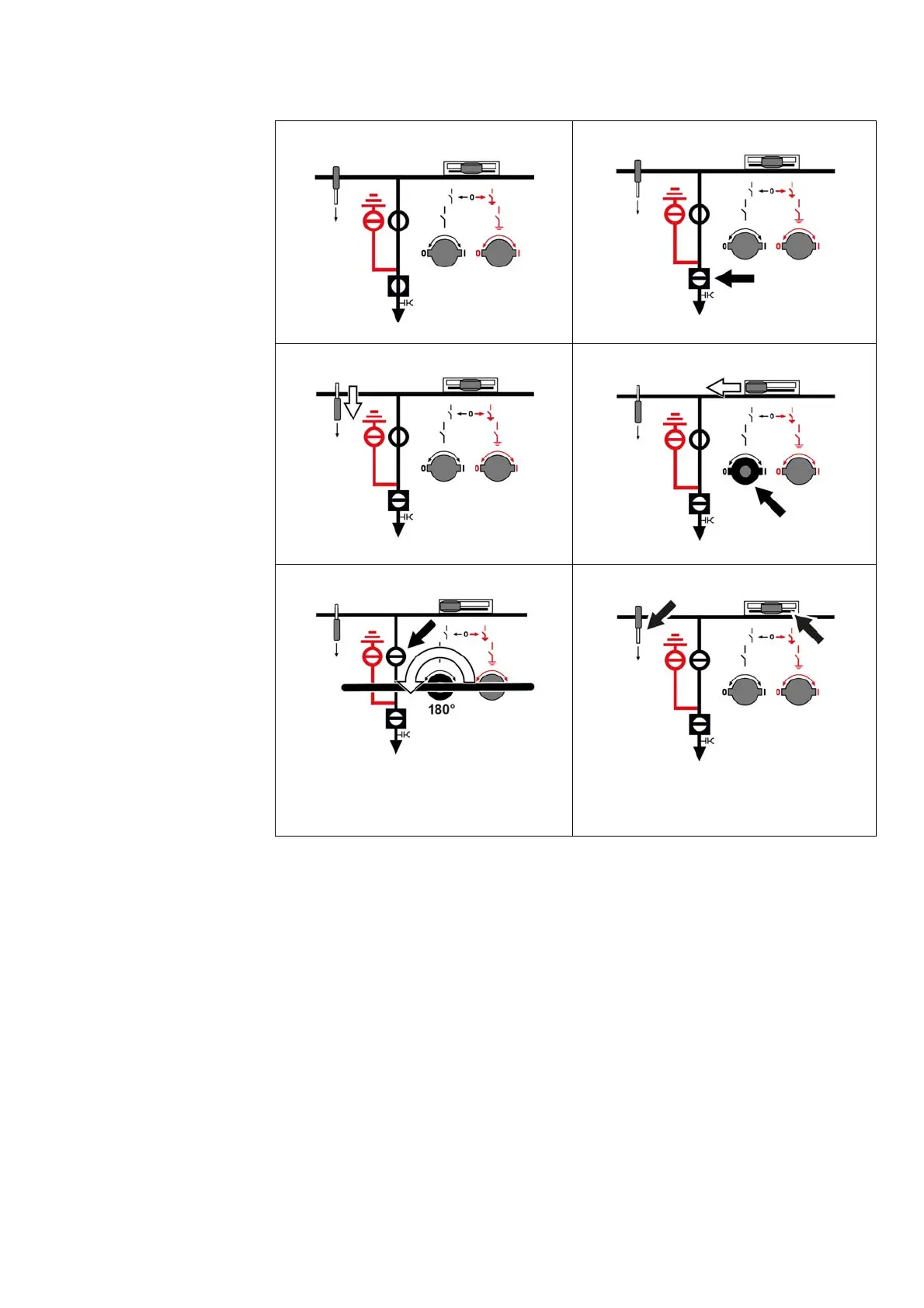

Disconnecting the feeder from the busbar
1
Initial situation
2
➭ Open the circuit-breaker.
3
➭ Push the interrogation lever downwards.
4
➭ Push the control gate to the left.
5
➭ Switch the three-position disconnector to OPEN
position (insert the operating lever for the
DISCONNECTING function and turn 180° counter-
clockwise).
6
➭ Remove the operating lever for the
DISCONNECTING function.
The interrogation lever and the control gate return to
their initial position.
