861-9601.9 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • Revision 11 173/214

Operation

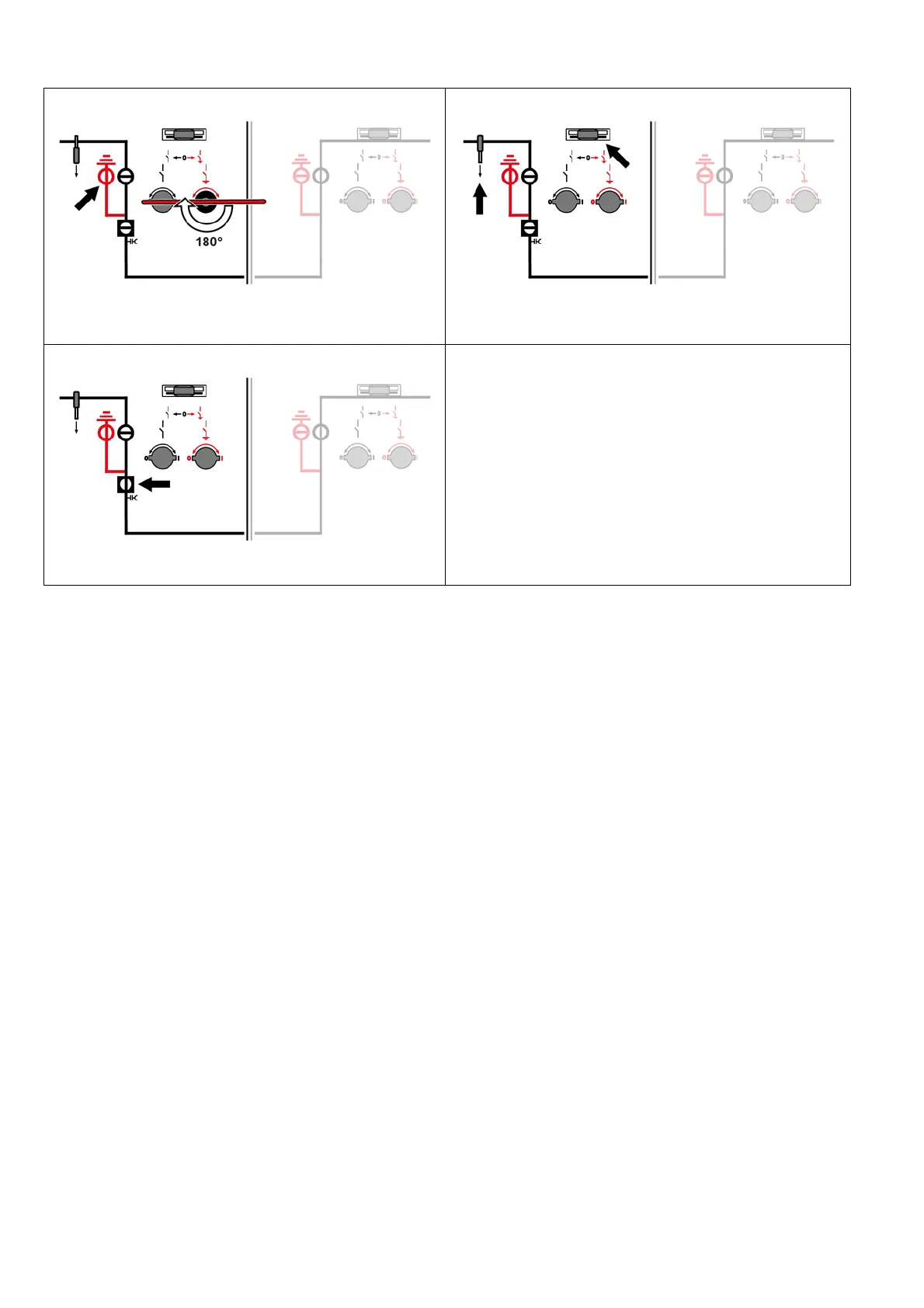

➭ Switch the left-hand three-position disconnector to READY-TO-EARTH

position (insert the operating lever for the READY-TO-EARTH function

and turn 180° clockwise).

➭ Remove the operating lever for the READY-TO-EARTH function.

The interrogation lever and the left-hand control gate return to their initial

position.

➭ Close the circuit-breaker to earth busbar section 2.

➭ Lock the circuit-breaker.
