42 3D Reconstruction Upgrade Part 2
ARCADIS Orbic SPR2-320.814.02.01.02 Siemens AG
01.05 CS SD 24
Page 42 of 46
Medical Solutions

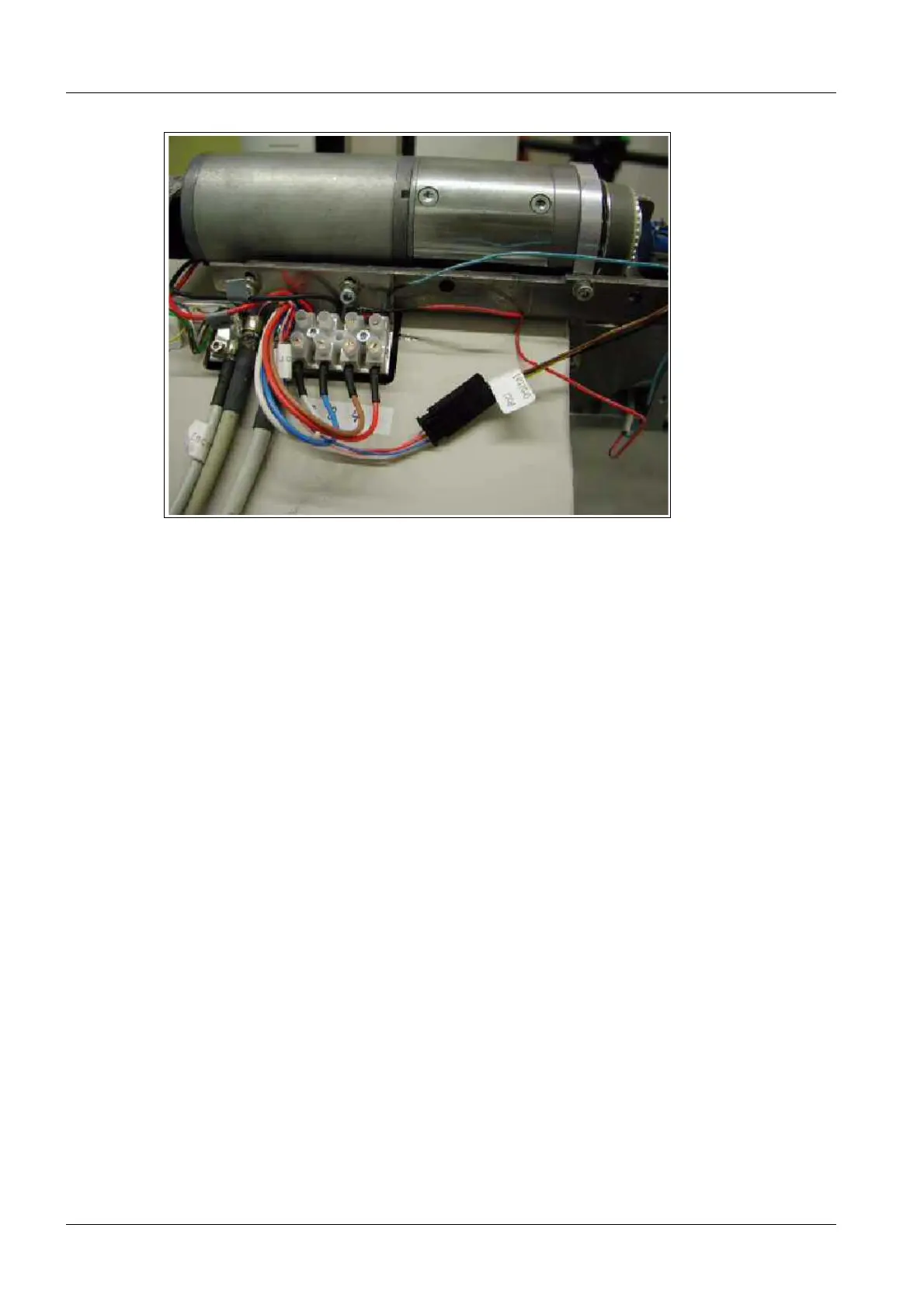

Fig. 44: Connecting the terminal block
• Clamp the red cable of the coupling unit to terminal block 3.
• Clamp the blue cable of the coupling unit to terminal block 4.
