Siemens ARCADIS Orbic - Page 41

Siemens AG SPR2-320.814.02.01.02 ARCADIS Orbic
01.05 CS SD 24
3D Reconstruction Upgrade Part 2 41
Page 41 of 46
Medical Solutions

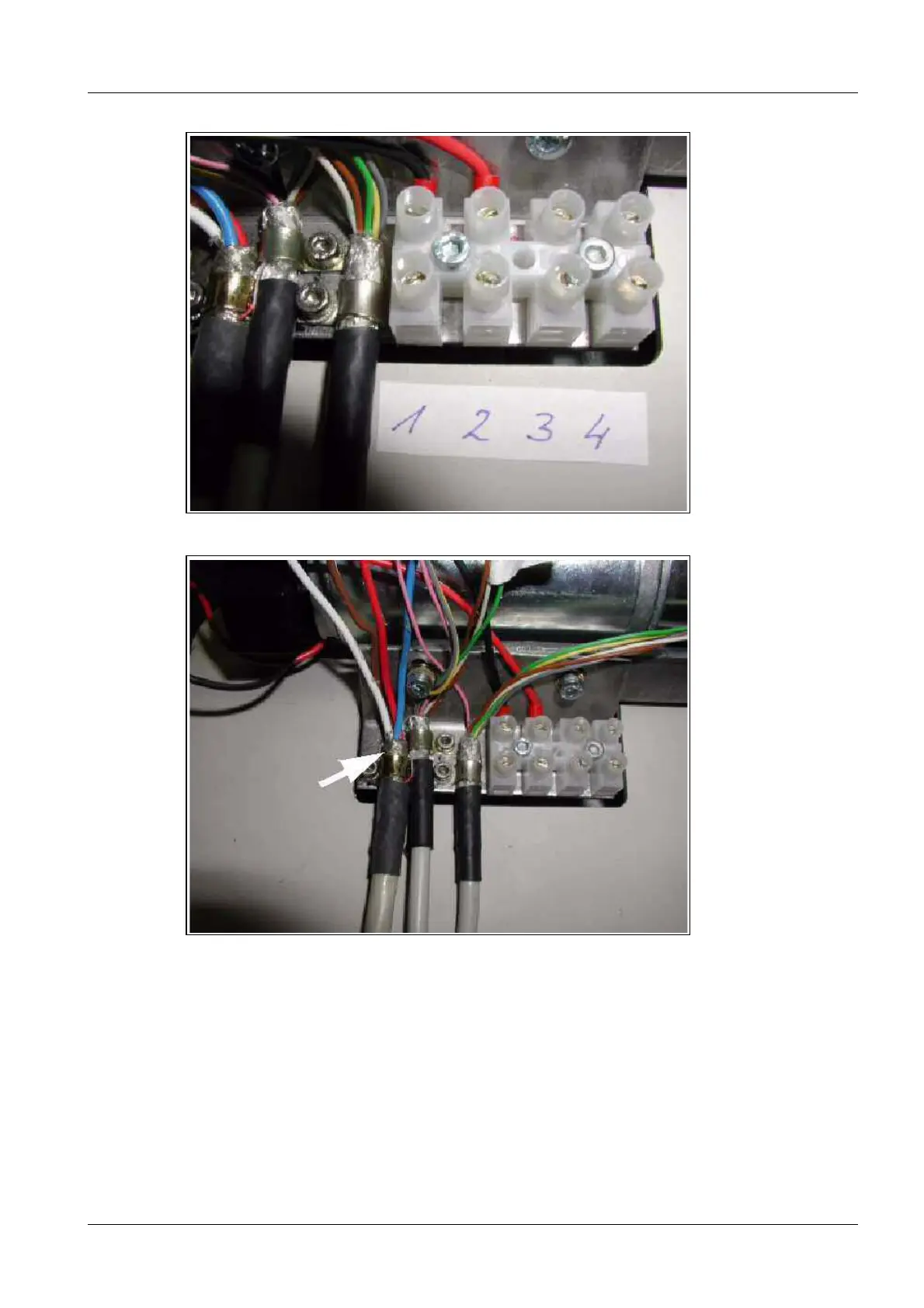

Fig. 42: Terminal blocks
Fig. 43: Shielding
• Secure the shielding and attach it with screws (Fig. 45 / p. 43).
• Connect cables 1 through 4 to terminal blocks 1 through 4 ((Fig. 44 / p. 42) and
(Fig. 46 / p. 43)).
