40 3D Reconstruction Upgrade Part 2
ARCADIS Orbic SPR2-320.814.02.01.02 Siemens AG
01.05 CS SD 24
Page 40 of 46
Medical Solutions

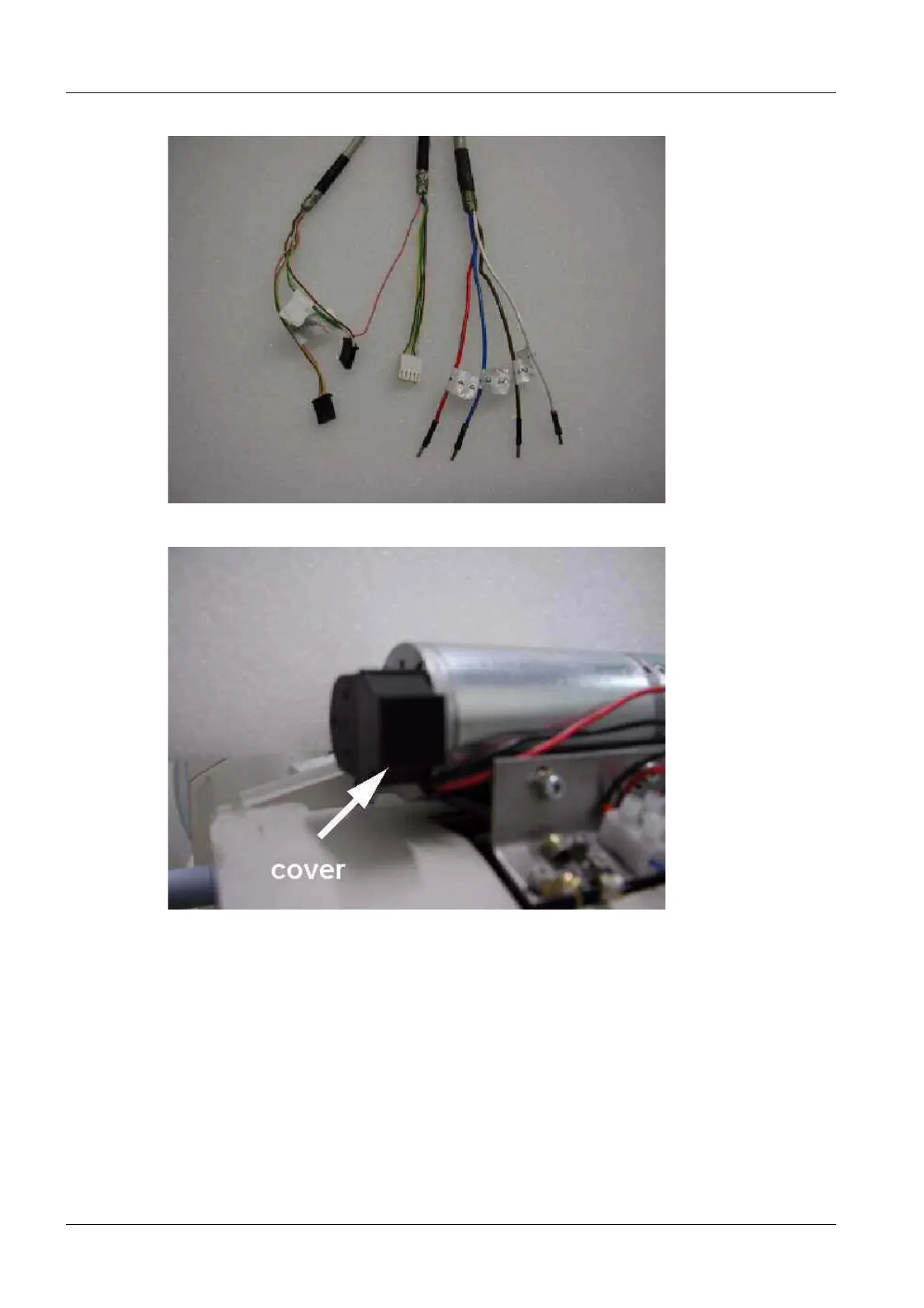

Fig. 40: Connectors_cable set for orbital drive
Fig. 41: Plug in encoder
• Remove the cover from the encoder (Fig. 43 / p. 41).
• (Fig. 42 / p. 41) shows the plugs from the limit switch cable of the orbital drive.
• Connect the encoder plug of the encoder cable to the encoder plug under the cover.
• Connect the angulation plug of the cable of the angulation part to the X4 plug of the or-
bital drive cable set.
• Connect the limit switch plug of the limit switch cable to the limit switch plug of the orbit-
al drive.
