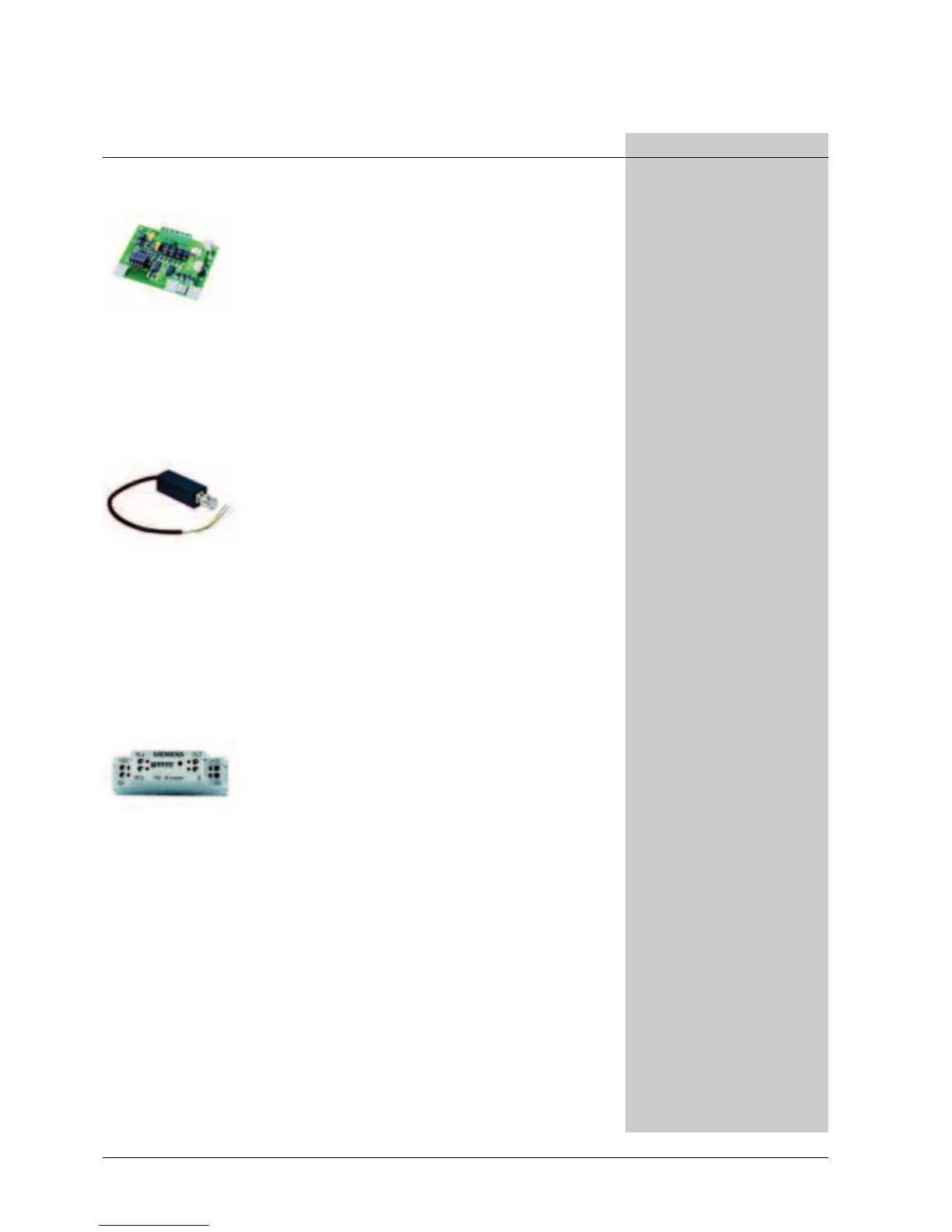

Siemens CRT

Video Transmission
Twisted Pair/Coax
7-2 © Siemens Building Technologies Group
Type Order No.
CTTT0111
Twisted Pair Transmitter Module
Twisted pair transmitter module for installation in the CHM/CHH‚ ECH-
M/ECH-B‚ CHxx‚ CHSM2510‚ CHSL2610 camera protective housings and
P/T Telemetry Receivers CDC0501/CDC0502.
Overvoltage protection Twisted pair with gas discharge pro-
tection
Video output (two-wire) 2 Vpp‚ 130 Ohm‚ symmetric‚ screw
terminal
Range Up to 1.2 km twisted pair depend-
ing on TP receiver type
Dimensions (W x H x D) 50 x 15 x 65 mm
Power requirements 12 V DC‚ 45 mA
Weight 0.02 kg
2GF1714-8WN
TP-TXI1
Indoor Twisted Pair Video Transmitter
Transmission of one twisted pair video signal in indoor applications.
Can be used with the indoor twisted pair receiver TP-RXI1‚ with a range
of up to 600 m. Compact design‚ plastic housing with BNC video input
and 10 cm open end twisted pair cable. Simple installation: snap on
camera BNC video output. No additional measuring instruments
required.
Video input (composite) 1 Vpp‚ 75 Ohm‚ asymmetric‚ BNC
Video output (two-wire) 2 Vpp‚ 130 Ohm‚ symmetric‚ open
end
Range Max. 600 m (indoor only)
Dimensions (W x H x D) 80 x 22 x 22 mm
Weight 0.20 kg
Power requirements 12 V DC
Power consumption 0.5 W
2GF5605-8AA
TP-RXI1
Indoor Twisted Pair Video Receiver
Reception of one twisted pair video signal in indoor applications. Can
be used with the indoor twisted pair transmitter TP-TXI1‚ with a range
of up to 600 m. Compact design‚ plastic housing with screw terminals
and dip-switch setup. Simple installation: in standard distribution boxes
and cabinets‚ can be snapped onto EN rails. Fast‚ easy adjustment of the
transmission line using DIP switches‚ no additional measuring instru-
ments required.
Video input (two-wire) 2 Vpp‚ 130 Ohm‚ symmetric‚ screw
terminal
Video output (composite) 1 Vpp‚ 75 Ohm‚ asymmetric‚ screw
terminal
Range Max. 600 m (indoor only)
Dimensions (W x H x D) 80 x 20 x 70 mm
Weight 0.20 kg
Power requirements 12 V DC
Power consumption 0.75 W
2GF5605-8BB
