Matrix Switching Systems
Matrix Switchers
10-2 © Siemens Building Technologies Group
Type Order No.

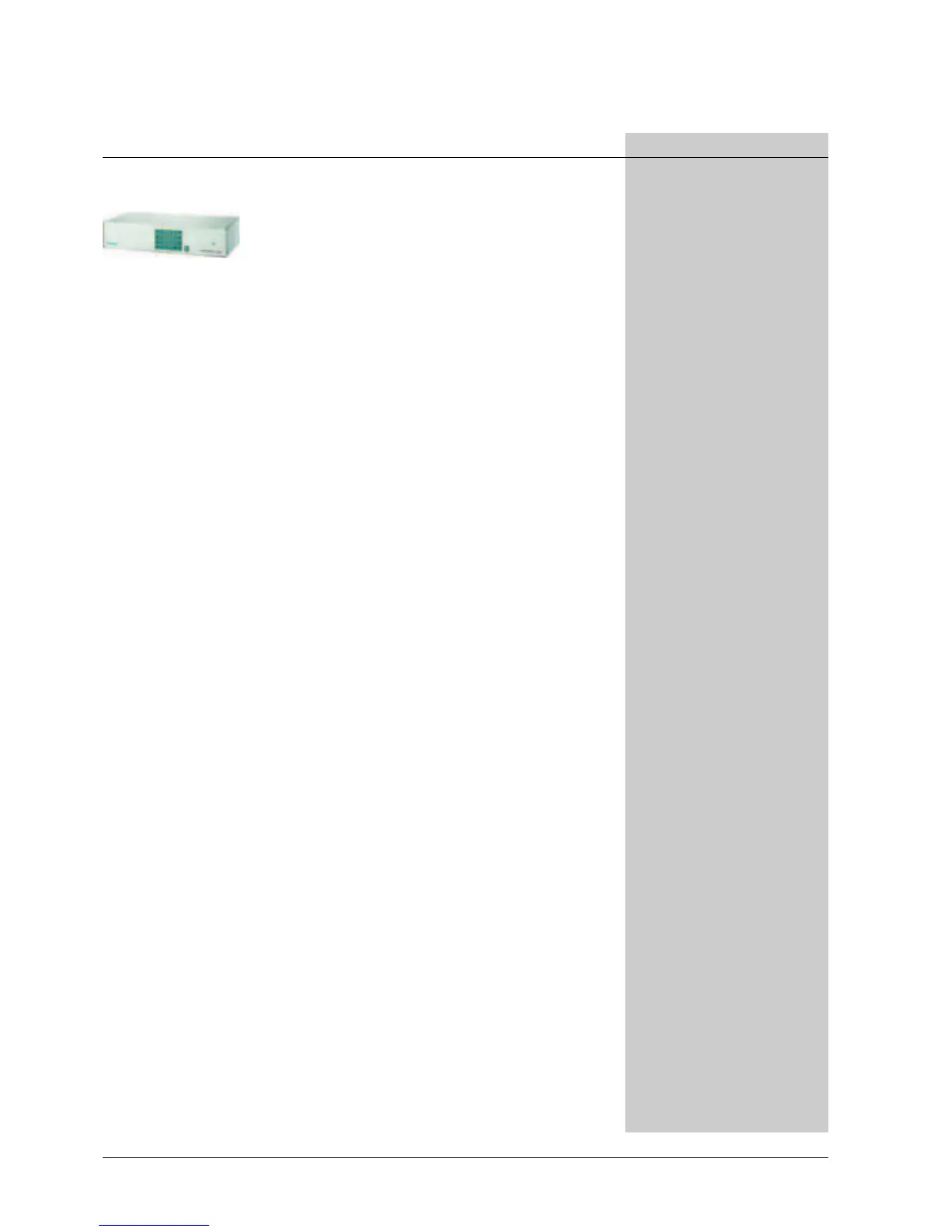

SIMATRIX 164
Compact Video Matrix 16x4‚ Non-Expandable
The SIMATRIX 164 video matrix consists of a matrix unit with integral
front panel keyboard control. SIMATRIX 164 allows the connection of
up to 16 video inputs switched to a maximum of 4 video outputs (16/4).
It allows variable speed control of PTZ and dome devices when used
with a CKA4820 and CAC0103 dome converter. Fixed speed control
using the Siemens TTY protocol is a standard feature. The project-spe-
cific characteristics of the system can be set for each process or
sequence using the parameterisation software.
Television standard PAL/CCIR
Camera inputs 16 x BNC‚ 1Vpp‚ 75 Ohm
Monitor output 4 x BNC‚ 1 Vpp‚ 75 Ohm
Camera sequences 1 sequence per monitor output‚
32 defineable cycles
Alarm inputs 16 x
Parameterisation PC 1 x V.24 (RS232C)
Telemetry control 8 x TTY outputs (20 mA current
loop)
Control outputs 8 control outputs (open-collector);
max. 30 V‚ max. 50 mA‚ Relay with 2
floating changeover contacts for
common alarm output
Dimensions (W x H x D) 440 x 87 x 240 mm
Weight 4.70 kg
Power requirements 220 D 240 V AC‚ 50 Hz switchable to
110 D 120 V AC‚ 60 Hz
Power consumption 18 W
2GF2208-8BA
