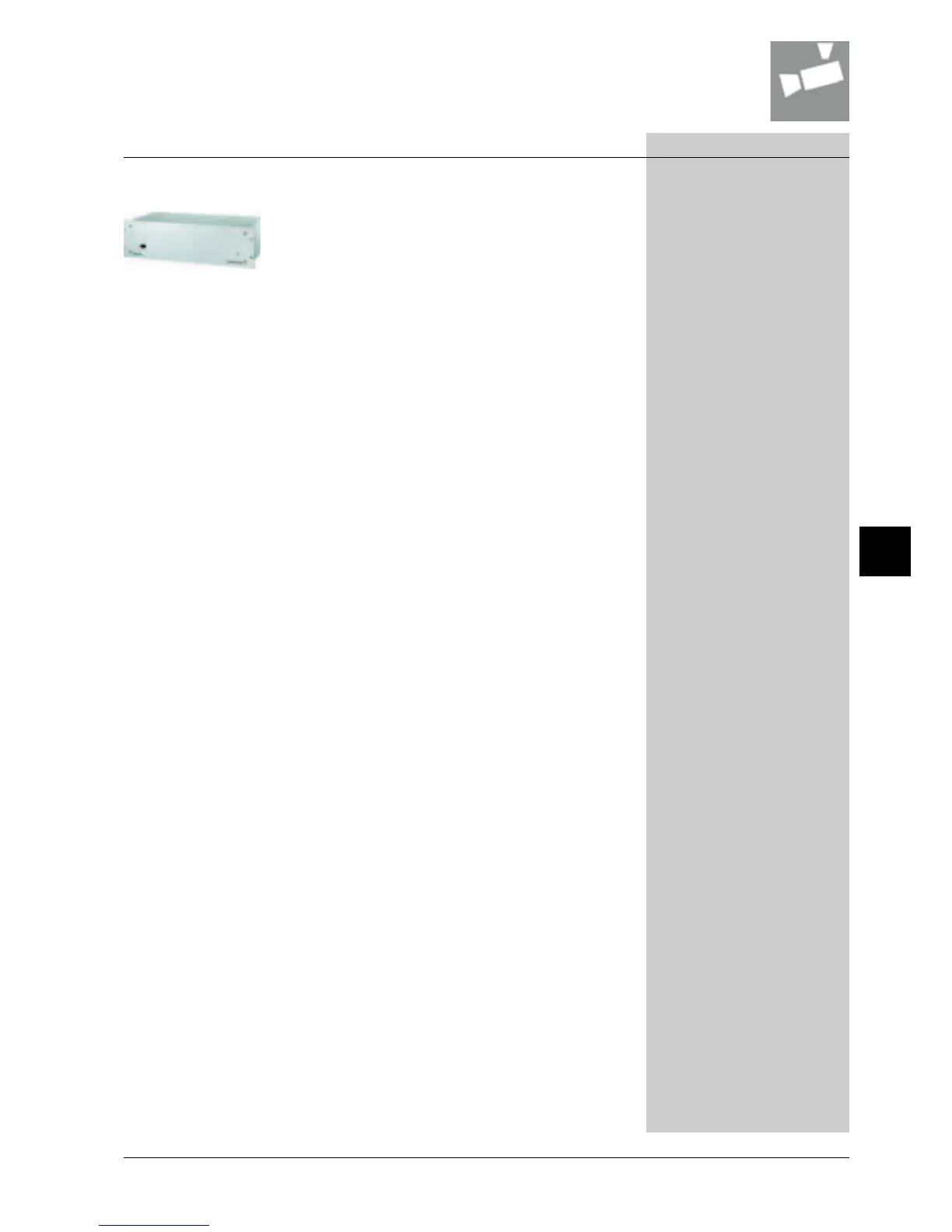

SIMATRIX 648 V3
Compact Video Matrix 16x4‚ Expandable
The SIMATRIX 648 is a video matrix that can be expanded up to a max-
imum of 64 video inputs and 8 video outputs. The SIMATRIX 648 is a
space saving 19'' complete system in a desktop housing‚ commencing
with a basic configuration of 16 video inputs and 4 video outputs. It is
a freely parameterisable and universally applicable video control cen-
tre. The application range extends from the pure matrix function up to
event-controlled centres in conjunction with external alarm contacts or
messages for processing danger‚ alarm and burglary signals (e.g. video
sensor). IVM is an optional user-friendly graphical interface for the
SIMATRIX 648.
Television standard PAL/CCIR
Camera inputs 16 x BNC‚ 1Vpp‚ 75 Ohm‚ max 64
with SIM648-IM
Monitor output 4 x BNC‚ 1 Vpp‚ 75 Ohm‚ max 8 with
SIM648-OM V3
Camera sequences 1 sequence per monitor output‚
32 defineable cycles
Alarm inputs 16 x‚ max 64 with SIM648-IO
Parameterisation PC 1 x V.24 (RS232C)
Telemetry control 8 x TTY outputs (20 mA current
loop)‚ max 32 with SIM648-IO
Control outputs 8 control outputs (open-collector);
max. 30 V‚ max. 50 mA‚ Relay with 2
floating changeover contacts for
common alarm output
Dimensions (W x H x D) 440 x 133 x 210 mm
Weight 4.30 kg
Power requirements 220 D 240 V AC‚ 50 Hz switchable to
110 D 120 V AC‚ 60 Hz
2GF2208-8EA
SIM648-IM
SIMATRIX 648 Extension Module for 16 Camera Inputs
Input module (matrix card 16/8) to expand the SIMATRIX 648 in steps
of 16 video inputs (max 64 video inputs).
Camera inputs 16 video in
Weight 0.24 kg
2GF2208-8AB
SIM648-OM V3
SIMATRIX 648 V3 Extension Module for 4 Monitor Outputs
Output module to expand the SIMATRIX 648 V3 by 4 video outputs with
text overlay/OSD (max 8 video outputs).
Weight 0.03 kg
2GF2208-8EB
SIM648-OM
SIMATRIX 648 Extension Module for 4 Monitor Outputs
Output module to expand the discontinued SIMATRIX 648 by 4 video
outputs with text overlay/OSD (max 8 video outputs).
2GF2208-8AC
SIM648-TM
SIMATRIX 648 Extension Module for 2 Terminal / Keyboard
Interfaces
To expand the SIMATRIX 648 for connection of two further CKA or
SUT48 keyboards (max. 4).
Weight 0.35 kg
2GF2208-8AD
