Siemens CRT

Cameras and Domes
Monochrome Cameras
1-5© Siemens Building Technologies Group
1
Type Order No.
CCBB1345..

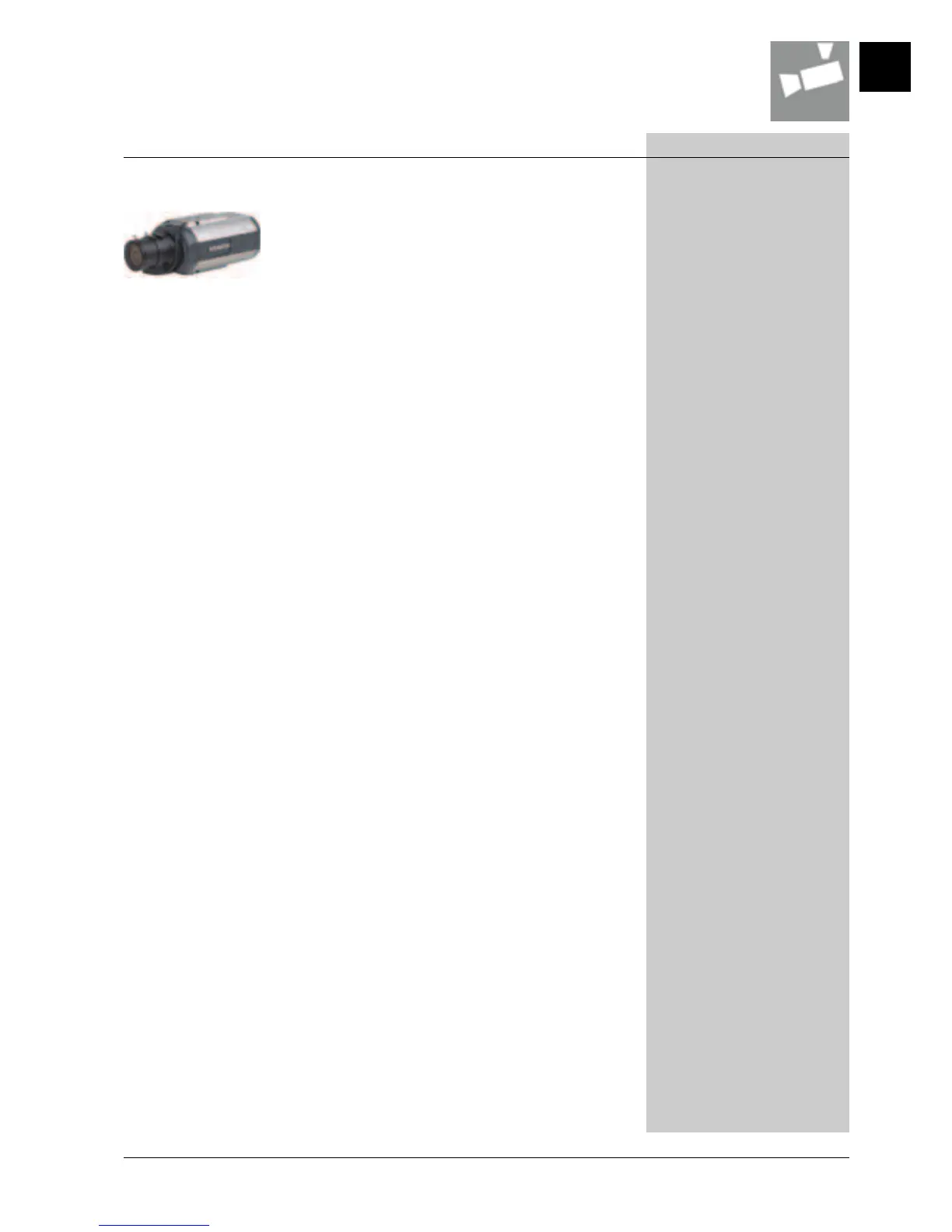

1/3" DSP Monochrome DIP Switch Camera 580 TVL
CCBB1345 is a high resolution monchrome camera using the latest CCD
technology and advanced digital signal processing techniques to pro-
vide crisp‚ aperture corrected images for surveillance applications
requiring high resolution images. Setup is via DIP switches.
Television standard CCIR: 625 lines‚ 50 fields/s‚
50 Hz (vertically)‚
15.625 Hz (horizontally)
Synchronisation Internal: crystal
External: line-lock
Pixels 752 (H) x 582 (V)
Horizontal resolution 580 TV lines
Minimum illumination 0.15 Lux (F1.2‚ AGC 38 dB) at 50 IRE
S/N ratio > 50 dB
Gain control Max. 38 dB
Infrared sensitive Up to 880 nm
Back-light compensation Selectable (ON/OFF)
Lens mount CS (C-mount adapter supplied)
Auto-iris lens control Direct drive or Video drive
Electronic shutter Automatic: 1/50 s - 1/100000 s
Off: 1/50 s
Dimensions (W x H x D) 72 x 63 x 122 mm
Power consumption 3 W
Weight 0.45 kg
2GF1081-8EA
CCBB1345-LC
1/3" DSP Monochrome DIP Switch Camera 580 TVL‚ CCIR‚ 12 V DC /
24 V AC
As CCBB1345.. for technical details‚ but with the following differences:
Power requirements 12 V DC / 24 V AC‚ 50 Hz
Weight 0.45 kg
2GF1083-8GA
CCBB1345-MC
1/3" DSP Monochrome DIP Switch Camera 580 TVL‚ CCIR‚ 90 D
260 V AC
As CCBB1345.. for technical details‚ but with the following differences:
Power requirements 90 V AC D 260 V AC‚ 50 Hz
Weight 0.55 kg
2GF1083-8GA
CCBB1345-LE
1/3" DSP Monochrome DIP Switch Camera 580 TVL‚ EIA‚ 12 V DC /
24 V AC
As CCBB1345.. for technical details‚ but with the following differences:
Television standard EIA: 525 lines‚ 60 fields‚
60 Hz (vertically)‚
15.734 Hz (horizontally)
Pixels 768 (H) x 494 (V)
Electronic shutter Automatic: 1/60 s - 1/100000 s
Off: 1/60 s
Power requirements 12 V DC / 24 V AC‚ 60 Hz
Weight 0.45 kg
2GF1083-8GC
