8 / 84
BA 9142 en 02/2015
1. Technical data
1.1 General technical data
The most important technical data are shown on the rating plate. These data and the contractual
agreements between Siemens and the customer for the gear unit determine the limits of its correct use.
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
⑬

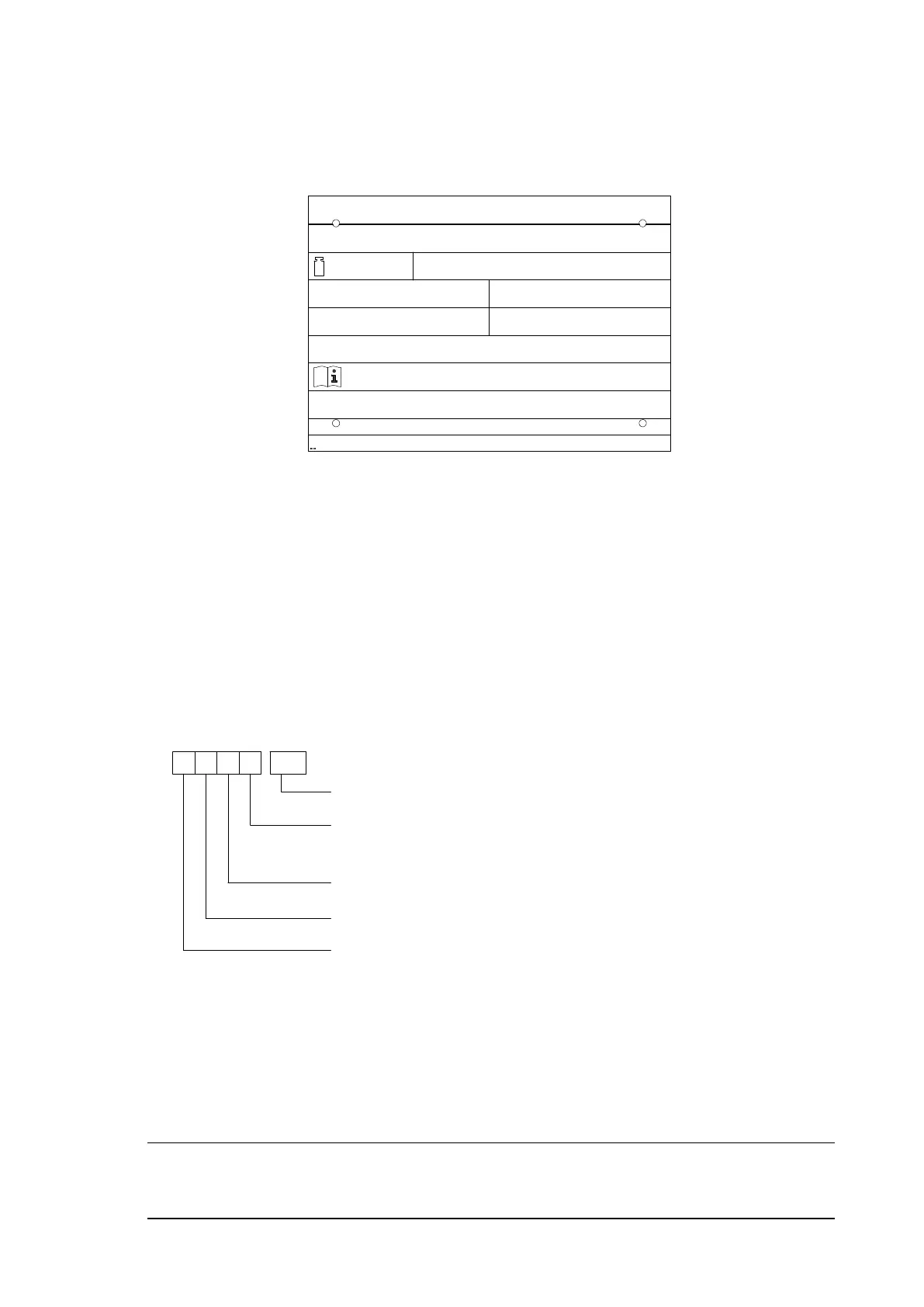

Fig. 1: Rating plate on gear unit
① Company logo
② Serial number
#)
③ Total weight (without oil filling) in kg
④ Special information
⑤ Type, size
*
)
⑥ Power rating P
2
in kW or torque T
2
in Nm
⑦ Rotation speed n
1
in min
-1
⑧ Rotation speed n
2
in min
-1
⑨ Oil data (oil type, oil viscosity, oil quantity)
⑩ Instruction manual numbers
⑪ Special information
⑫ Manufacturer and place of manufacture
⑬ Country of origin
#)
Production site code / Order no. item seq. no. / Year built
*
)
Example
KMP S
546
Size 546......................
Model P = planetary stage.....................
S = helical gear stage
Model P = planetary stage.....................
Area of use M = vertical mill................
Gear unit type K = bevel gear unit..............
For details regarding weight and further technical data, refer to the drawings in the gear unit documentation
and the order-specific data sheet.
1.2 Measuring-surface sound pressure level
A measuring-surface sound pressure level during operation cannot be specified, as the gear unit is
operated without load during the test run on the Siemens test bench.
1.3 List of equipment
Note
All important accessory components are specified in the order specific equipment list including your
technical data.
