5 Physical characteristics
5.1 Mechanical dimensions of MC45

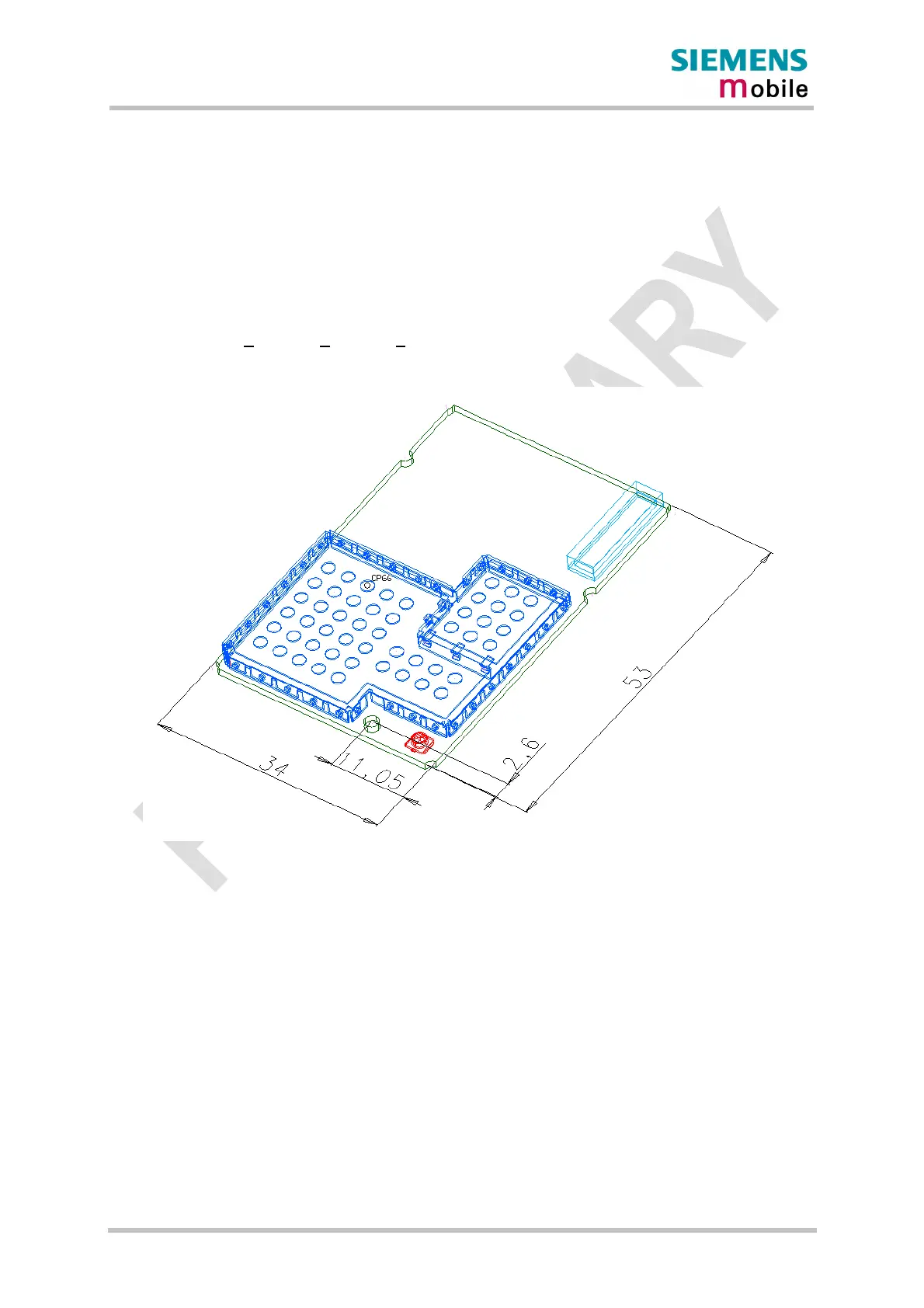

Figure 27 shows the top view on MC45 and provides an overview of the mechanical
dimensions of the board. For further details see Figure 28.
Size: 53 +
0.2 x 34 +0.2 x 3.5+0.3 mm
Weight: 10g
Figure 27: MC45 – top view
