MC45 Hardware Interface Description
P R E L I M I N A R Y
MC45_HD_01_V00.02a Page 73 of 90 12.08.2002
Temperature cycle No damage, cracks and looseness
of parts.
Contact resistance:
Center 25 mW
Outside 15mW
Temperature: +40°C ® 5 to 35°C
® +90°C ® 5 to 35°C
Time: 30 min. ® within 5 min. ®
30 min. within 5 min
Salt spray test No excessive corrosion 48 hours continuous exposure to
5% salt water
Table 24: Material and finish of U.FL-R-SMT connector and recommended plugs
Part Material Finish
Shell Phosphor bronze Silver plating
Male center contact Brass Gold plating
Female center contact Phosphor bronze Gold plating
Insulator Plug: PBT
Receptacle: LCP
Black
Beige
Mating plugs and cables can be chosen from the Hirose U.FL Series. Examples are shown
below and listed in Table 25. For latest product information please contact your Hirose
dealer or visit the Hirose home page, for example http://www.hirose.com
.

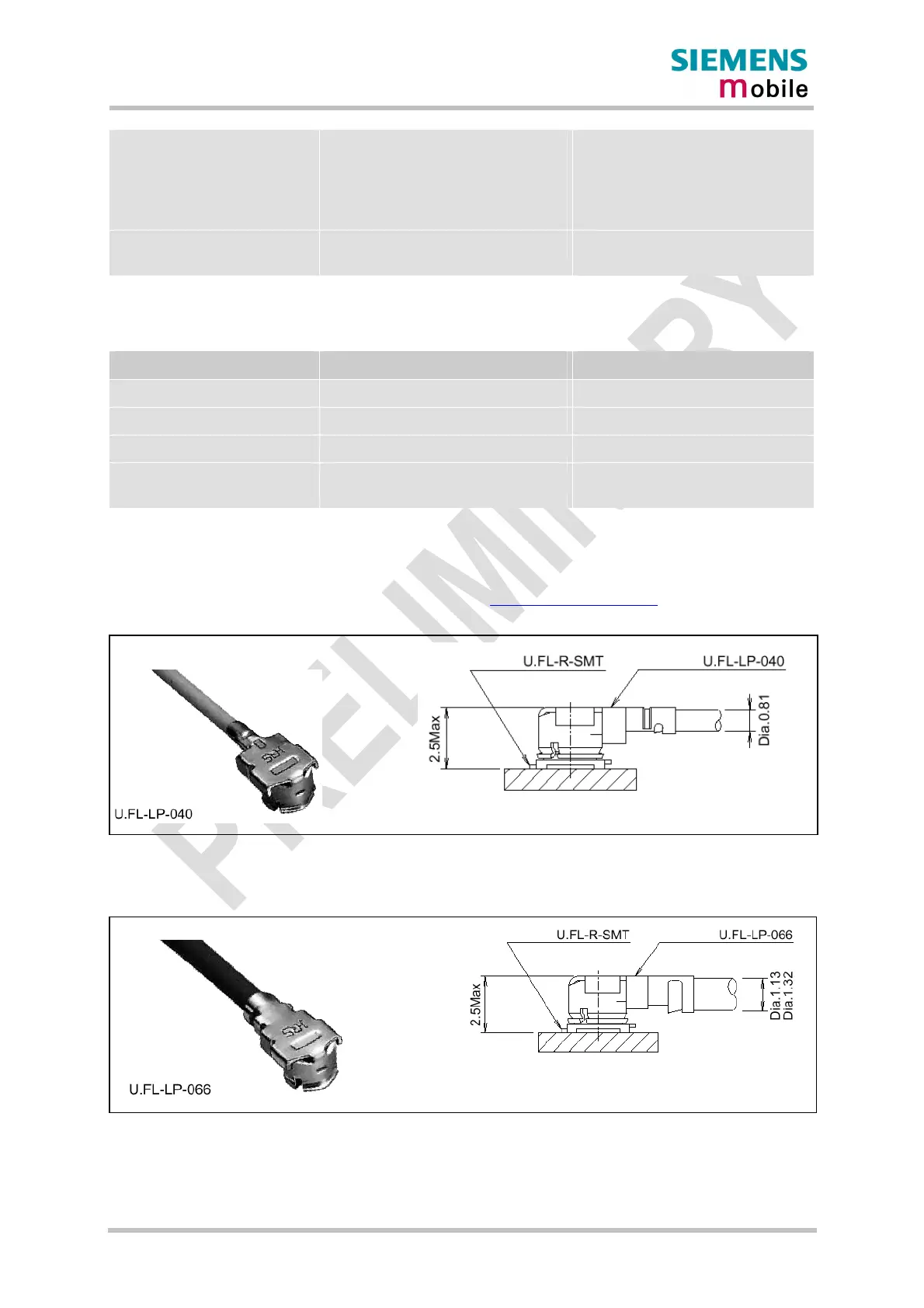

Figure 34: U.FL-R-SMT connector with U.FL-LP-040 plug
Figure 35: U.FL-R-SMT connector with U.FL-LP-066 plug
