In addition to the connectors illustrated above, the U.FL-LP-(V)-040(01) version is offered as
an extremely space saving solution. This plug is intended for use with extra fine cable (up to
Æ 0.81 mm) and minimizes the mating height to 2 mm. See Figure 36 which shows the
Hirose datasheet.

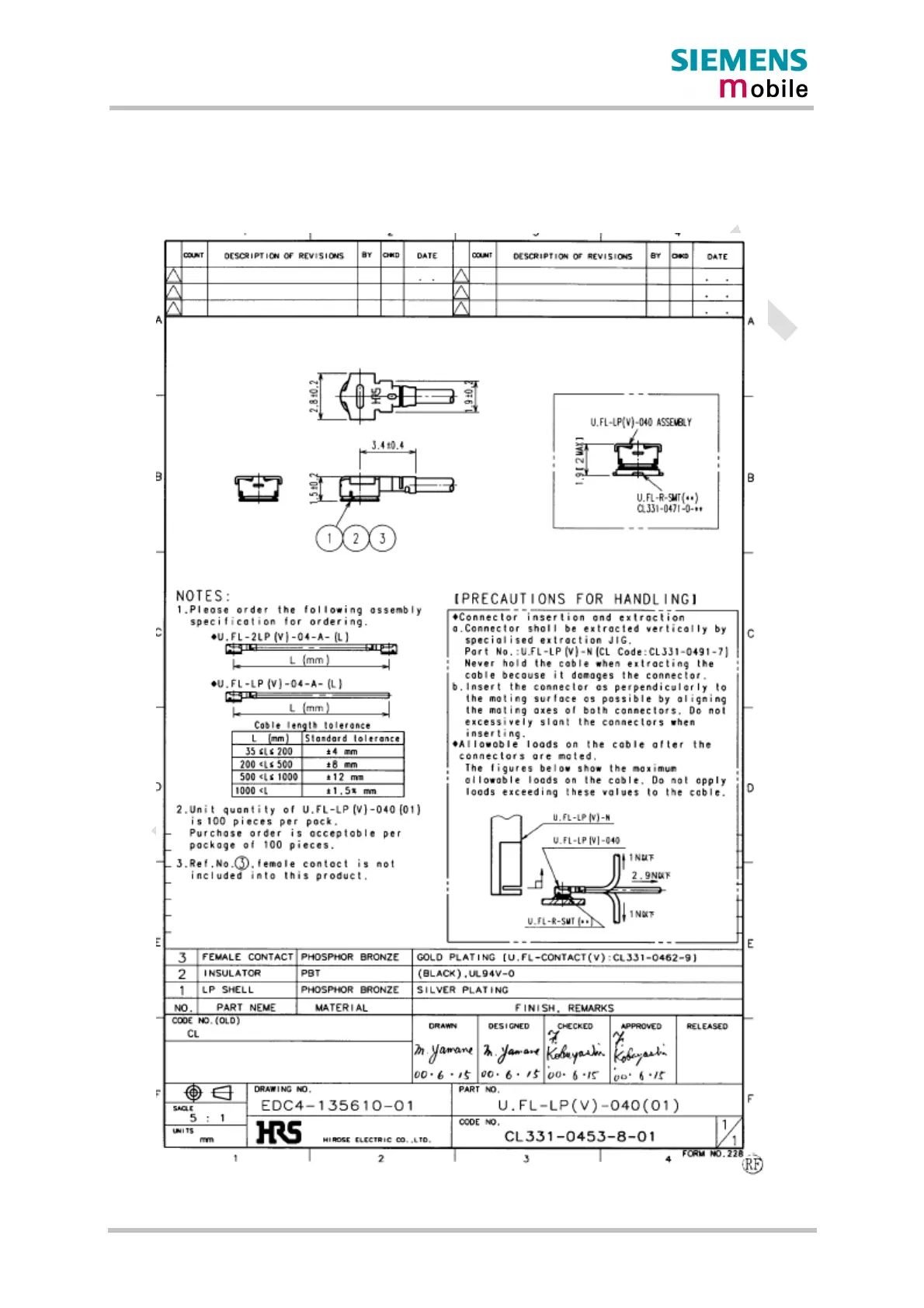

Figure 36: Specifications of U.FL-LP-(V)-040(01) plug
