MC45 Hardware Interface Description
P R E L I M I N A R Y
MC45_HD_01_V00.02a Page 88 of 90 12.08.2002
7 Reference Approval
7.1 Reference Equipment
The Siemens reference setup that will be submitted to type approve MC45 consists of the
following components:
· Siemens MC45 cellular engine
· Development Support Box (DSB45)
· Flex cable (160 mm) from Hirose DF12C receptacle on MC45 to Hirose DF12 connector
on DSB45. Please note that this cable is not included in the scope of delivery of DSB45.
· SIM card reader integrated on the DSB45
· Handset type Votronic HH-SI-30.3/V1.1/0
· PC as MMI
GSM engine
PC
Power supply
SIM
Flex cable
160mm
RS-232
DAI Box
DSB45
Handset
Acoustic tester
Antenna or 50 W
cable to system
simulator
Antenna
DAI cable for
acoustic measuring

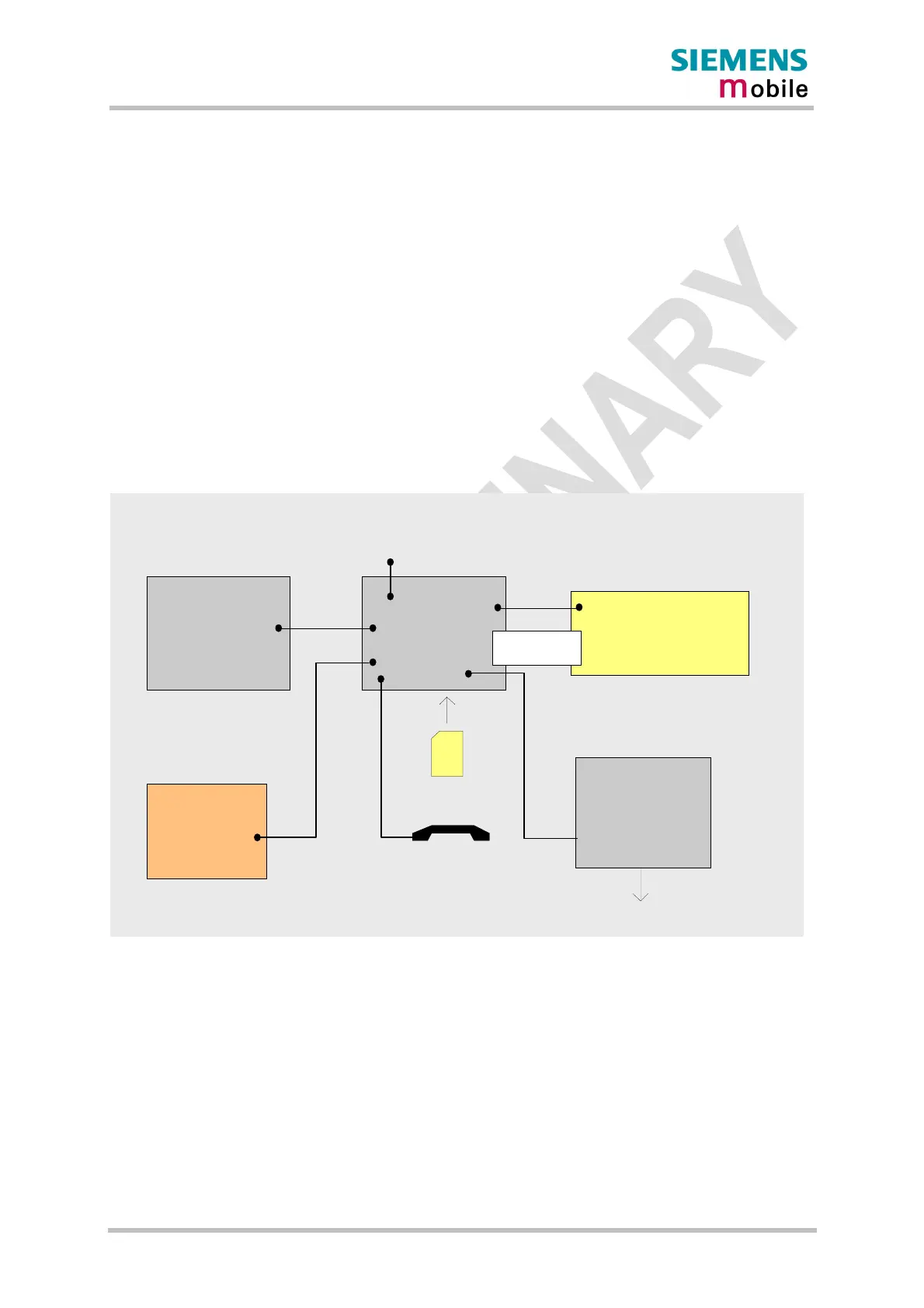

Figure 41: Reference equipment for approval
