MC45 Hardware Interface Description
P R E L I M I N A R Y
MC45_HD_01_V00.02a Page 71 of 90 12.08.2002
5.3.1 Mechanical dimensions of the Hirose DF12 connector

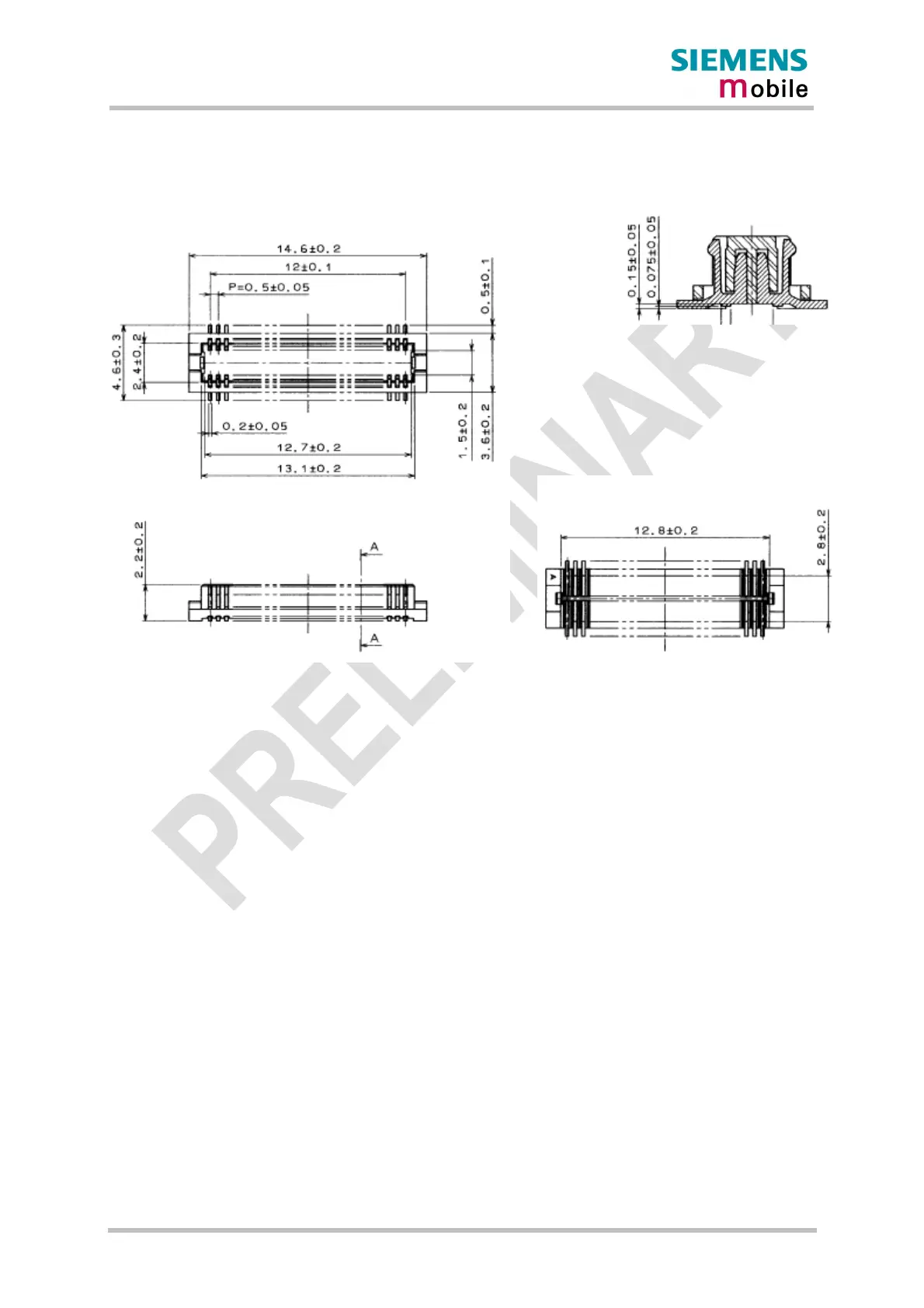

Figure 32: Mechanical dimensions of Hirose DF12 connector
5.3.2 Adapter cabling
The board-to-board connection is primarily intended for direct contact between both
connectors. If this assembly solution does not fit into your application design ensure that the
used adapter cable meets the following requirements:
· Maximum length: 200 mm
· Type of cable: Flexible cable or flexible printed circuit board designed to mate with the
Hirose receptacle and headers specified above.
The equipment submitted for type approving the Siemens reference setup of MC45 includes
a 160mm adapter cable. See Chapter 7.1.
