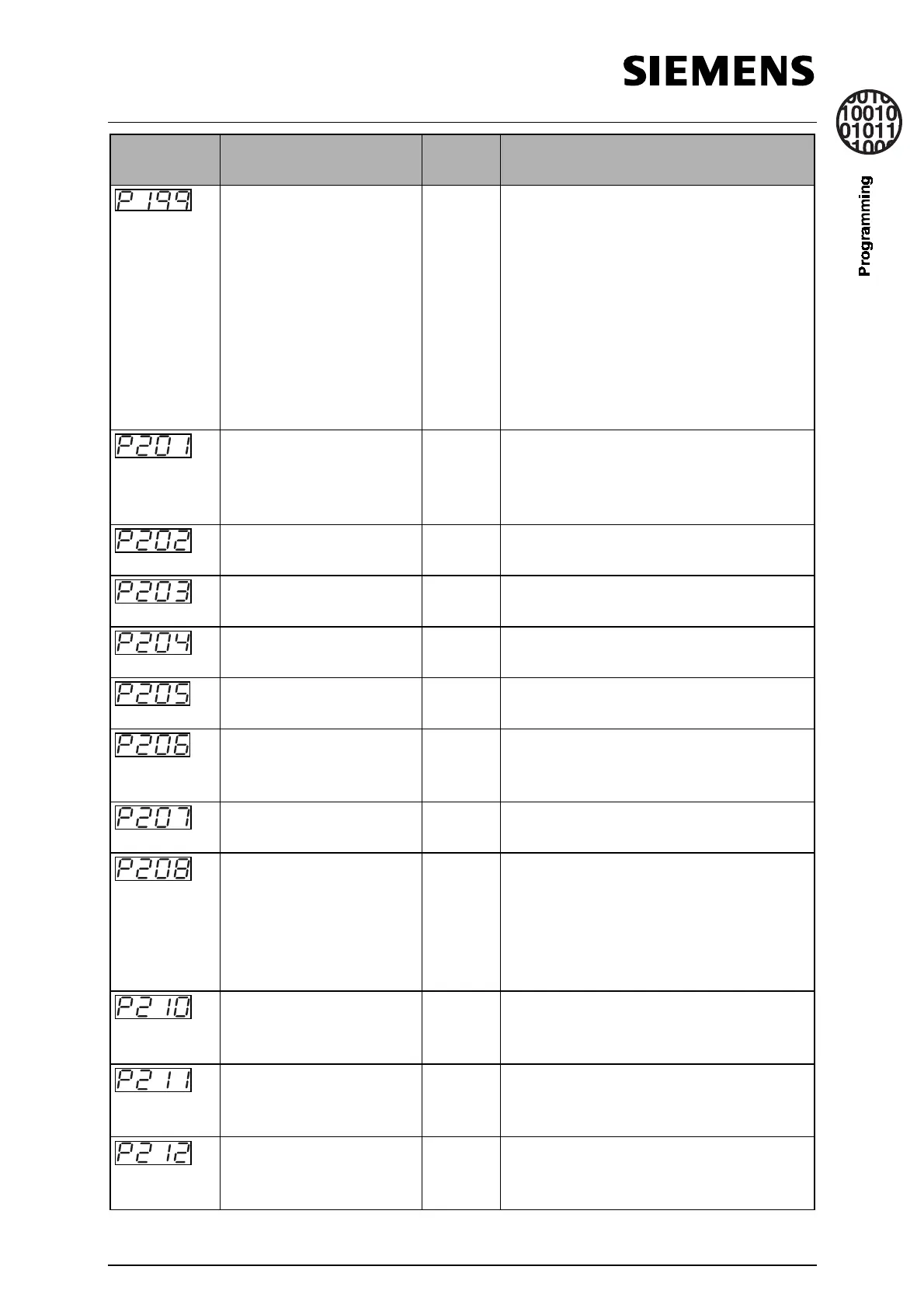

ECO REFERENCE MANUAL
13-27
Parameter Function Range
[default]
Description / Notes
Access to expert mode 0 or 1 This value enables or disables access to
Expert mode parameters.
0 = Normal mode parameter values only
can be changed.
1 = Expert mode parameter values can
be changed in addition to the Normal mode
parameters.
It is possible to reset all parameter values to
their factory default settings using expert
parameter P944.
PID closed loop mode 0 - 1
[0]
0 = Normal operation (closed loop process
control disabled).
1 = Closed loop process control using
analogue input 2 as feedback.
•
P gain 0.0-999.9
[1.0]
Proportional gain.
•
I gain 0.00-99.9
[0]
Integral gain.
•
D gain 0.0-999.9
[0]
Derivative gain.
•
Integral gain scaling 1 - 2400
[1]
The integral action time is multiplied by this
value
•
Transducer filtering 0 - 255
[0]
0 = Filter off.
1 - 255 = Low pass filtering applied to
transducer.
•
Integral capture range (%) 0 - 100
[100]
Percentage error above which integral term
is reset to zero.
Transducer type 0 - 1
[0]
0 = An increase in motor speed causes an
increase in transducer voltage/current
output.
1 = A increase in motor speed causes an
decrease in transducer voltage/current
output.
Transducer reading (%)
(unscaled)
0.00-
100.00
[-]
Read-only. Value is a percentage of full
scale of the selected signal input
(i.e. 10 V or 20 mA).
•
0% setpoint 0.0 -
100.00
[0.0]
Value of P210 to be maintained for 0%
setpoint.
•
100% setpoint 0.0 -
100.00
[100.00]
Value of P210 to be maintained for 100%
setpoint.
