Siemens MOBILETT Plus HP Installation And Setting Instructions

2 - 1
Siemens-Elema AB SPR8-220.033.03 Page 1 of 12 MOBILETT Plus HP
Solna, Sweden Rev. 02 10.02 SPS-UD
Installation and setting 2
Unpacking, applying warning labels
• Fill in the IVK list or report the IVK components to your responsible uptime service center
(USC).
• Unpack the protractor and place it on a proper place e.g. the column.
• Connect the exposure release cable.
• Mount warning label 60 77 411. Choose appropriate language version and paste it/them
on the Control and display panel according to X, Y / Fig. 1.
• Only in Germany:
Mount label 96 33 645 on the lower arm 50 mm above the link, see Fig. 2.

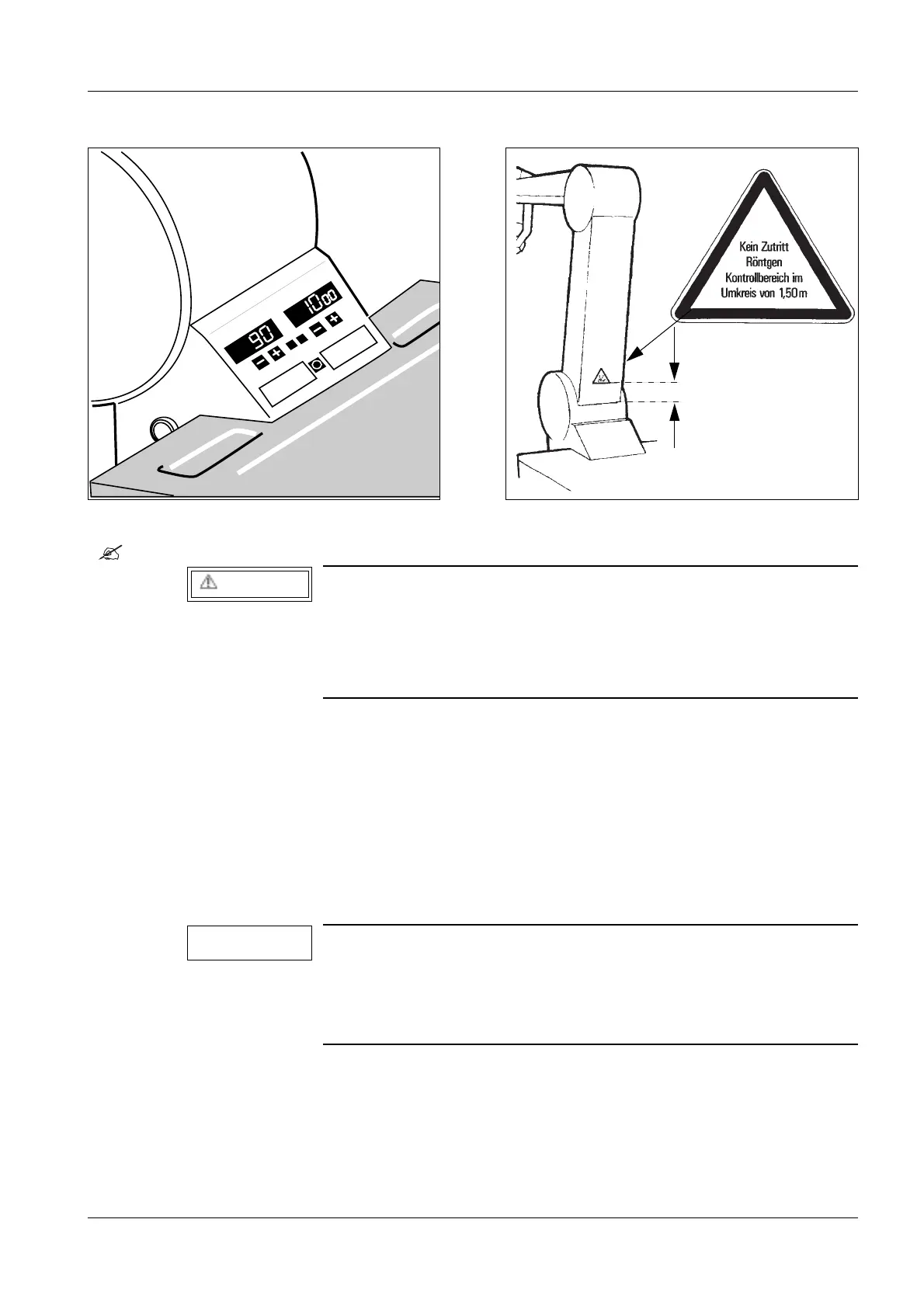

Fig. 1 Fig. 2
Important when unpacking:
Risk for serious damages due to humidity condensation or to
high temperature inside the batteries.
Assure that the unit has established normal room temperature.
The single tank temperature must be >15°C before startup.
If, due to increased operating loads (DIN 6815), there are other
dimensions on site for the control range, appropriate labels can
be ordered:
- Control range: 2.5 m, Part No. 84 14 823
- Control range: 3.5 m, Part No. 31 36 731
MOB00005
X
Y
MOB00401
50 mm
WARNING
NOTE
