Siemens OCM III User Manual

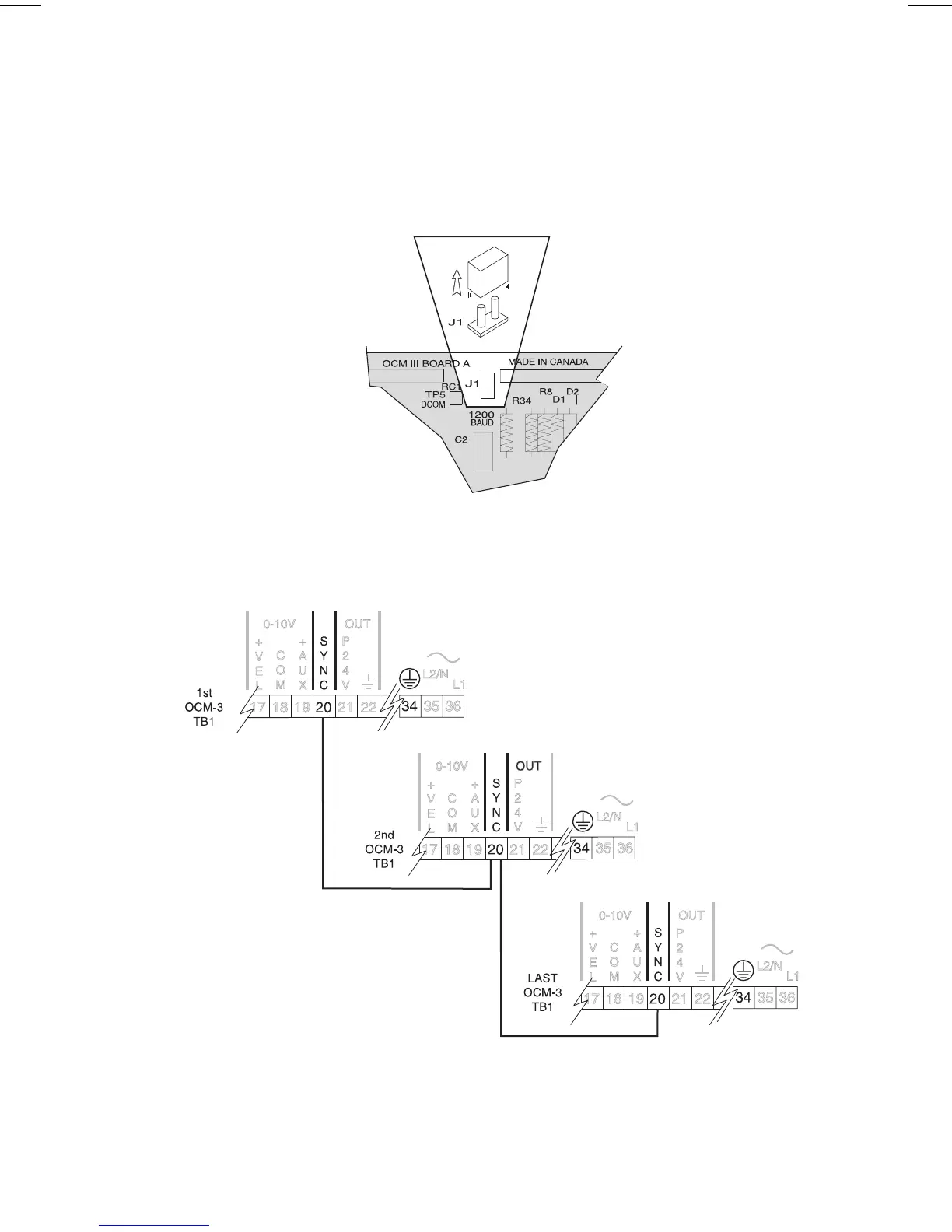

SYNCHRONIZATION
Where two to a maximum of twelve transducers will be sharing a common conduit the
OCM-3s should be synchronized. In order to synchronize OCM-3s:
» remove jumper J1 on board A on all but one OCM-3
» interconnect the SYNC terminal (TB1-20) of all OCM-3s. Insure that
all OCM-3s share a common ground (TB1-34).
18 OCM III 7ML19985AB01
