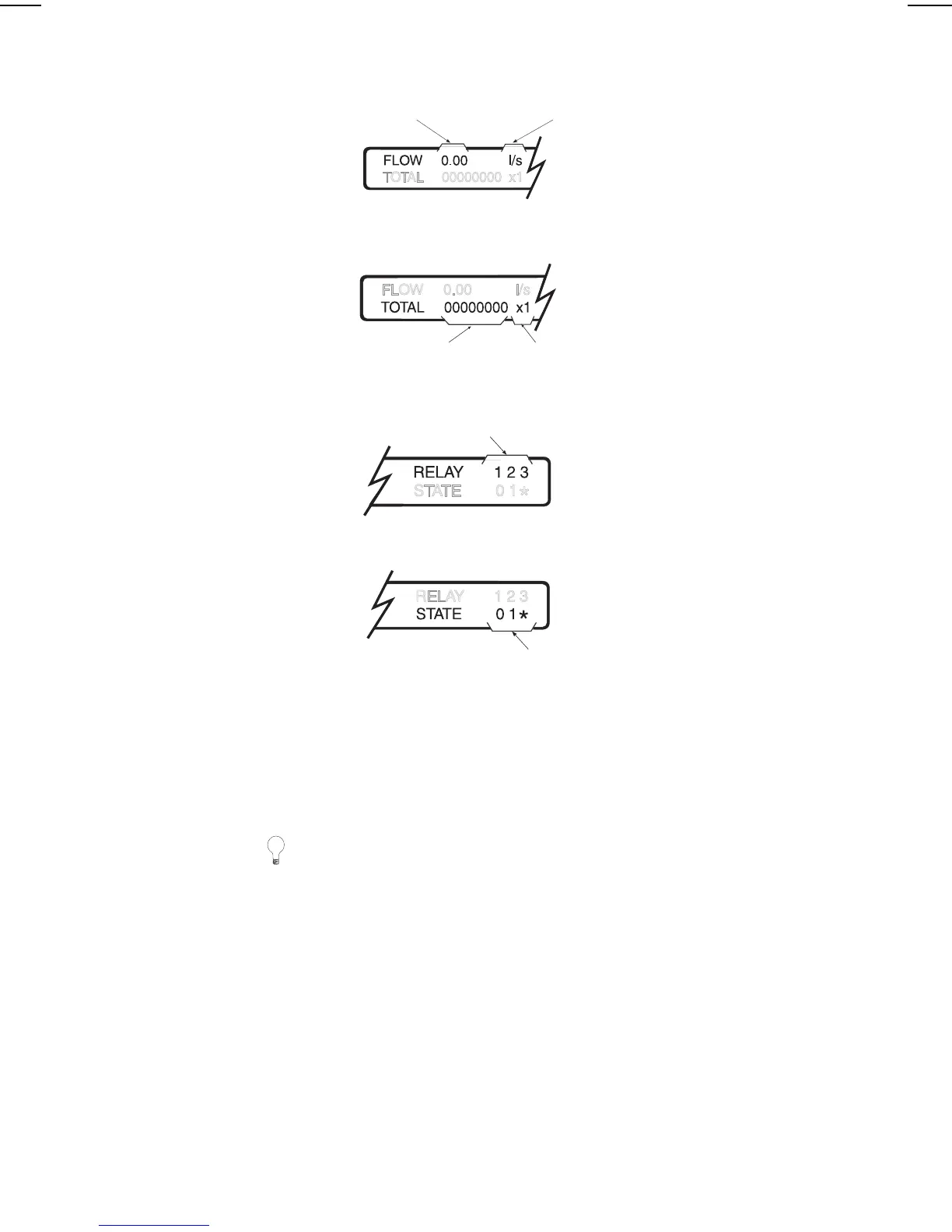

Flow Rate Field
Totalizer Field
Relay / No Echo Field
Status Field
The OCM-3 provides illumination for the LCD for easier viewing of the display.
Illumination can be set (P14) to be normally on or off, or automatic. When automatic is
selected, the lighting will automatically go on when keypad activity is sensed and then
extinguish after 15 seconds of inactivity.
DAMPING
The OCM-3 provides two separate damping functions: reading and mA output. Zero
or no damping allows fastest response while high or 100% provides the slowest
response. The damping is usually set to provide a reliable response without
sacrificing stability.
The reading damping, P13, dampens only the flow rate reading of the ‘Flow and Total’
display F2. The damping selections are: off, low, medium and high. Relay functions
associated with flow rate respond to the dampened reading values.
mA output damping, P27, dampens the change in the mA output. The parameter entry
is in seconds for spanning the 0 to 100% of the mA range selected (P26). Displays
and relay functions associated with the mA output respond to its
dampened value.
flow rate
total
units, P5
multiplier, P32
relay identification
under loss of echo
condition, "NO
ECHO" will
alternately flash
relay status : 0 = relay de-energized
1 = relay energized
* = alarm state (indicated when
flashing)
For battery operation, set display lighting to off or auto.
7ML19985AB01 OCM III 29
